Contact for Pricing

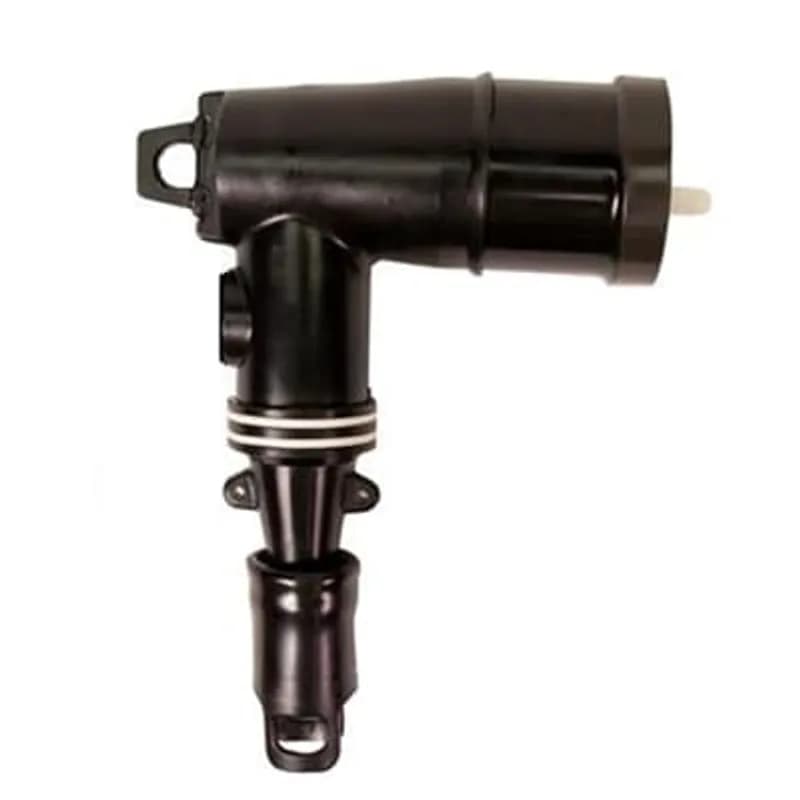

Overview
- 15,000V phase-to-phase rating for medium-voltage distribution
- 200 Amp continuous current capacity
- Sealing jacket for insulation protection in wet/contaminated environments
- Bi-metal compression lug for 1/0-2/0 AWG conductors
- 0.890" to 1.220" cable insulation diameter compatibility
Specifications
Amperage Rating | 200 A |
Application | The 161LRJS is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems |
Color | Black |
Conductor Range | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
Connection | Compression |
Connection Type | Loadbreak Elbow |
Current Rating | 200 A |
Environmental Conditions | Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water |
Insulation | True |
Material | Bi-Metal |
Material | Housing - EPDM-Rubber |
Poles | 1P |
Series | 161LRJS |
Size | Cable Insulation Diameter: 0.890-1.220 inch |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Built in Cable Jacket Seal |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector and Jacket Seal |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
162LRJSB5240-CS782C
15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter. Wire Size 1/0 Stranded/Compressed, 2/0 Solid/Compact, 53.49 mm2. Bi-Metal Compression Lug. ANSI/IEEE Standard 386. Includes Elbow Connector Housing, Compression Lug, Probe, Lubricant, V.D Cap-Peroxide, Butyl Auto Tape, Contact Adapter Ring, Crimp Chart, Installation Instructions. Boxed Individually.
K656CY-J0220
15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2 or Compacted Solid #1.
756LR-N0320
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size kcmil Compressed Stranded 450 /Compacted Solid 500/550.
K656I-J0220
15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2 or Compacted Solid #1.K656CY-H0270-SG3
600 Amp, 15/25KV, Separable Wye Joint Package, 3-Way with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring Included.
655CETP-L0360-DRG
600 Amp, 15kV, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit, No Test Point, Aluminum, Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.
K655LR-H2220
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Copper Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size Compressed/Stranded #2 AWG or Compact/Solid #1 AWG.Frequently Asked Questions
Is the product ANSI certified?
Yes, the product holds ANSI certification.
What industry standards does the product meet?
The enhanced Elastimold 200 amp loadbreak elbow is IEEE 386 compliant.
What is the expected operational ease and stick resistance?
It offers lifetime ease of operation and remains non-stick when used with Elastimold bushings.
Does the elbow prevent sticking with bushings?
Yes, it features a no-stick interface when used with Elastimold bushings, which has been NEETRAC tested.
What certifications does the product have?
The enhanced Elastimold 200 amp loadbreak elbow has Rural Utilities Service (RUS) acceptance from the USDA, authorizing its use in rural infrastructure construction and improvements.
What are the current and voltage ratings?
The product is a 200 amp loadbreak elbow designed for 15 kV and 25 kV applications.
Does the elbow prevent sticking with bushings?
Yes, it features a no-stick interface when used with Elastimold bushings, which has been NEETRAC tested.
What are the current and voltage ratings?
The product is a 200 amp loadbreak elbow designed for 15 kV and 25 kV applications.
What certifications does the product have?
The enhanced Elastimold 200 amp loadbreak elbow has Rural Utilities Service (RUS) acceptance from the USDA, authorizing its use in rural infrastructure construction and improvements.
What is the expected operational ease and stick resistance?
It offers lifetime ease of operation and remains non-stick when used with Elastimold bushings.
How to Install 161LRJS/162LRJS Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the installation and assembly of 161LRJS and 162LRJS Loadbreak Elbow Connectors with Jacket Seal, including cable preparation and connection procedures for UD cable.
Estimated time: 1h 30m
Tools needed:
Probe Wrench, Crimp tool, Wire brush, Hotstick, Voltage sensing device (for 162LRJS test point)
Supplies needed:
Elbow Connector Housing, Compression Lug, Probe, Lubricant (Do Not Substitute), Mastic strips, Vinyl tape, Copper wire (No. 14 AWG / 2.5mm or equivalent), Appropriate connector (for neutral wires)
- Perform Pre-Installation Checks
Inspect the package contents to ensure they are complete and undamaged. Verify all components for proper fit with the cable and/or mating products. Check the probe threads by threading the probe into the compression lug; if resistance is encountered, check for damage and replace the component. Read the entire installation instructions before starting and have all required tools at hand, maintaining cleanliness throughout the procedure.
- Prepare Test Point (162LRJS Only)
If using the 162LRJS model and the test point cap is not installed, lubricate the cap and the test point, then install the cap securely.
- Train Cable and Cut to Length
Train the cable to ensure sufficient slack for ease of operation. Provide an extra length of concentric neutral wires or grounding braid wire (24-26 inches beyond the bushing centerline) to facilitate connection to the tank ground. Unwrap the neutral wires back past the bushing centerline. Cut the excess cable squarely at the centerline of the bushing.
- Prepare Cable Jacket and Neutral Wires
Wrap one strip of mastic, stretching slightly, around the cable jacket. Bend all neutral wires straight back over the mastic and along the cable, pressing them into the mastic. Wrap a second strip of mastic completely around the outer jacket, overlapping the neutral wires imbedded into the first mastic strip. Use a third strip of mastic if needed to build up the outer diameter in the area of the first mastic location. Cover all mastic with vinyl tape.
- Prepare Cable Insulation and Conductor
Remove the insulation shield and insulation from the cable end, cutting squarely and taking care not to nick the conductor. Wire brush bare aluminum conductors immediately and install the compression lug. Rotate the lug to spread inhibitor. Position the compression lug so the contact threaded hole aligns with the bushing bore. Crimp the lug starting at the crimp line mark, rotating 180 degrees for each successive crimp. Carefully wipe excessive inhibitor from the outside of the lug and cable.
- Bevel Insulation and Clean
Remove the insulation shield as indicated by the cable cut back template. Bevel the insulation end by 1/8 inch maximum. Thoroughly clean the insulation to remove all traces of conductive residue.
- Assemble Elbow Housing onto Cable
Lubricate the cable insulation and the inside of the elbow housing with the lubricant supplied; DO NOT SUBSTITUTE other lubricants as they may be harmful. Keep the insulation clean of dirt and grime. Slide the elbow connector onto the cable with a back-and-forth twisting motion. Wipe off all excess lubricant.
- Align Elbow and Thread Probe
Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, taking care not to cross-thread. The probe must turn freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends.
- Connect Concentric Neutral
Pull the hood over the concentric neutral seal area on the cable by pulling the tabs and/or rolling the seal down. Insert one end of a separate copper wire (No. 14 AWG / 2.5mm) or equivalent through the grounding eye on the elbow, twisting tightly without damaging the eye. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack in the wires for elbow operation.
- Lubricate for Connection (Safety Warning)
Lubricate the receptacle portion of the elbow connector and the mating bushing with the lubricant supplied. LUBRICATE ONLY IF THE TRANSFORMER AND ELBOW ARE KNOWN TO BE DE-ENERGIZED. Do not operate by hand; use a fully insulated 'hotstick' type tool.
- Perform Voltage Test (162LRJS Only)
If using the 162LRJS, remove the test point cap with a hotstick, peeling it off at an angle rather than pulling directly. WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Do not use conventional voltage measuring equipment. Follow the manufacturer's directions for the meter used and test with a suitable sensing device made for capacitive test points. Contamination or incorrect equipment can provide a false 'no voltage' indication; treat the elbow as energized until confirmed by other means. After testing, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
