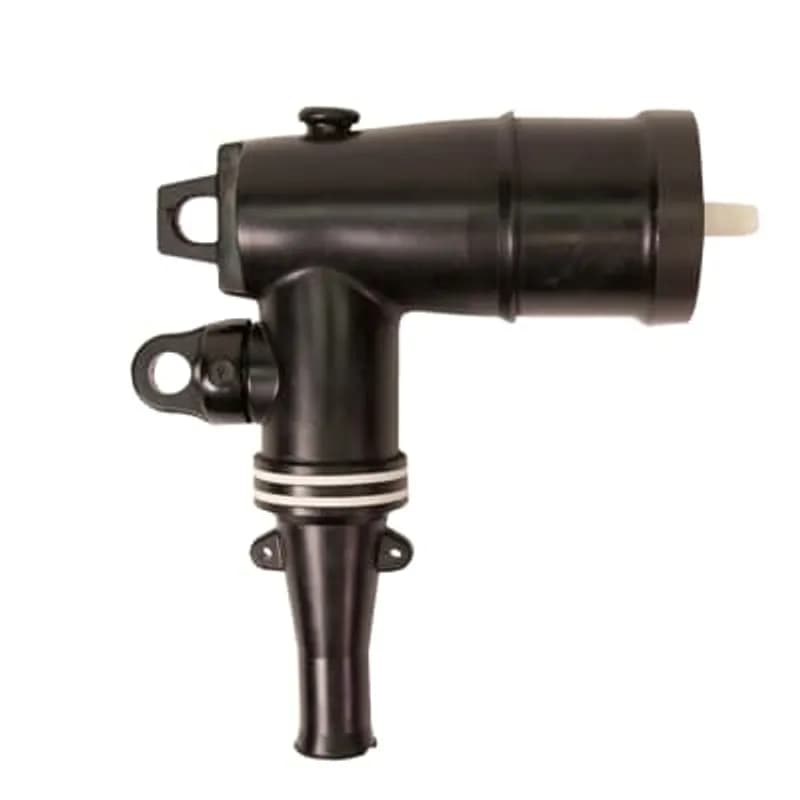

ABB Installation Products 162LR-A-5250 15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .575 inch - .740 Inch Cable…
UPC: 075114186292
Contact for Pricing
Minimum Qty: 15
Multiplier: 15
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV voltage rating with 200A current capacity
- Bi-metal compression lug for 2/0 AWG stranded wire
- Loadbreak design enables safe hot-stick operation under load
- Integrated test point for voltage verification without disconnection
- Compatible with cable insulation diameters from 0.575 to 0.740 inches
Specifications
Amperage Rating | 200 A |
Application | The 162LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems |
Color | Black |
Conductor Range | 2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG |
Environmental Conditions | Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water |
Insulation | True |
Material | Housing - EPDM-Rubber |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Non-Corrosive Capacitive Test Point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector with Test Point |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
162LR-B5250-SG3
200 Amp, 15kV, Loadbreak Elbow Connector, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43. 200ECS-G3 Jacket Seal and Grounding Kit Included.162LR-A-5230
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .575 inch - .740 Inch Cable Insulation Diameter, #1 Stranded Wire Size, Bi-Metal Compression Lug162LR-A-5220
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .575 inch - .740 Inch Cable Insulation Diameter, #2 Stranded Wire Size, Bi-Metal Compression Lug162LR-A-5240
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .575 inch - .740 Inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug162LR-A-5210
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .575 inch - .740 Inch Cable Insulation Diameter, #3 Stranded Wire Size, Bi-Metal Compression Lug
162LR-A-5220-S
200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.575 inch to 0.740 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62. 200ECS Jacket Seal Included.
755LR-N0320
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550.755LR-M2350
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 600 /Compacted Solid 600.Frequently Asked Questions
What cable insulation diameter does this connector support?
The connector supports cable insulation diameters ranging from 0.575 inches to 0.740 inches.
What wire size is compatible with this connector?
This connector is designed for 2/0 AWG stranded wire.
What is the voltage rating of this connector?
The connector has a 15kV voltage rating for medium-voltage applications.
What is the current rating of this connector?
The connector is rated for 200A continuous current.
Is a test point included with this connector?
Yes, the connector features an integrated test point for voltage verification.
Does this connector support loadbreak operation?
Yes, the 162LR-A-5250 is a loadbreak elbow connector, allowing disconnection under load.
What material is used in the compression lug?
The compression lug is made of bi-metal construction for corrosion resistance and durability.
How to Install Elastimold 161LR/162LR Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe installation and preparation of Elastimold 161LR and 162LR Loadbreak Elbow Connectors, including cable preparation, lug installation, elbow assembly, and grounding.
Estimated time: 1h 30m
Tools needed:
Wire strippers, Cable cutting tools, Wire brush, Crimp tool, Probe wrench, Hotstick
Supplies needed:
UD cable, No. 14 AWG (2.5mm) copper wire, Neutral wire connector, Vinyl tape, Cold shrink tube (if using sealing kits), Conductive copper tape (if using specific sealing kits)
- Prepare Cable for Termination
Train the cable to ensure sufficient slack for operation. Refer to the specific instructions in the product manual (IS-1378) for your cable type (non-jacketed concentric neutral, jacketed concentric neutral, jacketed with drain wires, or jacketed copper tape shield) to cut the cable squarely at the bushing centerline and prepare the neutral or ground wires. This includes removing the outer jacket, unwrapping and binding neutral/drain wires, or applying conductive copper tape as required.
- Prepare Conductor and Install Compression Lug
Remove the shield and insulation 2-1/8” (55mm) from the cable end, cutting squarely without nicking the conductor. Wire brush bare aluminum conductors and immediately install the compression lug. Rotate the lug to spread inhibitor and align its threaded hole with the bushing bore. Crimp the lug following the crimp chart, starting at the crimp line and rotating 180 degrees for each successive crimp. Wipe off excess inhibitor from the outside of the lug and cable.
- Prepare Insulation Shield
Remove the insulation shield 6-7/8” (175mm) from the cable end, ensuring a straight, smooth, and squared cut without nicking the insulation. Bevel the insulation end a maximum of 1/8” (5mm). Thoroughly clean the insulation to remove all traces of dirt or excess inhibitor.
- Assemble the Elbow Connector
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; DO NOT SUBSTITUTE. Slide the elbow connector onto the cable using a back-and-forth twisting motion, then wipe off all excess lubricant. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends.
- Ground the Elbow
Insert one end of a separate No. 14 AWG (2.5mm) copper wire or equivalent through the grounding eye on the elbow and twist it tightly, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack for elbow operation. If using a cold shrink grounding kit, refer to its specific instructions.
- Connect Elbow to Bushing
DANGER: Confirm that both the transformer and the elbow are de-energized before proceeding. Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. Securely fasten a hotstick to the loadbreak connector pulling eye. Insert the probe tip approximately 2” (50mm) into the bushing, then immediately push the elbow home with a fast, firm, straight motion to engage the internal lock. Do not operate by hand.
