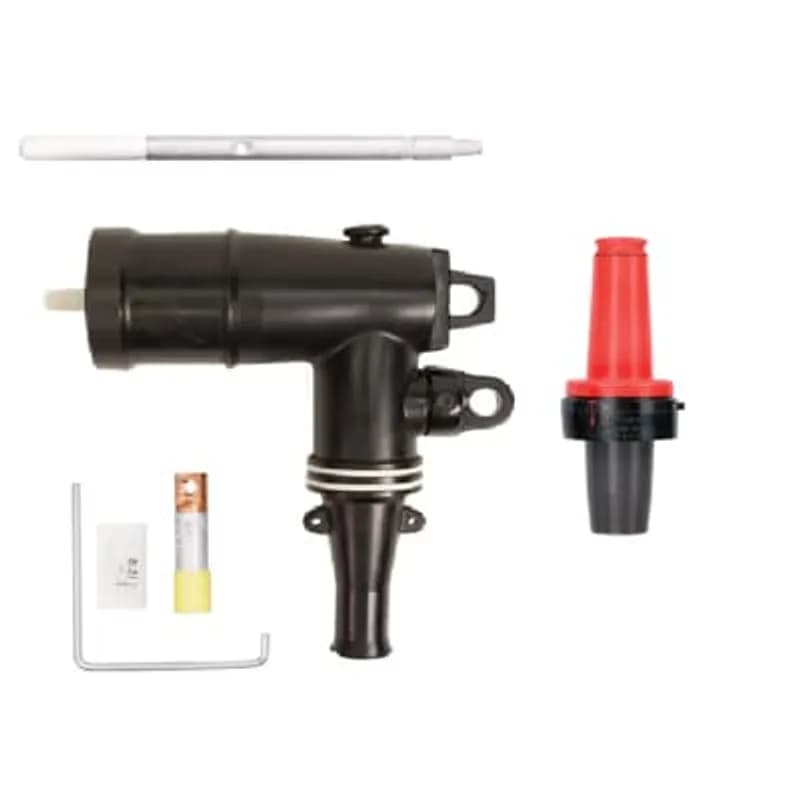

ABB Installation Products 162A4-B5240 15kV, 200 Amp, Loadbreak Elbow-Bushing Insert, Cable Insulation Diameter 0.635 inch to…
UPC: 075114310673
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV voltage rating
- 200 Amp current rating
- Bi-metal compression lug for reliable connection
- Accommodates cable insulation diameters from 0.635" to 0.905"
- Suitable for 1/0 AWG compressed stranded or 2/0 AWG solid conductors
Specifications
Amperage Rating | 200 A |
Application | 15kV 200 Amp |
Color | Black |
Conductor Range | 1/0 to 2/0 AWG |
Connection | Compression |
Environmental Conditions | Fully Submersible |
Insulation | True |
Length | 2.9 in |
Length | 73.66 mm |
Material | Housing - EPDM-Rubber |
Special Features | Non-corrosive capacitive test point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow with Test Point and Bushing |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
655ETP-N0410-DRG
15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter and 0370 style compression lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.162A4-B5250-S
15kV, 200 Amps, Loadbreak, Elbow-Bushing Insert, with Sealing Kit, Cable Insulation Diameter .635 - .905 inches, Bi-Metal Lug, Conductor Size 2/0 Stranded/Compressed or 3/0 Solid/Compact.162A4-B5250
15kV, 200 Amp, Loadbreak Elbow-Bushing Insert, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0
167ELR-7495-5240
15kV, 200 Amps, Loadbreak Repair Elbow Connector without Test Point. Cable Insulation Diameter .740-.950 inches (18.80-24.13mm). Bi-Metal Compression Lug. Conductor Sizse 240 - 1/0 Stranded/Compressed or 2/0 Solid/Compact or 53.49 mmsq. No Sealing Kit. Includes Elbow Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart, and Installation Instructions.
168ELR-7495-5200
15kV 200 Amp Loadbreak Repair Elbow with Test Point. Cable Insulation Diameter 0.740-0.950 inches (18.80-24.13mm). BiMetal Compression Lug, Conductor Size #4 Stranded #3 Solid/Compressed. Includes Elbow Connector Housing, Compression Lug, Probe Wrench, Probe, Tube Lubricant, Installation Instructions and Crimp Chart. ANSI/IEEE Standard 386.
K655L3-J0330
15-25kV, 600 Amp, Deadbreak, 3-Way L-Kit without Test Point, without Seal. 29.49 inch (749.0mm). Cable Insulation Diameter 0.980 - 1.180 inches (24.9-30.0mm). Aluminum Compression Lug. Conductor Size 330 - 500 kcmil Stranded/Compressed or 600 kcmil Solid/Compact.
168FLR3-B5230
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Connector, Conductor size 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact.
656ETP-N-AC04-DRG
15kV, 600 Amp, Elbow Tap Plug, Test and Ground Connector Kit with Test Point. Includes Insulated Cap, Test and Ground Reducing Tap Plug, 600 Series Elbow Housing, Cable Adapter and Tin-Plated Aluminum ShearBolt Lug. Cable Insulation Diameter N - 1.515 to 1.780 inch. Conductor Size AC04 - 750 to 1250 kcmil Stranded/Compressed/Solid/Compact.Frequently Asked Questions
What is the voltage rating of the 162A4 Elbow Connector?
The 162A4 Elbow Connector is rated for 15kV voltage class, with an 8.3kV maximum phase-to-ground operating voltage and 14.4kV maximum phase-to-phase.
What items are included in the 162A4-W5X kit?
The kit includes the elbow connector housing, a bi-metal compression lug, probe, probe wrench, and a bushing insert. It also contains lubricant, a crimp chart, and installation instructions.
Where can I find installation instructions for the 200ECS sealing kit?
For installation instructions for the 200ECS, please see IS-459.
What sealing kit is recommended for Copper Tape Shield Cables?
For Copper Tape Shield Cables, the 200ECSG3 sealing and grounding kit is recommended. Add suffix "-SG3" to the part number for cables with nominal O.D. from .80 in to 1.50 in.
What sealing kit is recommended for Jacketed Concentric Neutral Cables?
For Jacketed Concentric Neutral Cables, the 200ECS sealing kit is recommended. Add suffix "-S" to the part number for cables with nominal O.D. from .80 in to 1.50 in.
Is a sealing and grounding kit required for the 162A4?
For safety purposes, a sealing and grounding kit with the loadbreak elbow is highly recommended.
Where can I find installation instructions for the 162A4?
Installation instructions are included in the kit, identified as IS-1378.
What type of conductors are compatible with the compression lugs?
Copper compression lugs are for copper conductors only. Bi-metal compression lugs are suitable for both copper or aluminum conductors.
What are the fault close and momentary ratings?
The connector has a 10kA Symmetrical 10 Cycles Momentary & Fault Close rating.
What standards does the 162A4 Elbow Connector meet?
The 162A4 Elbow Connector meets ANSI/IEEE Standard 386, Latest Revision.
How to Install 161LR/162LR Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of Elastimold 161LR (without test point) and 162LR (with test point) Loadbreak Elbow Connectors on various UD cables. Ensure all apparatus is de-energized before beginning installation.
Estimated time: 1h 30m
Tools needed:
Cable cutting tool, Wire strippers, Wire brush, Crimp tool, Probe Wrench, Hotstick type tool
Supplies needed:
Elbow Connector Housing, Compression Lug, Probe, Lubricant (supplied, Do Not Substitute), Separate copper wire (No. 14 AWG / 2.5mm), Appropriate connector (for neutral to ground), HV insulated caps or connectors (if replacing shipping covers), Cold shrink tube (optional), Conductive copper tape (optional), Vinyl tape (optional)
- Prepare for Installation and Safety Check
Before starting, ensure all apparatus is de-energized. Inspect all components for damage, proper rating, and compatibility with the cable and mating products. Remove any protective shipping covers and replace with appropriate HV insulated caps or connectors if applicable. Read the entire installation instructions and have all required tools and supplies at hand, maintaining cleanliness throughout the procedure. This product must be installed only by competent personnel trained in high voltage safety practices.
- Train Cable and Perform Initial Jacket/Shield Preparation
Train the cable to ensure adequate slack for operation. Based on your specific cable type (Non-Jacketed Concentric Neutral, Jacketed Concentric Neutral, Jacketed Cable with Drain Wires, or Jacketed Copper Tape Shield Cable), follow the detailed instructions in the full manual for initial jacket and shield removal, and neutral wire management. For example, for Non-Jacketed Concentric Neutral cable, pull 24-36 inches of extra cable beyond the bushing centerline, bind the neutrals 7-3/4 to 8 inches back, unwrap the neutral wire to the binding, and cut the excess cable squarely at the bushing centerline. If using a cold shrink sealing kit, slide the tube onto the cable at this stage.
- Prepare Conductor and Insulation
Remove 2-1/8 inches (55mm) of the shield and insulation from the cable end, cutting squarely and taking care not to nick the conductor. Wire brush bare aluminum conductors immediately and install the compression lug. Rotate the lug to spread the inhibitor, ensuring the contact threaded hole aligns with the bushing bore. Crimp the lug according to the chart provided with the lug, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe any excess inhibitor from the outside of the lug and cable. Remove the insulation shield 6-7/8 inches (175mm) from the lug end, ensuring a straight, smooth, and squared cut without nicks. Bevel the insulation end a maximum of 1/8 inch (5mm). Thoroughly clean the insulation to remove all traces of dirt or excess inhibitor.
- Assemble the Elbow
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant. DO NOT SUBSTITUTE other lubricants, as they may be harmful to this product or its mating product(s). Keep the insulation clean of dirt and grime. Slide the elbow connector onto the cable using a back-and-forth twisting motion, then wipe off all excess lubricant. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring not to cross-thread. The probe should turn freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends.
- Connect Grounding and Neutral Wires
Insert one end of a separate copper wire (No. 14 AWG / 2.5mm or equivalent) through the grounding eye on the elbow and twist it tightly, taking care not to damage the eye. If the elbow was preordered with a ground wire, you may skip this step. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack in the wires for elbow operation. If using a cold shrink grounding kit, refer to its specific instructions for completion.
- Connect Elbow to Bushing
CONFIRM THAT THE TRANSFORMER AND ELBOW ARE DE-ENERGIZED before proceeding with this step. Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. Operate the connection using a full insulated 'hotstick' type tool. DO NOT OPERATE BY HAND. Insert the probe tip approximately 2 inches (50mm) into the bushing, then immediately push the elbow home with a fast, firm, straight motion, using sufficient force to engage the internal lock on the elbow connector and bushing interface.
