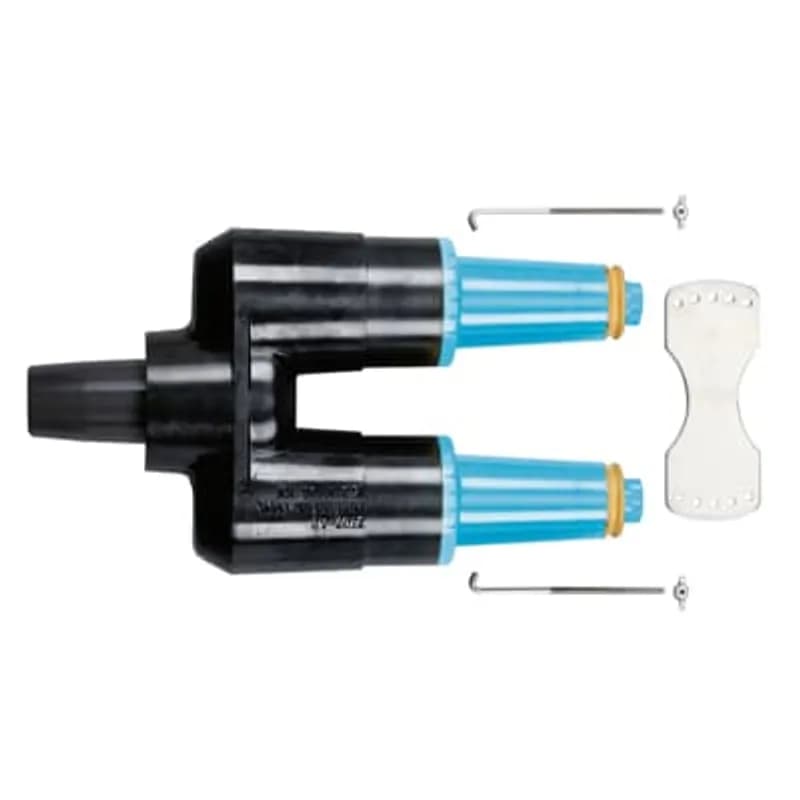

ABB - Installation Products 2702A1-CS2037 - 25kV, 200 Amp, Loadbreak, Feed-Thru-Insert, Fully Rotable for 360 Degree Positioning, includes Bail Assembly to secure Feed-Thru Insert to Bushing Well. Any Customer Modification CS2037 - (4) in bag with No Instruction Sheets, Lube or Bail Plate Prepack.

ABB Installation Products 2702A1-CS2037 25kV, 200 Amp, Loadbreak, Feed-Thru-Insert, Fully Rotable for 360 Degree Positioning…

UPC: 075114338387


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 2702A1-CS2037 is a 25kV, 200 Amp loadbreak feed-thru insert engineered for high-voltage electrical connections in demanding industrial and utility applications. This fully rotable design allows for 360-degree positioning, enabling flexible installation in confined or complex spaces where traditional fixed-position inserts cannot be used. The integrated bail assembly secures the feed-thru insert to the bushing well, maintaining mechanical integrity and electrical contact pressure during operation. Designed to ANSI/IEEE Standard 386, the 2702A1-CS2037 meets critical performance benchmarks including 21.1kV maximum phase-to-ground operating voltage, 150kV BIL impulse withstand, and 50kV AC one-minute withstand. It supports continuous and loadbreak operation at 200 Amps with a 10kA symmetrical momentary and fault close rating for 10 cycles. The unit features peroxide-cured insulation and jacket for enhanced durability in harsh environments. Primary applications include transforming radial-feed transformers into loop-feed units, providing extra tap connections for elbow arrester installations, and interfacing shielded cable with sub-surface transformers, generators, pad-mounted transformers, switchgear, regulators, and reclosers. The black vent ring ensures proper pressure equalization during loadbreak operations. This CS2037 customer modification is supplied as a four-pack, pre-assembled with bail assemblies for immediate deployment. Note that instruction sheets, lubricant, and bail plates are not included and must be sourced separately as required. The product is part of ABB Installation Products' line of high-voltage electrical infrastructure components, optimized for reliability in critical power distribution systems.
  • 25kV voltage class with 200 Amp continuous and loadbreak rating
  • Fully rotable 360° positioning for flexible installation
  • Includes bail assembly for secure bushing well attachment
  • Meets ANSI/IEEE Standard 386 with 150kV BIL impulse withstand
  • Compatible with sub-surface transformers, switchgear, and pad-mounted transformers

Specifications

Amperage Rating
200 A
Application
25kV, 200 Amps
Connection Type
Feed-Thru Insert
Current Rating
200 A
Insulation
True
Length
12 in
Length
304.8 mm
Mounting Type
Bushing well
Series
2702A1
Special Features
ully Rotable for 360 Degree Positioning, includes Bail Assembly to secure Feed-Thru Insert to Bushing Well
Standard
ANSI/IEEE Standard 386
Type
Feed-Thru Insert
Voltage Rating
25 kV
Width
6.9 in
Width
175.26 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0.

K655LR-H0240

600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0.
15kV, 200 Amps, Loadbreak Repair Elbow Connector without Test Point. Cable Insulation Diameter .740-.950 inches (18.80-24.13mm). Bi-Metal Compression Lug. Conductor Sizse 240 - 1/0 Stranded/Compressed or 2/0 Solid/Compact or 53.49 mmsq. No Sealing Kit. Includes Elbow Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart, and Installation Instructions.

167ELR-7495-5240

15kV, 200 Amps, Loadbreak Repair Elbow Connector without Test Point. Cable Insulation Diameter .740-.950 inches (18.80-24.13mm). Bi-Metal Compression Lug. Conductor Sizse 240 - 1/0 Stranded/Compressed or 2/0 Solid/Compact or 53.49 mmsq. No Sealing Kit. Includes Elbow Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart, and Installation Instructions.
15kV 200 Amp Loadbreak Repair Elbow with Test Point. Cable Insulation Diameter 0.740-0.950 inches (18.80-24.13mm). BiMetal Compression Lug, Conductor Size #4 Stranded #3 Solid/Compressed. Includes Elbow Connector Housing, Compression Lug, Probe Wrench, Probe, Tube Lubricant, Installation Instructions and Crimp Chart. ANSI/IEEE Standard 386.

168ELR-7495-5200

15kV 200 Amp Loadbreak Repair Elbow with Test Point. Cable Insulation Diameter 0.740-0.950 inches (18.80-24.13mm). BiMetal Compression Lug, Conductor Size #4 Stranded #3 Solid/Compressed. Includes Elbow Connector Housing, Compression Lug, Probe Wrench, Probe, Tube Lubricant, Installation Instructions and Crimp Chart. ANSI/IEEE Standard 386.
15-25kV, 600 Amp, Deadbreak, 3-Way L-Kit without Test Point, without Seal. 29.49 inch (749.0mm). Cable Insulation Diameter 0.980 - 1.180 inches (24.9-30.0mm). Aluminum Compression Lug. Conductor Size 330 - 500 kcmil Stranded/Compressed or 600 kcmil Solid/Compact.

K655L3-J0330

15-25kV, 600 Amp, Deadbreak, 3-Way L-Kit without Test Point, without Seal. 29.49 inch (749.0mm). Cable Insulation Diameter 0.980 - 1.180 inches (24.9-30.0mm). Aluminum Compression Lug. Conductor Size 330 - 500 kcmil Stranded/Compressed or 600 kcmil Solid/Compact.
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Connector, Conductor size 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact.

168FLR3-B5230

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Connector, Conductor size 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact.
15kV, 600 Amp, Elbow Tap Plug, Test and Ground Connector Kit with Test Point. Includes Insulated Cap, Test and Ground Reducing Tap Plug, 600 Series Elbow Housing, Cable Adapter and Tin-Plated Aluminum ShearBolt Lug. Cable Insulation Diameter N - 1.515 to 1.780 inch. Conductor Size AC04 - 750 to 1250 kcmil Stranded/Compressed/Solid/Compact.

656ETP-N-AC04-DRG

15kV, 600 Amp, Elbow Tap Plug, Test and Ground Connector Kit with Test Point. Includes Insulated Cap, Test and Ground Reducing Tap Plug, 600 Series Elbow Housing, Cable Adapter and Tin-Plated Aluminum ShearBolt Lug. Cable Insulation Diameter N - 1.515 to 1.780 inch. Conductor Size AC04 - 750 to 1250 kcmil Stranded/Compressed/Solid/Compact.
8.3kV, 200 Amp, Loadbreak Fused Elbow Connector with Two Direct Test Points. No Sealing Kit. Small Housing - 8-7/8 inches wide x 16-7/6 inches long. Cable Insulation Diameter - 0.635-0.905 inches. Bi-Metal Connector. #2 Stranded/Compressed or #1 Solid/Compact conductor size.

168AFLR1-B5220

8.3kV, 200 Amp, Loadbreak Fused Elbow Connector with Two Direct Test Points. No Sealing Kit. Small Housing - 8-7/8 inches wide x 16-7/6 inches long. Cable Insulation Diameter - 0.635-0.905 inches. Bi-Metal Connector. #2 Stranded/Compressed or #1 Solid/Compact conductor size.
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Bi-Metal Crimp Connector, Conductor size #4 Stranded/Compressed or #3 Solid/Compact. S - Cold-Shrinkable Jacket Seal.

168FLR1C5200-S

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Bi-Metal Crimp Connector, Conductor size #4 Stranded/Compressed or #3 Solid/Compact. S - Cold-Shrinkable Jacket Seal.

Frequently Asked Questions

What is the voltage rating of this feed-thru insert?

The ABB 2702A1-CS2037 has an operating voltage rating of 25kV.

What is the current capacity of this ABB feed-thru insert?

This feed-thru insert is rated for 200 Amps.

Does this feed-thru insert include a bail assembly?

Yes, the ABB 2702A1-CS2037 includes a bail assembly to secure the insert to the bushing well.

What is included in the CS2037 customer modification?

The CS2037 modification includes four feed-thru inserts in a bag, without instruction sheets, lube, or a bail plate.

What does 'fully rotable' mean for this product?

The fully rotable design allows for 360-degree positioning of the feed-thru insert, offering flexibility during installation.
