Contact for Pricing
Overview

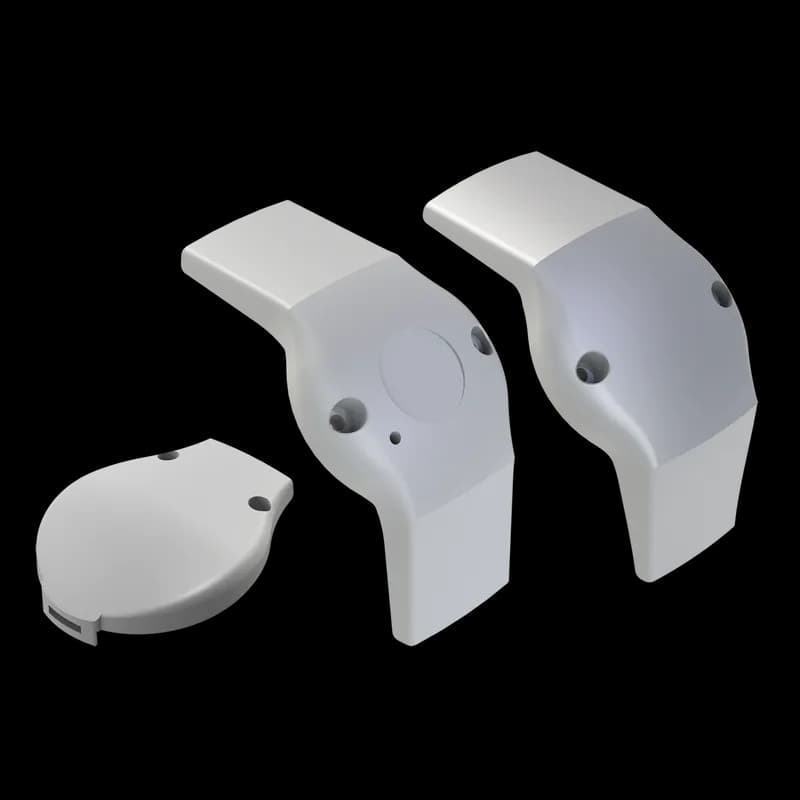

- Gasket, mounting hardware, and post are included
- Assembled Syspend 180 HMI Arm System has a max weight load of 180 lb. (81.6 kg)
- Includes caps, gasket, post, and mounting hardware for complete installation
- Compatible with Syspend 180-Max swing arm system and nVent HMI accessories
- White finish suitable for hygienic and cleanroom environments
Specifications
Application | Controls and Drives |
Color | White Aluminum |
Color Code | RAL 9006 |
Finish | Powder Coated |
Material | Aluminum |
Modification Services | Yes |
Product Family | Syspend 180-Max |
Protection Rating | IP65 |
Type | Syspend 180-Max |
Weight | 0.8 lb |
Weight | 0.26 kg |
Package Dimensions (L x W x H) | 7.3 IN x 4.2 IN x 4.6 IN |
Package Dimensions (L x W x H) | 18.542 cm x 10.668 cm x 11.684 cm |
Package Weight (Imperial) | 0.800 L |
Package Weight (Metric) | 0.363 kg |
How to Install the S1MSLAA Signal Lamp Set
This guide provides step-by-step instructions for installing the S1MSLAA signal lamp set, ensuring proper mounting and electrical connections.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Lock washers, Seals
- Prepare the mounting surface
Ensure the mounting surface is smooth and flat. If the surface is uneven, it may affect the stability and performance of the signal lamp set.
- Mount the signal lamp
Lift the enclosure under the coupling (support necessary) and attach the signal lamp using lock washers and screws. Tighten the screws with a torque of 6 Nm.
- Connect the electrical wiring
Use wire strippers to prepare the wires and connect them to the appropriate terminals on the signal lamp. Verify the connections with a multimeter to ensure proper electrical continuity.
- Install the seal
Adhere the seal to the underside of the signal lamp to prevent moisture ingress. Ensure it is pressed smoothly without any visible gaps.
- Test the installation
Power on the system and test the signal lamp to ensure it operates correctly. Check for any loose connections or issues with the mounting.
Frequently Asked Questions about nVent
What industries and applications are nVent products used for?
nVent products are engineered for critical infrastructure and industrial applications across multiple demanding sectors. Key markets include Construction, Data Centers, Defense, Healthcare, Mining, Oil & Gas Refineries, Power Plants, Rail/Transit, Renewable Energy, Security, Ship Building, Steel Mills, Telecom, and Utilities. Their solutions are designed to withstand extreme environmental conditions, with temperature ranges from -55°C to 105°C and specialized features like UV resistance, oil resistance, and flame resistance.
What environmental ratings do nVent products have?
nVent enclosures feature comprehensive environmental ratings, including UL 508A, CSA, and NEMA Type 1, 2, 3, 4, 4X, 12, and 13 certifications. They are rated IEC 60529 IP66, providing robust protection against dust, water, and corrosion in both indoor and outdoor environments. These products operate effectively in temperatures ranging from -40°F to 266°F, with enhanced UV inhibitors for outdoor weathering and oil-resistant gaskets for superior sealing.
What accessories are available for nVent products?
nVent offers a comprehensive range of accessories across multiple product lines, including EMC accessories like bonding cable clamps and strain reliefs, inline accessories such as lock inserts and mounting brackets, CONCEPT accessories including panel conversion kits and rack-mount angles, and seismic accessories for specialized mounting requirements. Key accessory categories include grounding kits, DIN rail mounting solutions, panel supports, handles, and various mounting hardware compatible with different enclosure types.
What certifications and standards do nVent products comply with?
nVent products meet critical international certifications including UL (United States), CSA (Canada), CE (European Community), and EAC (Russia). Our products are designed to comply with rigorous industrial standards such as NEMA enclosure ratings, IEC 60529 IP ratings, and international safety standards across multiple industrial markets including oil & gas, power, manufacturing, and infrastructure.
What is nVent's warranty policy?
nVent offers a standard 18-month warranty from invoicing date for most automation products, covering defects in workmanship and materials. The warranty requires proper transportation, handling, storage, and installation within specified environmental conditions. Warranty coverage includes repair or replacement at nVent's discretion, with certain conditions such as authorized service repairs and operation within designed capacity limits.
What technical support does nVent offer?
nVent offers comprehensive technical support through multiple global contact centers across North America, South America, Europe, Middle East, India, and Asia. Customers can reach technical experts by phone at regional numbers, with the North American headquarters in Minneapolis, MN providing primary support at +1.763.421.2240. Additionally, nVent provides online support resources through their website, including CAD drawing downloads and an 'Ask The Expert' feature to assist with product technical inquiries.
