Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Overview
- Category 6A performance for 10Gig UTP networks
- Supports 23 AWG solid conductor cable
- Ensures reliable data transmission and signal integrity
- Ideal for data centers and enterprise structured cabling
- Packaged in a convenient 100-piece bundle
Specifications
Application | Unshielded |
Color | Clear |
Depth | 1.6 In. |
Material | Polycarbonate |
Model | 8 Position Plug |
Standard | Exceeds ANSI/TIA Category 6A and ISO Class EA performance requirements when properly terminated to Panduit Category 6A UTP copper cable, Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC-60603-7, Supports PoE, PoE+, and proposed Type 3 and 4 PoE++ applicat |
Type | Modular Plug |
Width | 0.46 In. |
Package Dimensions (L x W x H) | 23 IN x 10.5 IN x 8.45 IN |
Package Weight (Imperial) | 7.98 lbs |

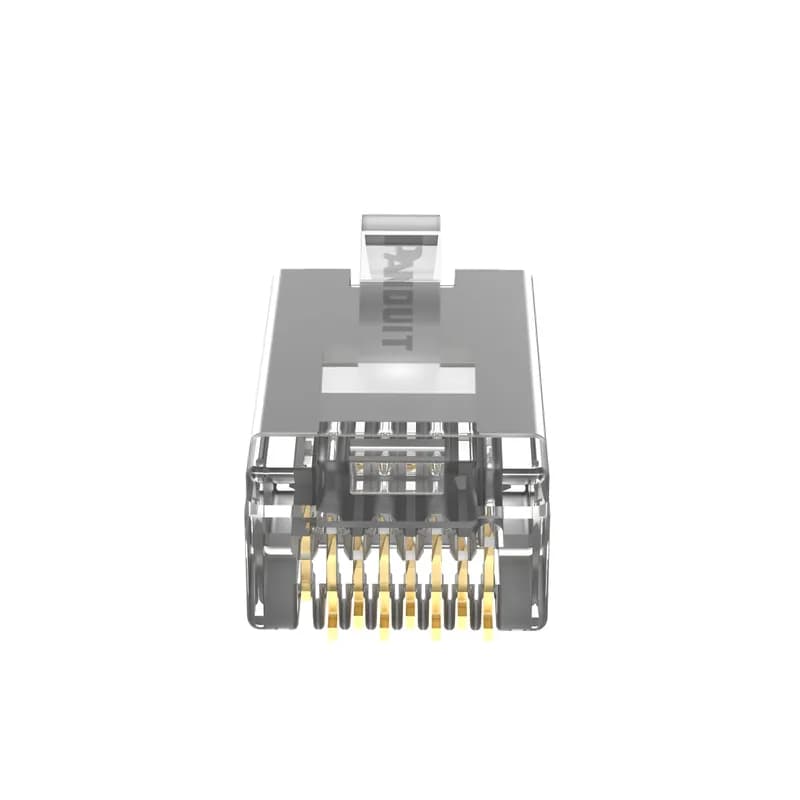

SPS688-C
The Cat 6 UTP modular plug terminates 4-pair, 24-26 AWG, 100 ohm, solid or stranded shielded twisted pair cable with maximum conductor insulation diameter of 0.040 inches (1.02mm) and maximum jacket diameter of 0.250 inches (6.35mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on moves, adds, and changes. This includes 100 per package.
SP688-C
The Cat 6 UTP modular plug terminates 4-pair, 23-24 AWG, 100 ohm, solid or stranded unshielded twisted pair patch cable with maximum conductor insulation diameter of 0.042 inches (1.07mm) and maximum jacket diameter of 0.250 inches (6.35mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on moves, adds, and changes. This includes 100 per package.
SP630-C
The Category 6 UTP Modular Plug, 30 AWG, is used to terminate 4-pair, 30 AWG, UTP twisted-pair cabling.

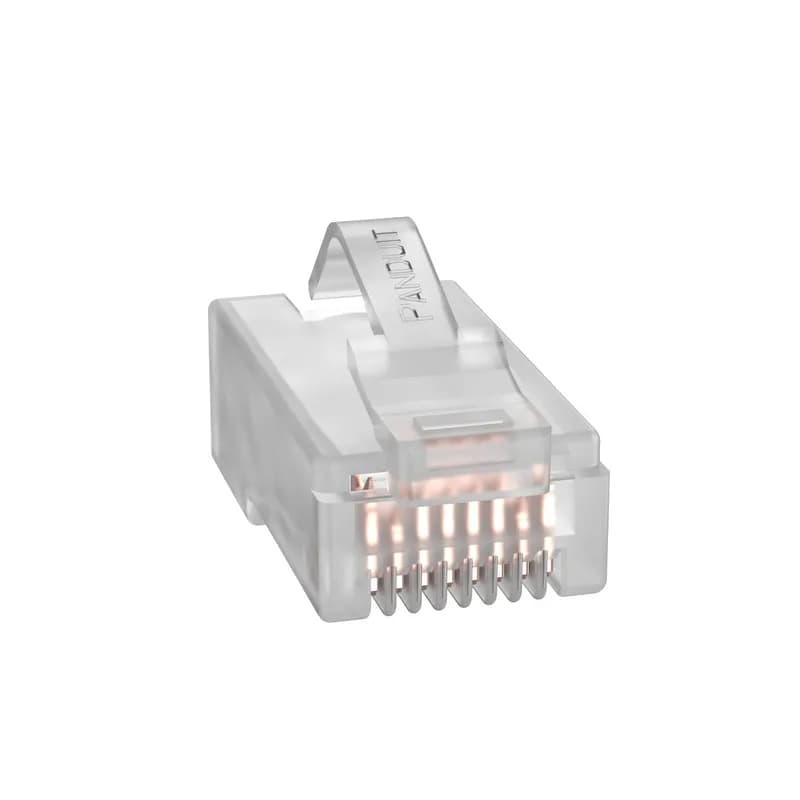

MP528-X
The Cat 5e 28 AWG modular plug terminates 4-pair, 28 AWG, 100 ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.027 inches (0.69mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on moves, adds, and changes. This includes 10 per package.
Frequently Asked Questions
What is the operating temperature range?
The operating temperature range is 14°F to 140°F (-10°C to 60°C).
What is the storage temperature range?
The storage temperature range is 40°F to 158°F (-40°C to 70°C).
What is the maximum jacket diameter for cables?
The maximum jacket diameter is 0.310 inches (7.87mm).
What is the maximum conductor insulation diameter?
The maximum conductor insulation diameter is 0.048 inches (1.22mm).
What types of PoE does this plug support?
The plug supports PoE, PoE+, and proposed Type 3 and 4 PoE++ applications for up to 100 W.
What type of cable is compatible with this plug?
It is compatible with TX6A 10Gig UTP Horizontal Copper Cable.
What are the compliance standards for this product?
It meets ANSI/TIA-1096-A, IEC-60603-7, and exceeds ANSI/TIA Category 6A performance requirements.
What is the conductor diameter range for cables?
The conductor diameter range is 0.040 inches to 0.048 inches (1.02mm to 1.22mm).
What is the IP rating for this product?
The bulkhead connection is rated IP65/IP67 for dust protection and temporary liquid immersion.
How many mating cycles is the plug rated for?
The plug is rated for 2500 mating cycles.
How to Install the SP6X88-C Modular Plug
This guide provides step-by-step instructions for installing the SP6X88-C modular plug using the T568B wiring scheme.
Estimated time: 45m
Tools needed:
Wire stripping tool, Wire snipping tool, Screwdriver
Supplies needed:
Modular plug (SP6X88-C), Cable (Category 6A UTP), Strain relief boot, Strain relief collar, Load bar, Divider
- Prepare the cable
Thread the strain relief boot and collar onto the cable first. Remove 2.5" - 3.0" of the outer jacket from the cable end using a wire stripping tool.
- Arrange conductors
Fan the twisted pairs into respective quadrants, ensuring the brown pair is opposite the orange pair. Insert the divider posts into the cable, aligning the 'V' channel with the green pair.
- Insert conductors into load bar
Guide the conductors into the load bar holes while holding them in the divider. Slide the load bar towards the divider until flush, ensuring it is centered and perpendicular to the cable axis.
- Complete the assembly
Grip and squeeze across the collar arms as the sub-assembly is inserted into the plug housing. Push until the collar locking tabs clear the plug housing pocket. Slide the boot forward and fully seat it onto the strain relief collar.
- Finalize the installation
Use the MPT5-8AS tool to complete the termination. Visually check the plug assembly for proper orientation and ensure there is no gap between the collar and divider.
