Overview
- Directs cooling air from cold aisle to switch intake fans
- Designed for Cisco Catalyst 6880 switch
- Fits in a 3 RU footprint
- Reduces fan power energy consumption by allowing lower fan speeds
- Electrostatic dissipative, flame-retardant materials meet UL94 V- and FAR 25.853 standards
Specifications
Application | Inlet Duct for Cisco 6880 |
Color | Black |
Depth | 22.1 In. |
Size | 3 RU |
Standard | RoHS Compliant |
Type | Air Inlet Duct |
Width | 20.87 In. |
Package Dimensions (L x W x H) | 30 IN x 27 IN x 14.5 IN |
Package Weight (Imperial) | 39.91 lbs |
DIRLC3210S17W
The air inlet duct directs cooling air from the cold aisle into the intake fans of switches. It requires 3 RU above the switch and 2 RU below the switch and is designed for Cisco Catalyst 6807-XL switch.

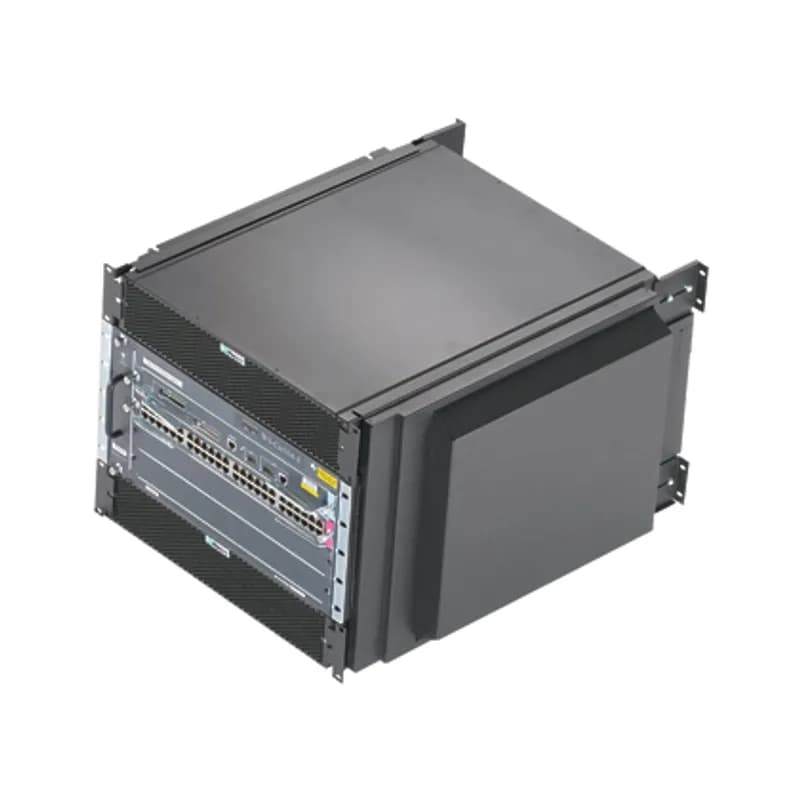

CNLTD52A2
The Net-Direct Air Inlet Duct provides cold airflow directly into Cisco Catalyst 6504-E switch intakes from above, below and the side. Not only does it require no energy to operate, but it also reduces fan power consumption by up to 250W, improving energy efficiency and reliability for increased cost savings. 2RU, Black, 3pc - No blanking panels.
DIRLC2214M21W
The Net-Direct Air Inlet Duct provides cold airflow directly into Cisco Catalyst 6509-E switch intakes from above, below and the side. Not only does it require no energy to operate, but it also reduces fan power consumption by up to 250W, improving energy efficiency and reliability for increased cost savings. 2RU, Black, 3pc - No blanking panels.
DIRBB2007S21W
The air inlet duct directs cooling air from the cold aisle into the intake fans of switches. It fits in a 2 RU footprint and is designed for Cisco Nexus 7004 switch.

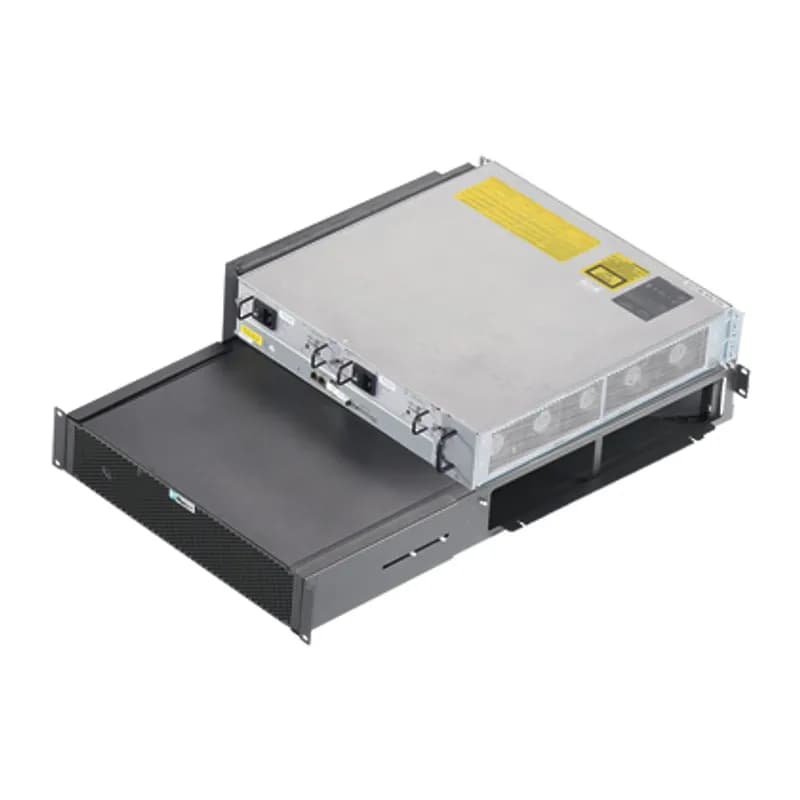

CNLTD21B2
The Net-Direct Air Inlet Duct provides cold airflow directly into Cisco Catalyst 4900M switch intakes from in-line and the side. Not only does it require no energy to operate, but it also reduces fan power consumption by up to 250W, improving energy efficiency and reliability for increased cost savings. 2RU, Black, 2pc - No blanking panels.
FLEX-CM-1UBKIT
The HD Flex Universal Cable Management Bracket features adjustable mounting rails to help route/manage cables vertically or horizontally. The universal bracket supports cable slack as well as manage and route cables on the sides of racks, enclosures, or cabinets. This kit includes two mounting brackets and one strain relief bar.
R2P6S
The 2-Post rack provides a reliable foundation for mounting telecommunications and data center equipment. The 84 inch tall rack accepts 19-inch wide equipment with mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering from the bottom up. A range of cable managers and accessories work with the rack. The 6-inch deep channel rack is UL listed for 1,500 pounds and is made of steel. The rack is 45 RU and black.

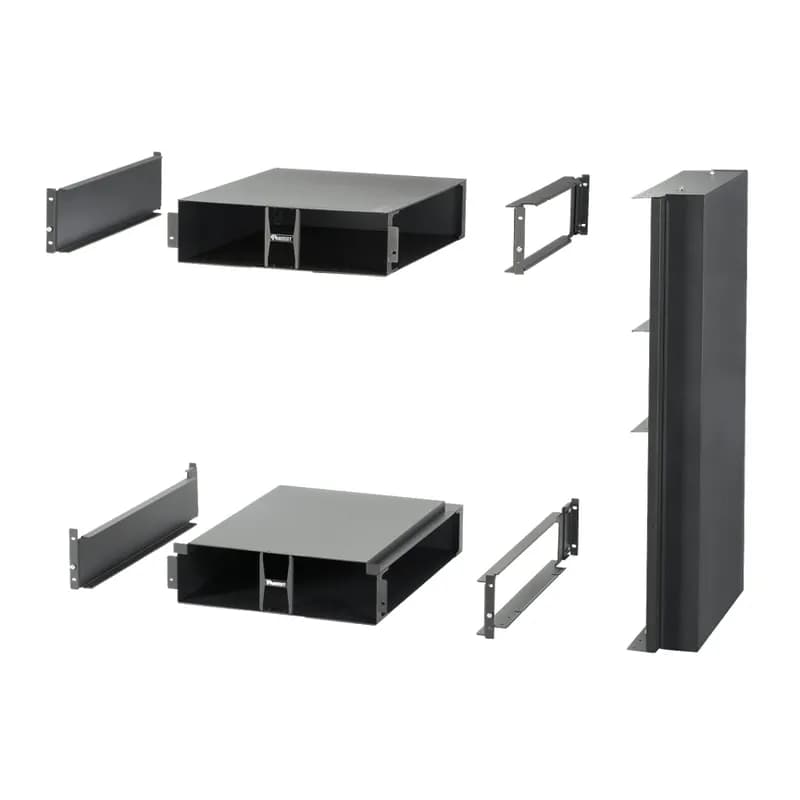

CNLTD142A3
This Net-Direct Air Inlet Duct provides cold airflow directly into Cisco Nexus 7009 switch intakes from above and below. Not only does it require no energy to operate, but it also reduces fan power consumption by up to 250W, improving energy efficiency and reliability for increased cost savings. 3RU, Black, 2pc - No blanking panels.

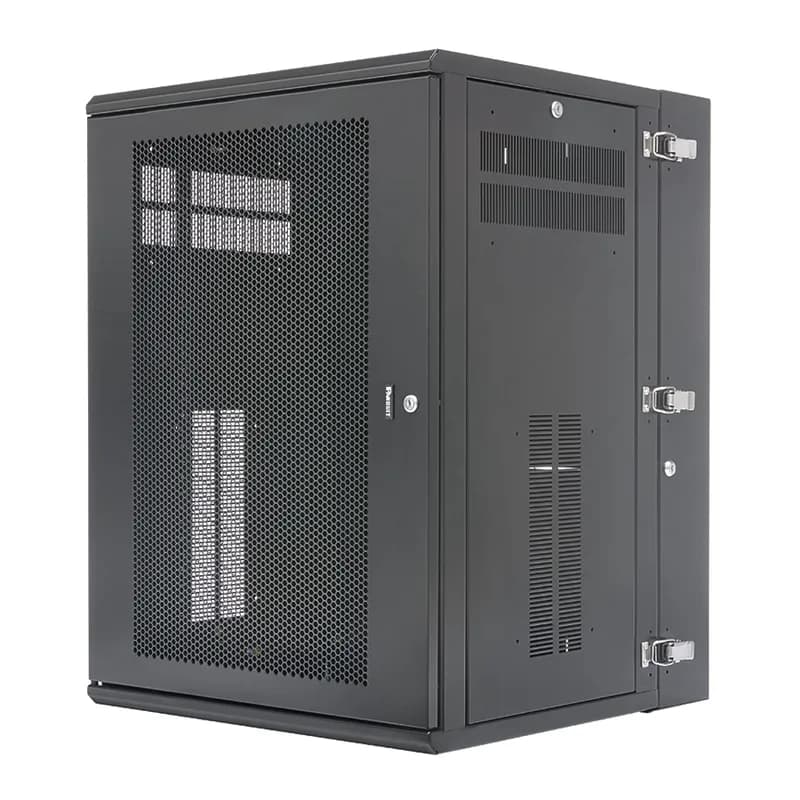

PZWMC18P
The PanZone Wall Mount Cabinet with perforated door is 25 inches deep and includes hinged doors on the front and back for complete access to networking equipment to make moves, adds, and changes easy. The removable side panels allow for access to cable routing. The enclosure is engineered to allow proper climate control for use with various networking equipment. The 18 RU enclosure is rated to 300 pounds and is black.

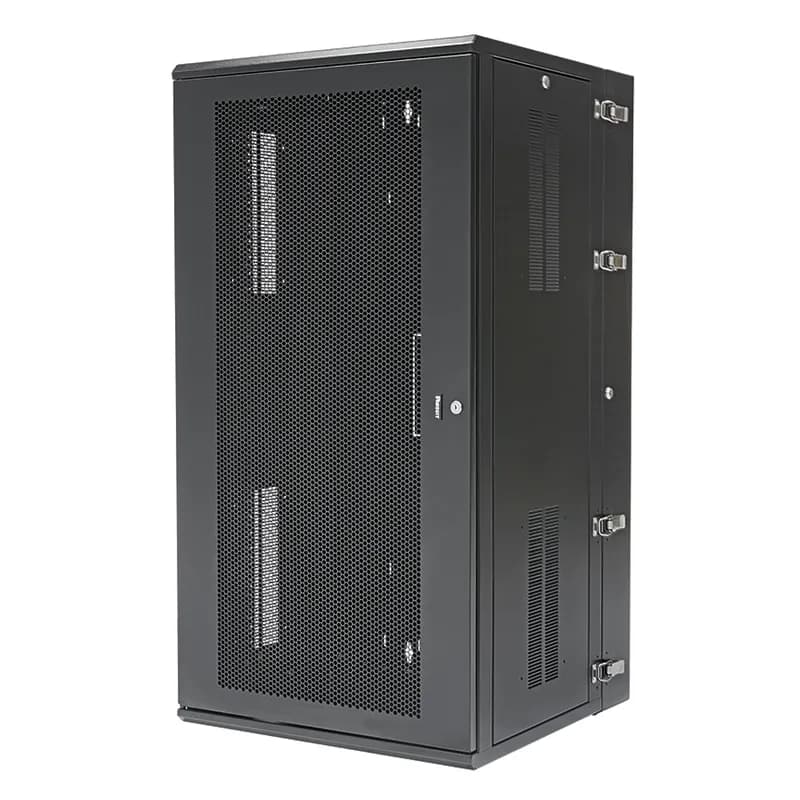

PZWMC26P
The PanZone Wall Mount Cabinet with perforated door is 25 inches deep and includes hinged doors on the front and back for complete access to networking equipment to make moves, adds, and changes easy. The removable side panels allow for access to cable routing. The enclosure is engineered to allow proper climate control for use with various networking equipment. The 26 RU enclosure is rated to 350 pounds and is black.
FCE1UA
The Opticom Rack Mount Fiber Enclosure is the Open Access version of the FCE1U. It ensures network reliability by housing, organizing, managing and protecting fiber optic cable, terminations, splices, connectors and patch cords. It is black, made of steel and uses up to 4 FAP or FMP adapter panels in a 1 RU footprint for maximum patch field density. 1.73"H x 17.60"W x 17.9"D (43.9mm x 447.0mm x 454mm)Frequently Asked Questions
What is the static load rating of the cabinet?
The static load rating is 3000 lbs. for the cabinet.
What is the rolling load rating of the cabinet?
The rolling load rating is 2500 lbs. for the cabinet.
What is the installation time reduction with the leveling feet?
The innovative leveling feet design reduces installation time by up to 80%.
What safety features are included in the cabinet?
The entire cabinet is fully electrically bonded, requiring no grounding whips for safety.
What are the cabinet width options available?
Cabinet widths available are 600mm, 700mm, and 800mm.
What heights are available for the cabinets?
Cabinet heights available are 42RU, 45RU, and 48RU.
Are the cabinets compatible with other Panduit products?
Yes, the cabinets are compatible with various Panduit product lines including FiberRunner®.
What are the color options for the cabinets?
The cabinets are available in black and white color options.
What is the benefit of the integral cabinet air seal?
The integral cabinet air seal improves thermal management and reduces cooling energy consumption.
How can I improve cable management in the cabinet?
Use modular snap-in fingers that align with rack spaces for cable management.
How to Install the DIRLC25S23W Inlet Duct
This guide provides step-by-step instructions for installing the DIRLC25S23W inlet duct in a Net-Access cabinet.
Estimated time: 1h
Tools needed:
Screwdriver, Wrench
Supplies needed:
#10-32 nuts, #12-24 screws, #12 star washers
- Prepare the cabinet
Ensure the front equipment rails are in the full forward position and the rear equipment rails are positioned 24.25" - 26.12" back.
- Install left and right hand brackets
Attach the left hand and right hand brackets to the cabinet using (8) #12-24 screws and (8) #12 star washers. Use (2) #10-32 nuts to secure adjustment brackets to both left and right hand brackets.
- Attach the side duct
Slide the (2) threaded studs on the side duct into the (2) slots in the right hand bracket. Secure the side duct with (2) #10-32 nuts.
- Install the side duct bracket
Secure the side duct bracket to the cabinet with (2) #12-24 screws and (2) #12 star washers. Attach the side duct bracket to the side duct using (2) #10-32 nuts.
- Install the inlet duct box
Slide the inlet duct box into the left hand and right hand brackets along the built-in guide flanges. Secure it with (2) #10-32 nuts.
