Hammond Power CD1X0200F1 - dV/dT filter 200 amperes up to 600 volts open style 1000 feet
Hammond Power

CD1X0200F1

UPC: 803423203450

Documents & Media
BrochureInstallation InstructionsSpecification Sheet

Contact for Pricing

Overview

The Hammond Power dV/dT filter CD1X0200F1 protects motors and cables in variable frequency drive (VFD) applications with cable lengths exceeding 1000 feet. Rated for 200 amperes and 600 volts, this open-style filter reduces voltage spikes and dv/dt rates caused by PWM output from VFDs. It mitigates reflected wave phenomena, extending motor and cable lifespan while preventing premature insulation failure and reducing bearing wear in long cable runs. The filter is UL recognized and suitable for harsh industrial environments. It meets UL 508 and CE standards, ensuring global compatibility. Common applications include HVAC systems, pump stations, and conveyor systems where extended cable distances are required. The open-style design allows flexible mounting and integration into existing control panels or enclosures.
  • The dV/dT filter combines an inductor and parallel resistor network to mitigate both high frequency components and voltage spikes between the VFD and motor.
  • The filter can mitigate the effects of reflected wave voltages greater than what a reactor alone can accomplish.
  • The filter provides protection to the motor by slowing down the rate of voltage increase and minimizes the damaging peak voltages that occur within the motor’s windings and along the length of cables feeding the motor.
  • UL recognized and CE marked for global compliance
  • Mitigates reflected wave phenomena to extend motor and cable lifespan

Specifications

Application
Designed for applications with long cables between the VFD and the motor
Connection Type
Open style
Cooling
Natural Convection
Current Rating
200 A
Enclosure Type
Open Frame
Height
10.25 in
Length
9 IN
Maximum Operating Temperature
50
Mounting Type
Open Style
Series
CD1X
Standard
cUL
Type
dV/dT Filter
Voltage Drop
Less than 3%
Voltage Rating
600 V
Voltage Rating
480/600 V
Weight
65 lbs
Width
14.5 in
Package Dimensions (L x W x H)
9 IN x 14.5 IN x 10.25 IN
Package Dimensions (L x W x H)
228.6 mm x 368.3 mm x 260.35 mm
Package Weight (Imperial)
65.000 L
Package Weight (Metric)
29.484 kg
dV/dT filter 160 amperes up to 600 volts open style 1000 feet

CD1X0160F1

dV/dT filter 160 amperes up to 600 volts open style 1000 feet
dV/dT filter 250 amperes up to 600 volts open style 1000 feet

CD1X0250F1

dV/dT filter 250 amperes up to 600 volts open style 1000 feet
dV/dT filter 130 amperes up to 600 volts open style 1000 feet

CD1X0130F1

dV/dT filter 130 amperes up to 600 volts open style 1000 feet
dV/dT filter 305 amperes up to 600 volts open style 1000 feet

CD1X0305F1

dV/dT filter 305 amperes up to 600 volts open style 1000 feet
dV/dT filter 365 amperes up to 600 volts open style 1000 feet

CD1X0365F1

dV/dT filter 365 amperes up to 600 volts open style 1000 feet
dV/dT filter 415 amperes up to 600 volts open style 1000 feet

CD1X0415F1

dV/dT filter 415 amperes up to 600 volts open style 1000 feet
dV/dT filter 515 amperes up to 600 volts open style 1000 feet

CD1X0515F1

dV/dT filter 515 amperes up to 600 volts open style 1000 feet
dV/dT filter 108 amperes up to 600 volts open style

CD1X0108F

dV/dT filter 108 amperes up to 600 volts open style

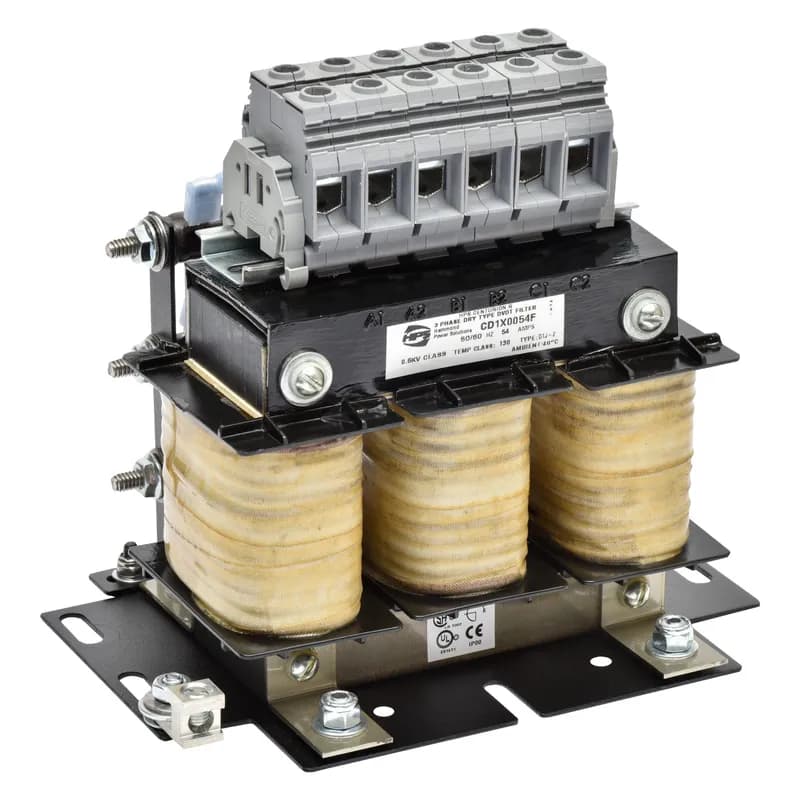

dV/dT filter 80 amperes up to 600 volts open style
