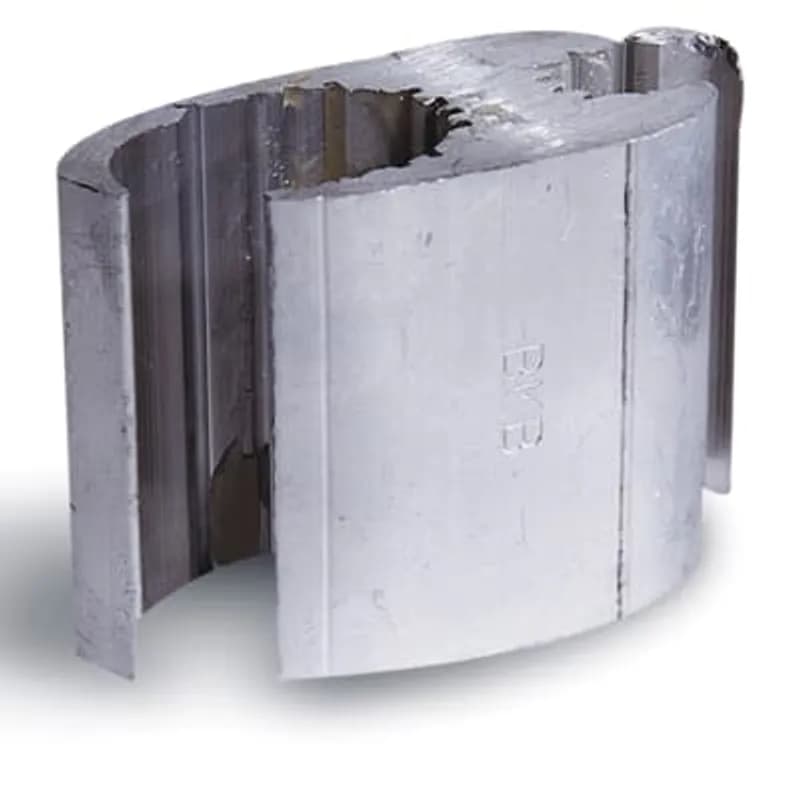

ABB - Installation Products WR159R - Aluminum H-Tap Connector, Wide Range, Industry Standard Size Code 1, Conductor Range Main ASCR #2, #4, #6, Stranded #1, #2, #3, #4, #6, Solid #2, #4, #6 TAP ASCR #2, #4, #6, Stranded #1, #2, #3, #4, #6, Solid #2, #4, #6 Die O, 25 Pieces

ABB Installation Products WR159R Aluminum H-Tap Connector, Wide Range, Industry Standard Size Code 1, Conductor Range…

UPC: 783786534012


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB WR159R H-Tap Connector provides a reliable, wide-range solution for tapping main conductors in industrial and utility applications. Designed for Industry Standard Size Code 1, this connector accommodates ASCR conductors from #2 to #6 for both main and tap applications, including stranded and solid configurations. The WR159R uses Die O for proper compression, ensuring secure electrical connections in harsh environments. With a 25-piece packaging, it is ideal for maintenance teams requiring bulk quantities for field installations. Compatible with standard ASCR and solid conductors, this connector simplifies tapping operations without the need for complex tools or procedures. The aluminum construction offers a balance of strength and conductivity, suitable for outdoor and indoor use where vibration resistance and corrosion resistance are required. Trust ABB’s Installation Products for dependable electrical connections in power distribution, substations, and renewable energy systems.
  • Industry Standard Size Code 1 for compatibility with standard connectors
  • Supports ASCR main conductors #2, #4, #6 and tap conductors #2, #4, #6
  • Accommodates stranded #1-#6 and solid #2, #4, #6 conductors
  • Uses Die O for proper compression and secure electrical connection
  • 25-piece packaging for bulk installation and maintenance needs

Specifications

Application
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection
Compression
Environmental Conditions
All Seasons / Conditions
Finish
Tinned
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Material
Aluminum
Mounting
None
Number Of Conductors
2
Size
Length 1-7/16 inch
Size
Industry Standard Size Code 1
Special Features
Tin-Plated
Standard
RUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
H-Type Compression Tap Connector
Wire Size
Main: #2 to #6 ACSR or #1 to #6 STRor #2 to #6 SOL AWG , Tap: #2 to #6 ACSR or #1 to #6 STR or #2 to #6 SOL AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0900 L
Package Weight (Metric)
0.0410 kg
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Connector, Two-Way, 2/0 Aluminum to 1/0 Copper

269-31499-10

Connector, Two-Way, 2/0 Aluminum to 1/0 Copper
15-35kV 200 Amp, Loadbreak LR Long Bi-Metal Contact - Size Code 250 - 2/0 Stranded/Compressed or 3/0 Solid/Compact. 2.88 inch long

02500250

15-35kV 200 Amp, Loadbreak LR Long Bi-Metal Contact - Size Code 250 - 2/0 Stranded/Compressed or 3/0 Solid/Compact. 2.88 inch long
15-35kV 200 Amp, Loadbreak LR Long Bi-Metal Contact - Size Code 240 - 1/0 Stranded/Compressed or 2/0 Solid/Compact. 2.88 inch long

02500240

15-35kV 200 Amp, Loadbreak LR Long Bi-Metal Contact - Size Code 240 - 1/0 Stranded/Compressed or 2/0 Solid/Compact. 2.88 inch long
200 Amp, 15/25kV, Long Bi-Metal Contact - 260 - 3/0 Stranded or Compressed. 4/0 Solid or Compact. Repair elbow has extended-length contact and elbow housing, resulting in a net gain of 3-1/4 inch in length.

02509260

200 Amp, 15/25kV, Long Bi-Metal Contact - 260 - 3/0 Stranded or Compressed. 4/0 Solid or Compact. Repair elbow has extended-length contact and elbow housing, resulting in a net gain of 3-1/4 inch in length.
Spade Connector, 15/35kV, AWG Conductor Size Stranded/Compressed #3 or Compact/Solid #2.

02702210

Spade Connector, 15/35kV, AWG Conductor Size Stranded/Compressed #3 or Compact/Solid #2.
15-35kV 200 Amp, Loadbreak LR Copper Contact - #1 Stranded/Compressed or 1/0 Solid/Compact

02702230

15-35kV 200 Amp, Loadbreak LR Copper Contact - #1 Stranded/Compressed or 1/0 Solid/Compact
15/25kV, 200 Amp, RLR Contact, Replacement Elbow Connector for Aluminum and Copper Conductors, 270 - for Conductor size 4/0 - Stranded/Compressed

00400270

15/25kV, 200 Amp, RLR Contact, Replacement Elbow Connector for Aluminum and Copper Conductors, 270 - for Conductor size 4/0 - Stranded/Compressed

Frequently Asked Questions

How many connectors are included in one package?

Each package contains 25 WR159R H-Tap connectors.

What conductor sizes does the WR159R support?

The WR159R supports ASCR main conductors #2, #4, and #6, and tap conductors #2, #4, and #6. It also accommodates stranded conductors #1 through #6 and solid conductors #2, #4, and #6.

Is the WR159R suitable for solid conductors?

Yes, the WR159R supports solid conductors in sizes #2, #4, and #6.

What die size is required for the WR159R connector?

The WR159R requires Die O for proper compression and installation.

What is the material of the WR159R connector?

The WR159R is made of aluminum, providing a balance of strength and conductivity.

Can the WR159R be used for outdoor installations?

The aluminum construction and secure compression design make it suitable for outdoor and indoor use, including harsh environments.
