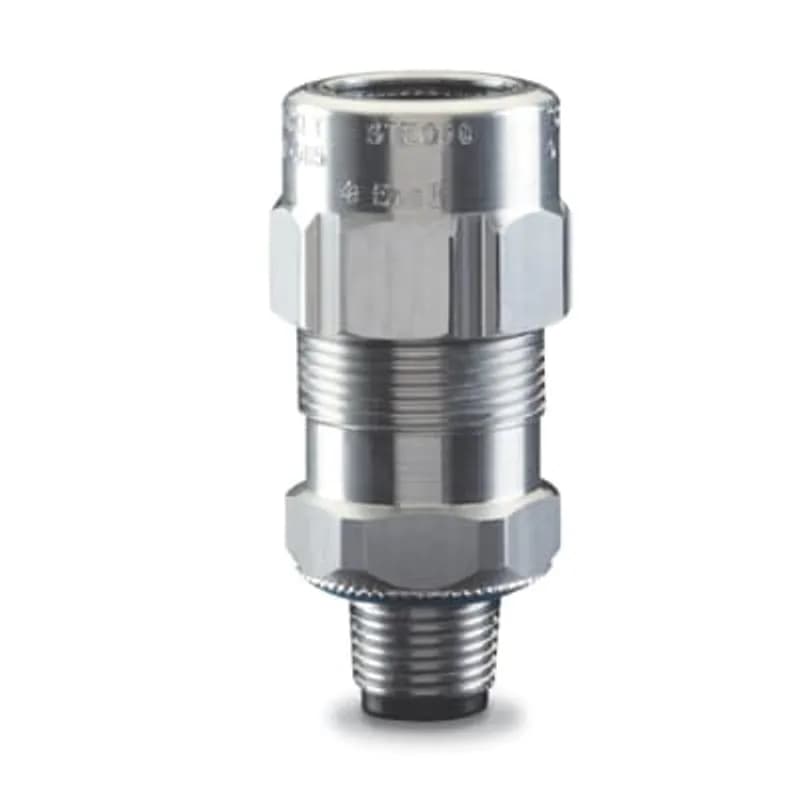

ABB Installation Products STE300 Star Teck Extreme aluminum jacketed cable fitting. Hub size of 3 inches. Range over…
UPC: 786210996882
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Range-taking hub accommodates cables 2.670" to 3.270" outer diameter
- Removable armour stop for faster cable termination and improved sealing
- 3-inch hub size with 1600 lb-in gland nut torque for secure installation
- Constructed from durable aluminum with stainless steel grounding and retaining rings
- Suitable for hazardous locations: Class 1 Div. 2, Class II Div. 2, Class III
Specifications
Color | Silver |
Material | Aluminum |
Size | 3 Inches |
Standard | UL E38947, CSA 23086, CSA 4484 |
Type | Teck Cable Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 4.6000 L |
Package Weight (Metric) | 2.0870 kg |
MAVI-M20/01
Special 45 Degree Elbow Adapter, Metric Thread - Thread Inside/Outside M20x1.5/M20x1.5, Nickel-Plated Aluminum
95138
Clamp-on service entrance cap for 4-inch EMT and rigid/IMC conduit. It is made of aluminum with a silver color and no additional finish. The enclosure is listed as Weatherhead.
STE350
Star Teck Extreme aluminum jacketed cable fitting. Hub size of 3-1/2 inches. Range over jacket from 3.220 - 3.870 inches.
STE300GRL
Star Teck Extreme aluminum jacketed cable fitting. Hub size of 3 inches. with Bond Star grounding locknut. Range over jacket from 2.670 -3.270 inches.STE350GRL
Star Teck Extreme aluminum jacketed cable fitting. Hub size of 3-1/2 inches. with Bond Star grounding locknut. Range over jacket from 3.220 - 3.870 inches.STE400
Star Teck Extreme aluminum jacketed cable fitting. Hub size of 4 inches. Range over jacket from 3.665 - 4.340 inches.STE300S
Star Teck Extreme steel jacketed fitting. Hub size of 3 inches. Range over jacket from 2.670 - 3.270 inches.Frequently Asked Questions
What cable outer diameters does the STE300 fit?
The STE300 accommodates cables with outer diameters ranging from 2.670 inches to 3.270 inches.
What material is the STE300 fitting made from?
The STE300 is constructed from aluminum, providing durability and corrosion resistance.
What is the hub size of the STE300 fitting?
The STE300 has a 3-inch hub size, designed for compatibility with standard armoured cables.
How does the STE300 reduce inventory needs?
The range-taking design of the STE300 replaces three conventional fittings, reducing the number of SKUs required in inventory.
Is the armour stop on the STE300 removable?
Yes, the STE300 features a removable armour stop, allowing for quick adjustments during installation.
How to Install Star Teck Extreme STE300 Cable Fittings
This guide provides step-by-step instructions for preparing armored cable and properly installing Star Teck Extreme STE300 cable fittings to ensure a secure and grounded connection in accordance with electrical codes.
Estimated time: 30m
Tools needed:
Hacksaw, Wire strippers, Wrench
Supplies needed:
Star Teck Extreme STE300 cable fitting, Armored cable
- Select Fitting and Disconnect Power
WARNING: Risk of shock, disconnect power before installation. Select the appropriate Star Teck Extreme cable fitting (e.g., STE300) that matches your enclosure and the armored cable being used. Ensure the fitting is suitable for your application's specific requirements.
- Prepare the Armored Cable
Determine the required working length of conductors inside the enclosure or device. Remove a portion of the cable's outer jacket to expose the armor. Using a hacksaw, cut the armor and trim the outer jacket to achieve the exposed armor strip length specified in the product table for your STE model (e.g., 2.670-3.270 inches for STE300). CAUTION: Do not nick or cut the conductor insulation during this process.
- Feed Cable into the Fitting
Feed the prepared armored cable through the gland funnel entry of the fitting. Push the cable until its armor firmly contacts the internal armor stop. Ensure the cable armor is properly positioned against the stop to guarantee effective cable armor grounding.
- Remove Armor Stop (If Necessary)
If the inner conductor bundle will not pass through the fitting due to the armor stop, unscrew and discard the internal armor stop (refer to Figure 6 in the documentation). After removing the stop, repeat Step 3 to feed the cable through the fitting.
- Secure the Cable Fitting
Using a wrench, tighten the gland nut until a proper seal is achieved or to the maximum torque specified in the product table for your STE model (e.g., 2545-3145 in-lbs for STE300). Verify that the bushing and collar ring seal evenly around the cable's outer jacket and are flush with the glandnut face. Ensure the cable remains centered to obtain an optimal seal.
