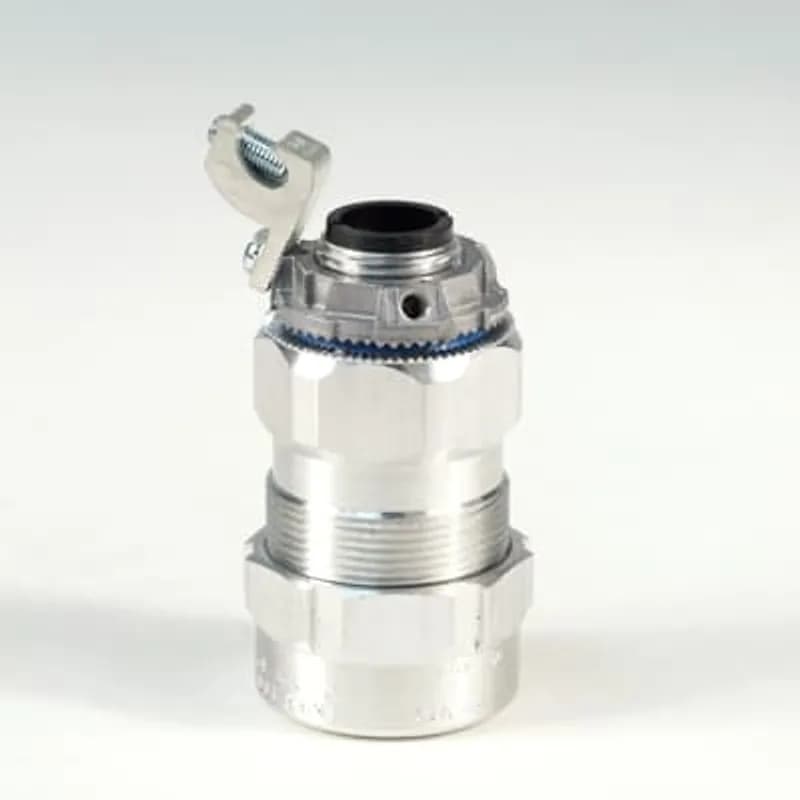

ABB Installation Products STE125GRL Star Teck Extreme aluminum jacketed cable fitting. Hub size of 1-1/4 inch. with Bond…
UPC: 786210687636
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Range-taking fitting for jacketed cable diameters 1.150–1.625 inches
- 1-1/4 inch NPT hub size for standard conduit/junction box compatibility
- Bond Star grounding locknut provides secure 360° grounding
- Tapered bushing ensures watertight seal in vertical installations
- Removable armor stops prevent over-stripping and enhance safety
Specifications
Color | Silver |
Material | Aluminum |
Series | 10464 Series |
Size | 1-1/4 Inch |
Size | 1-1/4 inches |
Standard | UL E38947, CSA 23086 |
Type | Teck Cable Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.1300 L |
Package Weight (Metric) | 0.5130 kg |
MAVI-M20/01
Special 45 Degree Elbow Adapter, Metric Thread - Thread Inside/Outside M20x1.5/M20x1.5, Nickel-Plated Aluminum
95138
Clamp-on service entrance cap for 4-inch EMT and rigid/IMC conduit. It is made of aluminum with a silver color and no additional finish. The enclosure is listed as Weatherhead.
STX200-472
Star Teck hazardous location aluminum jacketed cable fitting. Hub size of 2 inches. Range over jacket from 1.700 - 1.965 inch.STX075-465
Star Teck hazardous location aluminum jacketed cable fitting. Hub size of 3/4 inch. Range over jacket from 0.725 - 0.885 inch.
LB75M-TB
Series 35 Back Opening 3/4 Inch Conduit Body, Body Material Malleable Iron, Finish Zinc Plating with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit
How to Install the Star Teck Extreme STE125GRL Cable Fitting
This guide provides step-by-step instructions for preparing and installing Star Teck™ Extreme STE series cable fittings, ensuring proper cable armor grounding and sealing. WARNING: Disconnect power before installation. CAUTION: Installation must be performed by a qualified electrician in accordance with national and local electrical codes.
Estimated time: 15m
Tools needed:
Hacksaw, Wire strippers, Torque wrench
Supplies needed:
STE125GRL Cable Fitting, Armored cable, Enclosure or device
- Prepare the Cable
Determine the working length of conductors required inside the enclosure or device. Remove a portion of the outer jacket to expose the cable armor. Cut the armor using a hacksaw and trim the outer jacket to adjust the exposed armor strip length as indicated in the provided table (refer to Figure 1). For STE125, the strip length is typically between 1.150 and 1.625 inches with the armor stop. CAUTION: Do not nick or cut the conductor insulation.
- Insert Cable into the Fitting
Feed the prepared cable through the gland funnel entry. Push the cable until its armor firmly hits the armor stop (refer to Figure 3). Mispositioned cable armor may result in improper cable armor grounding. If the inner conductor bundle will not pass through, unscrew and discard the armor stop (refer to Figure 6), then repeat this step.
- Secure the Cable Fitting
Tighten the gland nut until you obtain an appropriate seal or to the maximum torque specified in the table (refer to Figure 4). For STE125, the maximum torque is 1000 in-lbs. Ensure the bushing and collar ring seal evenly around the cable’s outer jacket and are flush with the glandnut face (refer to Figure 5). Verify the cable remains centered to obtain an optimal seal.
