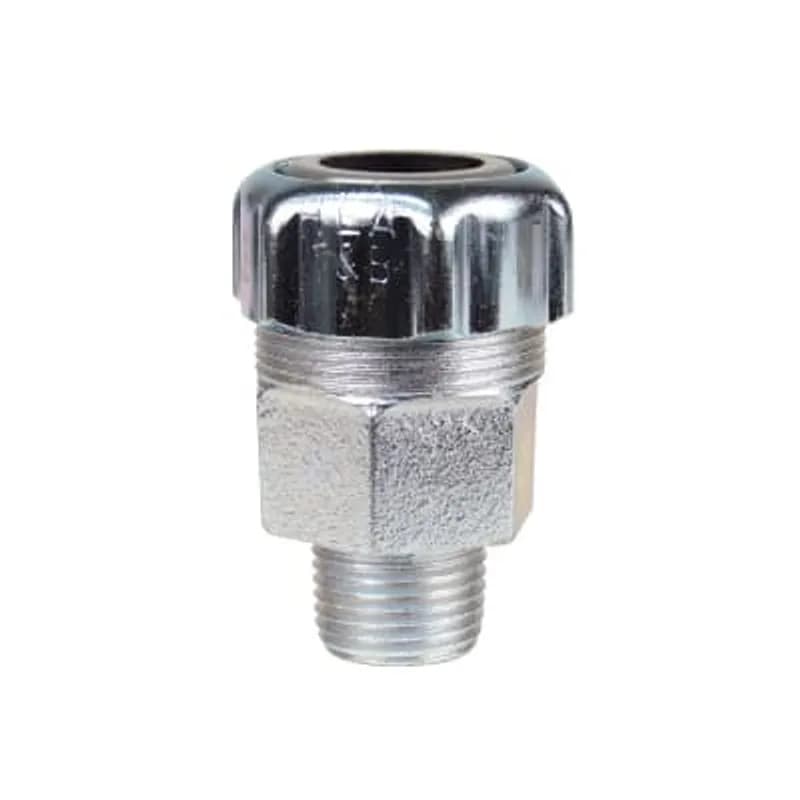

ABB Installation Products 10477AL Watertight fitting aluminum with a hub thread size of 2-1/2 inches Cable Jacket outside…
UPC: 786210307763
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 2-1/2 inch hub thread size for standard conduit compatibility
- Accommodates cable jackets from 2.735 to 2.985 inches outer diameter
- Aluminum construction for corrosion resistance and durability
- Threaded hub for easy installation and removal
Specifications
Color | Silver |
Material | Aluminum |
Size | 2-1/2 Inches |
Special Features | When using fittings on single conductor cable, aluminum fittings and aluminum locknuts must be used |
Standard | UL E38947, CSA 23086, CSA 4484 |
Type | Watertight Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.9300 L |
Package Weight (Metric) | 1.3290 kg |

MAVI-M20/01
Special 45 Degree Elbow Adapter, Metric Thread - Thread Inside/Outside M20x1.5/M20x1.5, Nickel-Plated Aluminum
STE400GRL
Star Teck Extreme aluminum jacket cable fitting. Hub size of 4 inches. with Bond Star grounding locknut. Range over jacket from 3.665 - 4.340 inches.
ST050-462PVC
Star Teck aluminum jacketed fitting PVC coated. Hub size of 1/2 inch. Range over jacket from 0.525 - 0.650 inch.
ST050-464PVC
Star Teck aluminum jacketed cable fitting PVC coated. Hub size of 1/2 inch. Range over jacket from 0.600 - 0.760 inch.
ST050-466PVC
Star Teck aluminum fitting PVC coated. Hub size of 1/2 inch. Range over jacket from 0.825 - 0.985 inch.
ST050-462
Star Teck aluminum jacketed cable fitting. Hub size of 1/2 inch. Range over jacket from 0.525 - 0.650 inch.
ST050-462S
Star Teck steel jacketed cable fitting with sealing ring. Hub size of 1/2 inch. Range over jacket from 0.525 - 0.650 inch.Frequently Asked Questions
What material is the 10477AL fitting made from?
The fitting is constructed from aluminum, providing corrosion resistance and durability.
What is the hub thread size of this fitting?
The hub thread size is 2-1/2 inches, compatible with standard conduit systems.
What cable jacket diameters does this fitting support?
The fitting accommodates cable jackets with outer diameters between 2.735 and 2.985 inches.
Can this fitting be used in marine environments?
Yes, the watertight design and aluminum construction make it suitable for marine applications.
