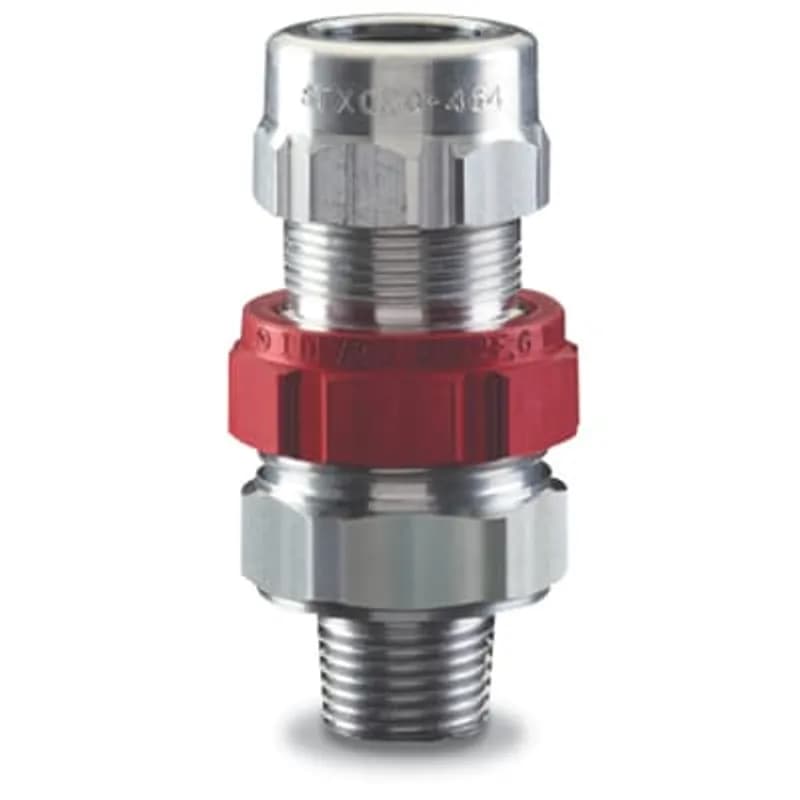

ABB Installation Products STX075-465 Star Teck hazardous location aluminum jacketed cable fitting. Hub size of 3/4 inch.…
UPC: 786210904740
Contact for Pricing
Minimum Qty: 2
Multiplier: 2
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Designed for hazardous locations, including petrochemical and oil/gas industries.
- Integral, easy-to-fill sealing chamber for simplified hazardous area sealing.
- Disconnectable design minimizes cable preparation and installation time.
- 3/4 inch hub size for secure connection.
- Accommodates cable jacket diameters ranging from 0.725 to 0.885 inches.
Specifications
Application | For Hazardous Locations |
Color | Red;Silver |
Material | Aluminum |
Size | 3/4 Inch |
Standard | UL E82038, CSA 23086 |
Type | Teck Cable Fittings |
Package Dimensions (L x W x H) | 4 IN x 4 IN x 3 IN |
Package Dimensions (L x W x H) | 10.16 cm x 10.16 cm x 7.62 cm |
Package Weight (Imperial) | 0.4200 L |
Package Weight (Metric) | 0.1910 kg |
MAVI-M20/01
Special 45 Degree Elbow Adapter, Metric Thread - Thread Inside/Outside M20x1.5/M20x1.5, Nickel-Plated Aluminum
95138
Clamp-on service entrance cap for 4-inch EMT and rigid/IMC conduit. It is made of aluminum with a silver color and no additional finish. The enclosure is listed as Weatherhead.
LB75M-TB
Series 35 Back Opening 3/4 Inch Conduit Body, Body Material Malleable Iron, Finish Zinc Plating with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit
TB17-TB
1/2 Inch Form 7 (TB) Conduit Body, Body Material Gray Iron with Zinc Plating and Baked on Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
STE400GRL
Star Teck Extreme aluminum jacket cable fitting. Hub size of 4 inches. with Bond Star grounding locknut. Range over jacket from 3.665 - 4.340 inches.Frequently Asked Questions
What is the jacket diameter range for STX075-465?
The STX075-465 accommodates a jacket diameter range of 18.42 mm (0.725 in) minimum to 22.48 mm (0.885 in) maximum.
What is the NPT thread size for the STX075-465?
The STX075-465 has an NPT thread size of 3/4 inches.
What is the armor diameter range for STX075-465?
The STX075-465 accommodates an armor diameter range of 15.67 mm (0.617 in) minimum to 20.45 mm (0.805 in) maximum.
What is the maximum sealing compound volume for STX075-465?
The STX075-465 requires a maximum volume of 8 cc of sealing compound.
What sealing compounds are required for STX fittings?
STX fittings must be installed with either SC4-KIT-1 liquid compound or SC65 putty sealing compound, which are sold separately.
What is the ingress protection rating of STX cable glands?
STX cable glands have an ingress protection rating of Type 4 / 4X.
Which sealing compound is for shielded cables?
The SC4-KIT-1 liquid compound should be used for shielded cables and cables with 5 or more conductors, including ground.
Are there specific installation code requirements for this product?
Yes, the product must be installed in accordance with applicable national and local electrical codes.
What is the maximum conductor count for SC65 compound?
The SC65 sealing compound is suitable for cables with a maximum of 4 conductors, including ground, and is not recommended for shielded cables.
What is the operating temperature range for STX fittings?
The normal operating temperature range for STX fittings is -40 to +90°C (-40 to +194°F).
How to Install an STX075-465 Star Teck Cable Fitting
This guide provides step-by-step instructions for preparing your cable, installing the STX075-465 Star Teck cable fitting, and sealing it using liquid-type sealing compound SC4-KIT-1. This product must be installed by a qualified electrician in accordance with national and local electrical codes. Ensure all circuits are de-energized before beginning.
Estimated time: 1h 30m
Tools needed:
Hacksaw, Wire strippers, Wrench, Damp cloth
Supplies needed:
STX075-465 cable fitting, Cable (power or shielded data), SC4-KIT-1 LIQUID SEALANT, Fiber damming material
- De-energize Circuits and Prepare Cable Armor
WARNING: Risk of electrical shock. Before installing, verify that all circuits are de-energized. Determine the required working length of conductors inside the enclosure or device. Remove a portion of the outer jacket to expose the cable armor, then cut the armor using a hacksaw. CAUTION: Do not nick or cut the conductor insulation.
- Trim Outer Jacket and Feed Cable
Trim the outer jacket to achieve an exposed armor strip length between 0.617 and 0.805 inches for the STX075-465 fitting. Feed the prepared cable through the gland nut opening and push it until the cable armor firmly hits the end stop.
- Tighten Gland Nut
Tighten the gland nut to obtain an appropriate seal, up to a maximum torque of 700 IN-LBS. Ensure the bushing and collar ring seal evenly around the cable’s outer jacket and are flush with the gland nut face. Keep the cable centered to obtain an optimal seal.
- Disassemble Fitting and Trim Inner Jacket
Disassemble the hub from the body sub-assembly by loosening the union. Unscrew the sealing chamber from the body sub-assembly. Trim the inner jacket to a length of 1/8 to 3/8 inches to expose the conductor bundle. If using shielded data cables, also remove the outer (overall) shield and filler materials, taking care not to nick or damage inner shields.
- Pack Fiber Damming Material and Reassemble Sealing Chamber
Pack the fiber damming material tightly into all voids between the conductors and the body. Spread the strands of any uninsulated grounding conductor where applicable. Screw the sealing chamber back onto the body sub-assembly until it is completely seated.
- Mix and Dispense Liquid Sealant
Position the cable and fitting vertically. Mix the SC4-KIT-1 liquid sealing compound according to its package instructions. Dispense the sealing compound into the end of the sealing chamber until the level stabilizes and fills to the top. CAUTION: Remove all excess compound material from outside the sealing chamber with a damp cloth. Do not use abrasive cleaners such as powder cleaners, sandpaper, steel wool, or wire brush that may damage the flame path.
- Mount Hub and Secure Assembly
Mount the hub in your desired location. After the sealing compound has solidified (after approximately 1 hour), place the encapsulated assembly into the hub. Secure it in position by tightening the union until it bottoms, ensuring metal-to-metal contact.
