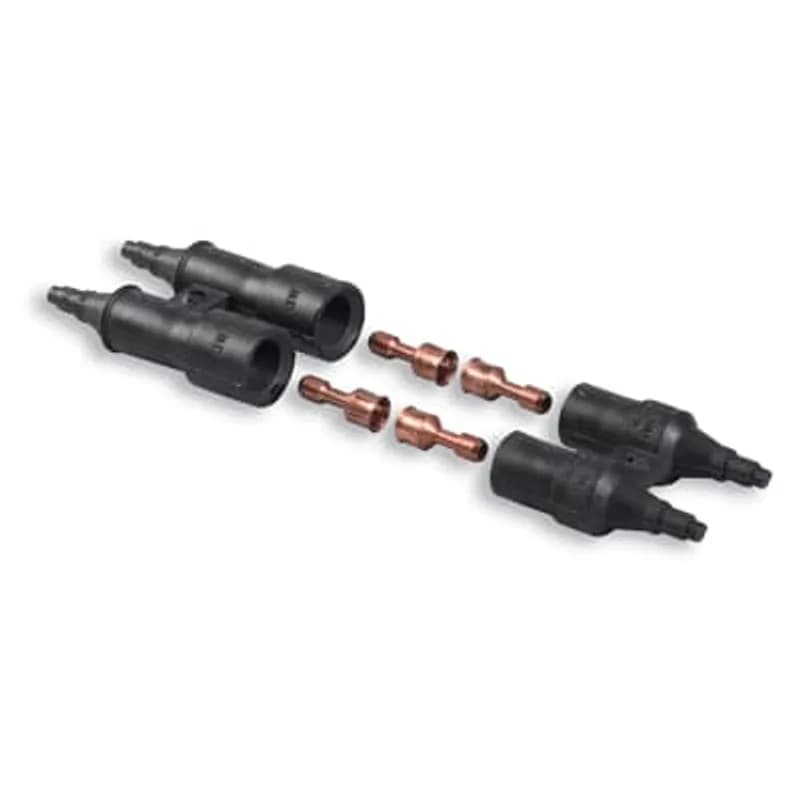

ABB Installation Products SLK-M VP Mechanical Connector With Wooden Dowel And Rocket/cap. Includes Insulating Cap and…
UPC: 783786752287
Documents & Media
Contact for Pricing
Minimum Qty: 250
Multiplier: 250
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Includes insulating cap and rocket for protection against contaminants
- Two tin-plated fuse clips for reliable electrical contact
- Pre-applied silicone grease prevents oxidation and reduces installation friction
- Wooden dowel provides structural support during installation
- Comprehensive installation instructions included
Specifications
Application | Rated 600 Volts, 30 Amps Maximum, perfect for heavy-duty applications |
Connection | Mechanical |
Material | EPDM-Rubber Housing |
Special Features | EPDM Rubber Housing Ensures Fully Insulated, Watertight and Submersible Connection. Safe Separations, Fuse or Connecting Link Stays in Load Side when Separated. Dual-Rated and Approved. Rated for 600 Volts, 30 Amp Maximum |
Type | Breakaway Street Light Kit Non-Fused |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1500 L |
Package Weight (Metric) | 0.0680 kg |
SGPL12-10S-L
Ground Bonding Pigtail, #12 AWG Solid Wire, 10" length, one end of wire strip to 1" length, GSH, #10-32 Bonding Screw Included
E-4HPS-25
Type HPS Plated Split-Bolt Connector with Spacer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 4 Sol.-12 Sol.
E-8H-25
Type H High Strength Split-Bolt Connector made of Bronze Alloy for Use on Copper Conductors. Conductor Range for Equal Main and Tap 8 Str.-10 Sol.E-6H-25
Type H High Strength Split-Bolt Connector made of Bronze Alloy for Use on Copper Conductors. Conductor Range for Equal Main and Tap 6 Sol.-8 Sol.
E-APS41-25
Type APS Tin-Plated Aluminum Dual-Rated Split-Bolt Connector, Conductor Range for Equal Main and Tap 4/0-2 Str, 25 PackHow to Install the Flood-Seal SLK-M VP Streetlight Fuse Kit
This guide provides step-by-step instructions for installing the Flood-Seal SLK-M VP Streetlight Fuse Kit, including cable preparation, housing assembly, and final connection for 600V rated aluminum or copper conductors.
Estimated time: 30m
Tools needed:
Wire strippers, Screwdriver, Assembly Dowel
Supplies needed:
Line End Housing, Load End Housing, Fuse Clips, Silicone Grease, Assembly Dowel, 13/32" x 1-5/8" max. cartridge fuse (600V, 30A max, non-glass body)
- Prepare for Installation and Ensure Safety
Identify Line and Load side wires and match housing body parts before proceeding. WARNING: Ensure all associated wires and the working area are de-energized to prevent electric shock. Installation must be performed by trained installers in accordance with all applicable local, state, and national electrical codes, installation standards, and safety rules.
- Prepare Cables and Fuse Clips (Both Ends)
For both the Line End and Load End cables, strip approximately 1/2 inch of insulation from the cable end. Slide a fuse clip over each bared conductor and tighten it securely.
- Prepare Housings for Cable Entry (Both Ends)
For both the Line End and Load End housings, select the correct cut-off ring that matches the cable being used. Cut off the end of the housing at the tip of the arrow, ensuring the correct cable size is showing. Wipe each cable clean and bevel the end of the cable insulation for easier installation. Apply silicone grease to the end of each cable and to the cut opening of each housing.
- Insert Cables into Housings (Both Ends)
For both the Line End and Load End, carefully insert the prepared cable into its respective housing until it extends 2 to 3 inches beyond the housing opening.
- Install Fuse Clips into Housings (Both Ends)
Apply a small amount of silicone grease to each fuse clip. Slide each housing over its respective fuse clip until resistance is felt. Using the provided wood dowel as an assembly and depth gauge tool, insert each fuse clip to the depth indicated for the line and load side housings as marked on the dowel. DO NOT exceed these depths.
- Insert Fuse and Mate Housings
Insert a 13/32 inch by 1-5/8 inch maximum (max. 600 Volt, 30 amp) cartridge fuse into the Load End housing. Do not use glass body fuses. Mate the Line End and Load End housings together to establish the electrical connection.
