![TE Connectivity 284874-1 - 24 POS PLUG HOUSING ASS'Y, 24 Position, Plug, Housing, Wire-to-Wire, UL 94V-0, 4 Row, Wire & Cable, Signal, Panel Mount, -40 – 257 °C [-40 – 257 °F]](/_next/image?url=https%3A%2F%2Fgross-automation-prod.s3.amazonaws.com%2Fitems%2F1793530268606image4542483306.jpg&w=3840&q=75)

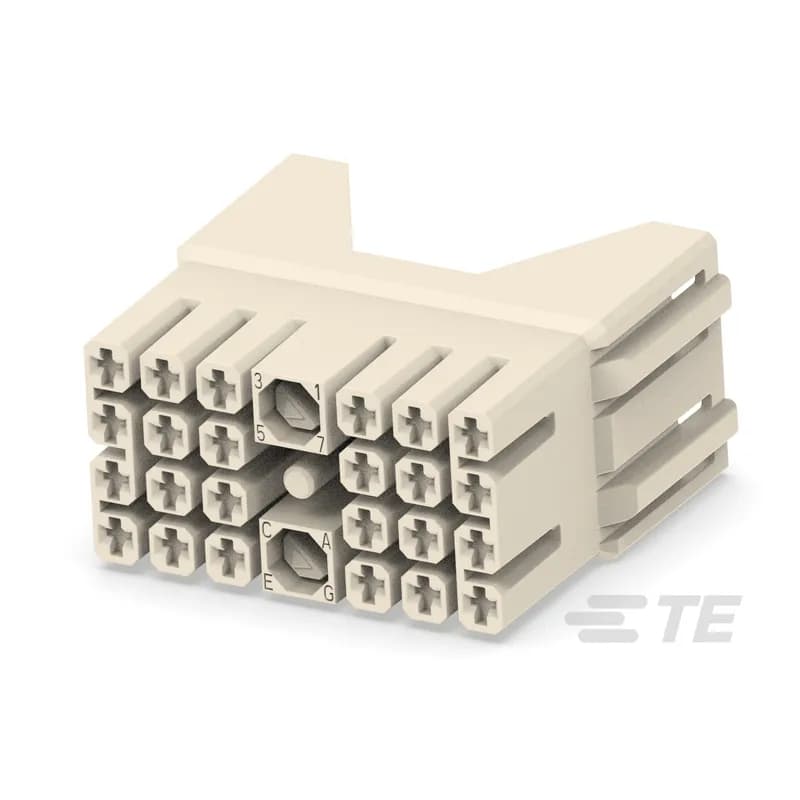

TE Connectivity 284874-1 24 POS PLUG HOUSING ASS'Y, 24 Position, Plug, Housing, Wire-to-Wire, UL 94V-0, 4 Row…
Documents & Media
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 24 Position Plug Housing Assembly
- Wire-to-Wire Connection Type
- UL 94V-0 Flame Retardant Material
- 4 Row Configuration
- Operating Temperature: -40 – 257 °C [-40 – 257 °F]
Specifications
Application | Signal |
Color | White |
Connection Type | Wire-to-Wire |
Material | Thermoplastic |
Material | UL 94V-0 |
Mounting | Panel Mount |
Mounting Type | Panel Mount |
Poles | 24 |
Size | 24 Position |
Standard | UL 94V-0 |
Type | Housing |
168FLR1-B5220
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
VAG-022-00
Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 24V, 10A, LED w/MOV, .5-NPT opening
2701A4
25kV 200 Amp, Loadbreak Bushing Insert, includes internal torquing feature using 200AT Assembly Tool. Length 8.93 inch, Widest Diameter 2.9 inch.
Frequently Asked Questions
What is the maximum current rating for this connector?
The maximum current rating is 10A at 20°C, with contacts crimped on wires of 1.5mm2 or larger, and a maximum of 6 adjacent contacts per connector.
What is the operating temperature range for the connector?
The operating temperature range is -40°C to +125°C, including temperature increases due to current flow.
What is the maximum voltage this connector can handle?
The maximum voltage is 137 V dc, intended for a nominal battery voltage of 110 V dc.
What wire sizes can be used with the receptacle contacts?
Receptacle contacts can be crimped on wires with sections of 0.5-1mm2 (insulation diameter 1.4-2.1mm) or 1.5-2.5mm2 (insulation diameter 2.0-3.0mm or 3.3-4.2mm).
What is the durability rating of the gold-plated contacts?
The gold-plated contacts are rated for 100 cycles (in-out operations).
What is the contact retention force within the housing?
The retention force of a crimped contact within the housing is a minimum of 70 N.
What is the voltage drop across the connector under load?
The voltage drop is a maximum of 15 mV/A, measured between two 1mm2 crimped wires on mated contacts.
What is the dielectric strength between adjacent contacts?
The dielectric strength between adjacent contacts is at least 1500Va.c. effective for 1 minute.
What is the insulation resistance between contacts?
The insulation resistance is a minimum of 100 MΩ when tested at 500 V d.c.
What is the maximum torque for coupling the connector?
The maximum torque to apply on the stud bolt for coupling is 0.5 N·m.
