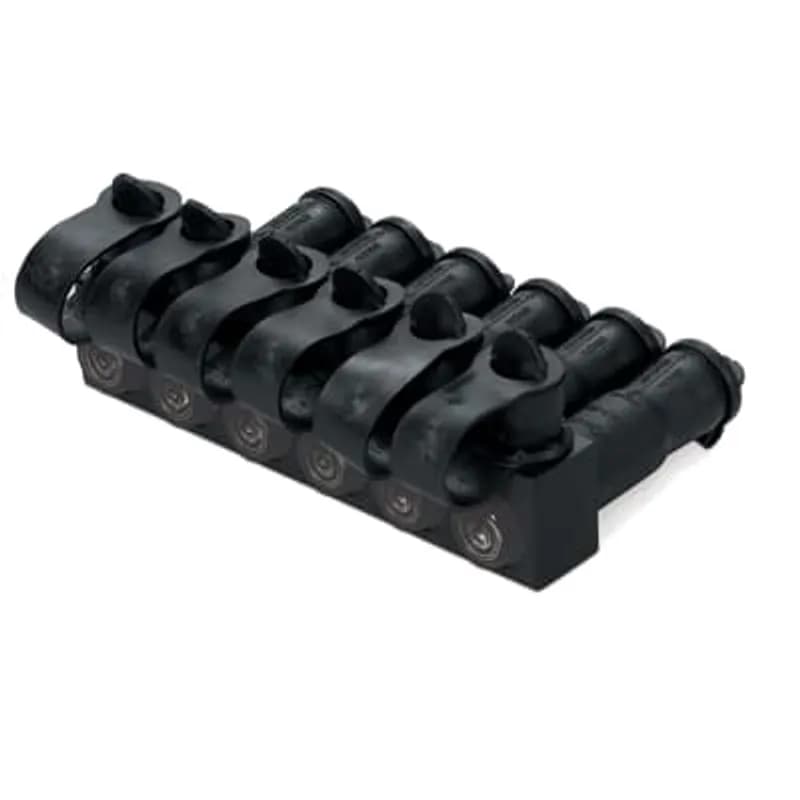

ABB Installation Products RAB 3 CGP Multi Seal, Aluminum Insulated Bus Connector, #12 - 350 kcmil, Three Conductor, Dual…
UPC: 783786745111
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Three conductor, dual-rated insulated bus connector
- Accommodates conductor sizes #12 AWG to 350 kcmil
- Suitable for both aluminum and copper conductors
- Georgia Power (GP) approved for specific applications
- 350 Series with standard inward-seal Rockets
Specifications
Application | Dual-Rated Connector |
Color | Black |
Conductor Range | #12 to 350 kcmil |
Connection | Mechanical |
Connection Type | Bus Connector |
Environmental Conditions | Waterproof |
Insulation | yes |
Material | Aluminum |
Material | 6061-T6 Aluminum Connector, Santoprene Body |
Number Of Conductors | 3 |
Number of Poles | 3 |
Poles | 3 |
Series | 350 Series |
Size | Length 3-5/8 inches |
Size | #12 - 350 kcmil |
Special Features | High Performance, Dual Rated Connectors |
Standard | RUS Accepted |
Type | Aluminum Flood-Seal Multi-Port Connector RAB 350 Series |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.5500 L |
Package Weight (Metric) | 0.2500 kg |
RAB 4 OR
Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.
RAB 1/0-5
Aluminum Flood-Seal, Multi-Port Connector, RAB 1/0 Series, Conductor Range #14 - 1/0. Santoprene Coated. RUS Accepted. Total Outlets 5. Length 4-7/16 inch. Includes Caps and Screws.
RAB 4 C
Aluminum Multi-Port Connectors - RAB 350 Series, conductor range #12 Solid - 350 kcmil, length 4-13/16 inch, Oxide Inhibitor. 4 Outlets, Cap is attached by Strap.
2042-4 W/JAMNUT
Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 5/8-11 UNC-2B with .875 inch Outside Diameter. Pad 7.5 inch long x 3.375 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter. Includes Brass 5/8-11 Jam Nut
RABS 16
Aluminum Insulated Mechanical InLine Splice, #6 to #1. Length 6.05 inch x 1.43 inch high. Santoprene Insulation.2042-5 W/JAMNUT
Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 1-14 UNS-2B with 1.192 inch Outside Diameter. Pad 5.5 inch long x 3 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter, includes Brass 1-14 Jam NutRABS 4010
Aluminum Insulated Mechanical InLine Splice, 1/0 to 4/0, Length 7.6 inch x 2.12 inch high. Santoprene Insulation.
RAB 1/0-32 C
Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Five Conductor, with Oxide InhibitorFrequently Asked Questions
Can this bus connector be used with both aluminum and copper wires?
Yes, the RAB 3 CGP is dual-rated and can be used with both aluminum and copper conductors.
What does the 'GP' designation mean on this connector?
The 'GP' designation on the RAB 3 CGP indicates its suitability for Georgia Power applications.
How many connectors are included in a package of RAB 3 CGP?
A package of the ABB RAB 3 CGP contains 12 pieces of the multi-seal bus connector.
What type of sealing is standard on the 350 Series connectors?
The 350 Series connectors, including the RAB 3 CGP, come standard with inward-seal Rockets.
How to Install RAB 350 Series Electrical Connectors
This guide provides step-by-step instructions for safely installing RAB 350 Series electrical connectors. It covers preparing the connector, stripping the cable, and torquing the connection to ensure a secure and compliant installation.
Estimated time: 20m
Tools needed:
Wire strippers, Torque wrench, Insulating gloves (rated to appropriate voltage)
Supplies needed:
RAB 350 Series connector, Electrical cable (#12 to 350 kcmil)
- Prepare the Rocket Insert
If installing #12 to 250 kcmil cable, cut the rocket insert at the marked ring. For 300/350 kcmil cable, the rocket is not required and should be removed. Reinsert the rocket if it was cut and is needed for your cable size.
- Strip the Cable
WARNING: Danger of Electric Shock! Wear insulating gloves rated to the appropriate voltage when working on live conductors. Do not install tap conductors under load. Measure the required strip length by aligning the cable with the markings on the connector's tower. Using wire strippers, carefully strip the cable to the measured length. Ensure the cable size is appropriate; if reinstalling, it must be the same size or larger than the one removed.
- Insert the Conductor
Insert the stripped cable conductor into the appropriate opening: use the tower for 300 to 350 kcmil cables, or the rocket for #12 to 250 kcmil cables. Push the conductor until its end touches the internal window.
- Access the Torque Screw
Locate the screw plug and remove it by pulling its tether. This action will expose the internal torque screw for the connection.
- Torque the Connector
Using a torque wrench, tighten the connector screw to the values specified on the tether. Apply 120 in-lb for #12 to #3 cables. For #2 to 350 kcmil cables, apply 240 in-lb. The acceptable torque range for 2-350 kcmil is 240-350 in-lb. Ensure the connection is firm and secure. Follow standard safety practices when working on energized circuits.
- Reseal the Connector
After torquing, replace the screw plug. Then, fully reseal the connector by installing the attached plug into its port. Ensure all unused cable ports are sealed to maintain integrity.
