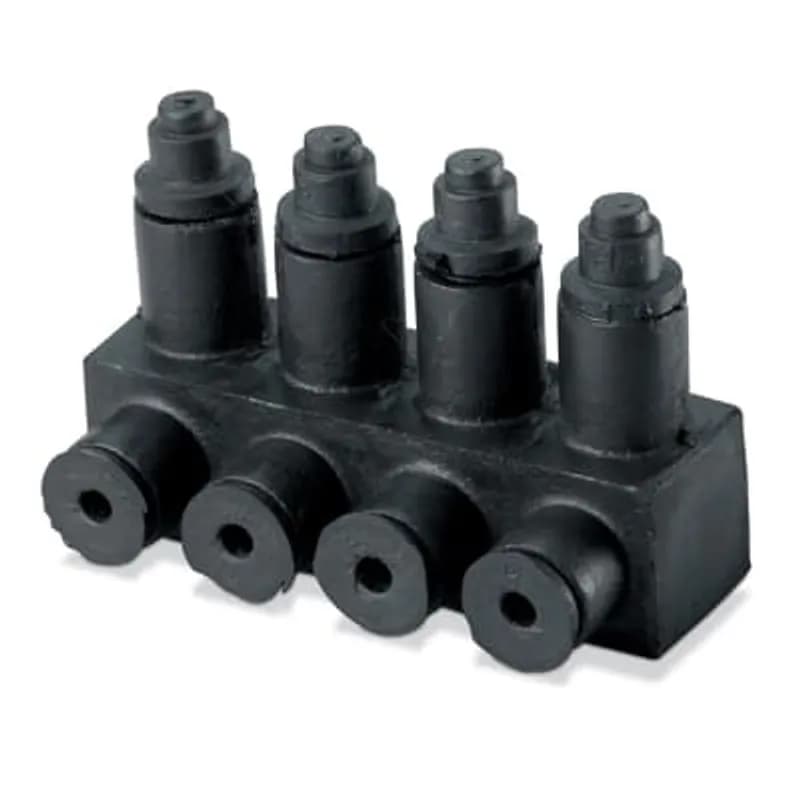

ABB Installation Products RAB 1/0-5 Aluminum Flood-Seal, Multi-Port Connector, RAB 1/0 Series, Conductor Range #14 - 1/0.…
UPC: 783786851225
Documents & Media
Contact for Pricing
Minimum Qty: 75
Multiplier: 75
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Accommodates conductor sizes from #14 AWG to 1/0 AWG (copper or aluminum)
- 600V voltage rating with -40°F to 194°F (-40°C to 90°C) operating range
- Flood-Seal design prevents moisture and contaminant ingress
- Santoprene-coated TPE compound insulation for enhanced durability
- 100% hi-pot tested at 4000V for 60 seconds for safety and reliability
Specifications
Application | Dual-Rated Connector |
Color | Black |
Conductor Range | #14 to 1/0 AWG |
Connection | Mechanical |
Environmental Conditions | Waterproof |
Insulation | yes |
Material | 6061-T6 Aluminum Connector, Santoprene Body |
Number Of Conductors | 5 |
Number of Poles | 5 |
Size | Length 4-9/32 inches |
Special Features | High Performance, Dual Rated Connectors |
Standard | RUS Accepted |
Type | Aluminum Flood-Seal Multi-Port Connector RAB 1/0 Series |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0400 L |
Package Weight (Metric) | 0.0180 kg |
RAB 1/0-3 OP
Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Three Conductor, Orange Plug instead of Black
RAB 4 C
Aluminum Multi-Port Connectors - RAB 350 Series, conductor range #12 Solid - 350 kcmil, length 4-13/16 inch, Oxide Inhibitor. 4 Outlets, Cap is attached by Strap.
2042-4 W/JAMNUT
Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 5/8-11 UNC-2B with .875 inch Outside Diameter. Pad 7.5 inch long x 3.375 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter. Includes Brass 5/8-11 Jam Nut
RABS 16
Aluminum Insulated Mechanical InLine Splice, #6 to #1. Length 6.05 inch x 1.43 inch high. Santoprene Insulation.2042-5 W/JAMNUT
Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 1-14 UNS-2B with 1.192 inch Outside Diameter. Pad 5.5 inch long x 3 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter, includes Brass 1-14 Jam NutRABS 4010
Aluminum Insulated Mechanical InLine Splice, 1/0 to 4/0, Length 7.6 inch x 2.12 inch high. Santoprene Insulation.
RAB 1/0-32 C
Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Five Conductor, with Oxide Inhibitor
2042-8 W/SB 2157 ORG
Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Eight-hole transformer stud adapter, Stud Size 5/8-11 UNC-2B. 8.75 inch Long x 3.5 inch wide x .375 inch thick. Two rows of 4 holes spaced 1.75 inch on center and .562 inch Diameter. Comes with Orange PVC Boot.Frequently Asked Questions
What is the voltage rating of the RAB 1/0-5?
The RAB 1/0-5 has a voltage rating of 600V.
What is the operating temperature range?
The operating temperature range is -40°F to 194°F (-40°C to 90°C).
What are the dimensions of the RAB 1/0-5?
The dimensions are 4.60" x 2.90" (117 mm x 74 mm).
What conductor sizes does the RAB 1/0-5 support?
The RAB 1/0-5 supports conductor sizes from #14 AWG to 1/0 AWG, including both copper and aluminum cables.
How is the RAB 1/0-5 tested for safety?
The connector is 100% hi-pot tested at 4000V for 60 seconds to ensure safety and performance.
What certifications does the RAB 1/0-5 have?
The RAB 1/0-5 is RUS accepted and ANSI C119.1 compliant.
Does the RAB 1/0-5 include installation hardware?
Yes, the RAB 1/0-5 includes all necessary caps and screws for installation.
Is the RAB 1/0-5 suitable for direct burial applications?
Yes, the RAB 1/0-5 is designed for URD direct burial applications.
How to Install the Multi-Seal® RAB 1/0 Series Connector
This guide provides step-by-step instructions for safely installing the Multi-Seal® RAB 1/0 Series connector. It covers preparing the connector cap, stripping and inserting the cable, and torquing the connection. Always follow standard safety practices, wear appropriate insulating gloves, and ensure circuits are not under load when working on energized mains. Installation must be performed by trained installers in accordance with all applicable codes.
Estimated time: 15m
Tools needed:
Torque wrench, Wire strippers, Insulating gloves, Cutting tool
Supplies needed:
Multi-Seal® RAB 1/0 Series Connector, Electrical cable
- Prepare the Connector Cap (if required)
Before starting, ensure you are wearing insulating gloves rated to the appropriate voltage if working on live conductors. If installing #14 to #4 AWG cable, remove the cap from the connector. Cut the cap at the correct cut-off ring for the cable size. Reinsert the cap onto the connector. The cap is not required for #2 to 1/0 AWG cable.
- Remove the Screw Plug
Remove the screw plug from the connector. Set it aside in a safe place as it will be reinserted later.
- Prepare the Cable for Insertion
Measure the required strip length by placing the cable alongside the markings on the bottom of the connector. Using wire strippers, strip the cable to the measured length, ensuring a clean and precise cut.
- Insert the Cable into the Connector
Carefully insert the prepared cable into the connector. For #2 to 1/0 AWG cable, insert it into the tower. For #14 to #4 AWG cable, insert it into the prepared cap. Push the cable firmly until it is fully seated and inserted.
- Replace the Screw Plug
Replace the screw plug into the connector, ensuring it is properly aligned and seated before proceeding to torque.
- Torque the Connector to Specification
Using a calibrated torque wrench, tighten the connector to 80 in/lbs. This ensures a secure and reliable electrical connection. Verify the connection is firm and meets all installation standards.
- Seal Unused Cable Ports
After completing the cable installation and torquing, ensure all unused cable ports on the connector are properly sealed. This is crucial for maintaining the integrity and environmental protection of the connection.
