ABB - Installation Products RAB 4 C - Aluminum Multi-Port Connectors - RAB 350 Series, conductor range #12 Solid - 350 kcmil, length 4-13/16 inch, Oxide Inhibitor. 4 Outlets, Cap is attached by Strap.
More images

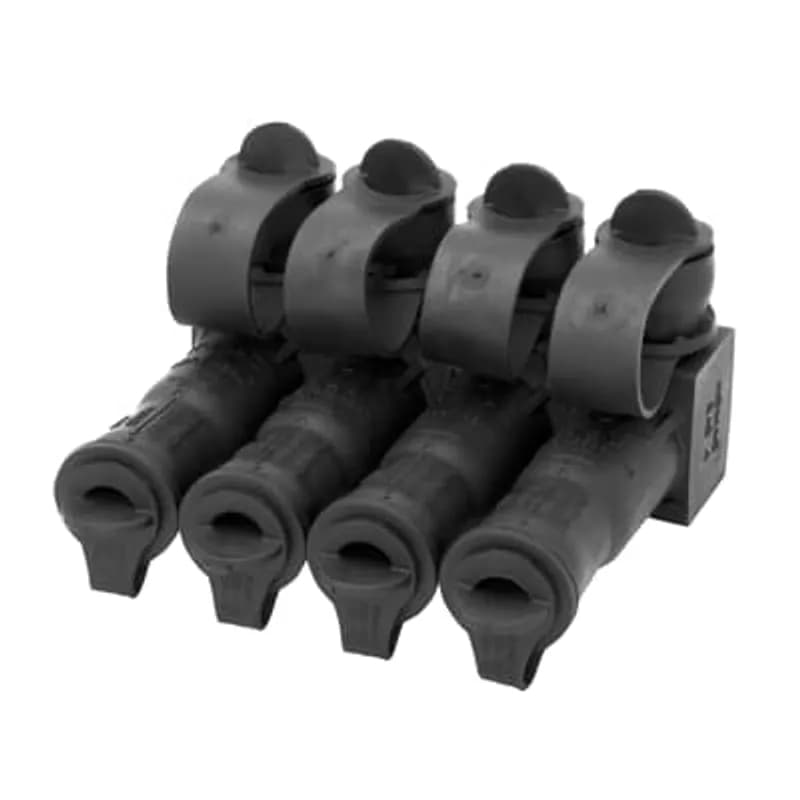

ABB Installation Products RAB 4 C Aluminum Multi-Port Connectors - RAB 350 Series, conductor range #12 Solid - 350 kcmil…

UPC: 783786745173


Documents & Media
BrochureInstallation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB RAB 4 C is a 4-outlet aluminum multi-port connector from the RAB 350 Series, engineered for reliable secondary underground distribution connections. Constructed from high-strength, high-conductivity 6061-T6 aluminum alloy with tin-plated screws, this connector delivers consistent electrical performance across a broad conductor range. It accommodates #12 AWG solid through 350 kcmil copper or aluminum conductors, making it suitable for both residential and commercial URD applications. Key features include a 600 V voltage rating and a temperature range of -40°F to 194°F (-40°C to 90°C), ensuring stable operation in extreme environments. The connector measures 4.60" x 2.90" (117 mm x 74 mm) and is 100% hi-pot tested at 4000 V for 60 seconds to verify dielectric integrity. An integrated oxide inhibitor prevents corrosion, maintaining long-term electrical integrity in direct burial, below-grade boxes, above-grade pedestals, and street light tap applications. The Flood-Seal design provides submersible and resealable connections, ideal for underground distribution systems. The cap is attached by a strap for secure handling and installation efficiency. ANSI C119.1 compliant and RUS accepted, this connector meets industry standards for underground service connections. Choose the ABB RAB 4 C for dependable multi-service terminations in secondary distribution networks.
  • 4 outlets for multi-service connections in URD systems
  • Accommodates #12 AWG solid to 350 kcmil copper or aluminum conductors
  • 600 V rating with -40°F to 194°F operating range
  • 100% hi-pot tested at 4000 V for 60 seconds
  • Flood-Seal design for submersible, resealable underground connections

Specifications

Application
Dual-Rated Connector
Color
Black
Conductor Range
#12 to 350 kcmil
Connection
Mechanical
Connection Type
Multi-Port
Environmental Conditions
Waterproof
Insulation
yes
Material
Aluminum
Material
6061-T6 Aluminum Connector, Santoprene Body
Number of Conductors
4
Number of Poles
4
Poles
4
Series
RAB 350 Series
Size
Length 4-13/16 inches
Size
4-13/16 inch
Special Features
High Performance, Dual Rated Connectors
Standard
RUS Accepted
Type
Aluminum Flood-Seal Multi-Port Connector RAB 350 Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.7600 L
Package Weight (Metric)
0.3450 kg
Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.

RAB 4 OR

Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.
Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 5/8-11 UNC-2B with .875 inch Outside Diameter. Pad 7.5 inch long x 3.375 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter. Includes Brass 5/8-11 Jam Nut

2042-4 W/JAMNUT

Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 5/8-11 UNC-2B with .875 inch Outside Diameter. Pad 7.5 inch long x 3.375 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter. Includes Brass 5/8-11 Jam Nut
Aluminum Insulated Mechanical InLine Splice, #6 to #1. Length 6.05 inch x 1.43 inch high. Santoprene Insulation.

RABS 16

Aluminum Insulated Mechanical InLine Splice, #6 to #1. Length 6.05 inch x 1.43 inch high. Santoprene Insulation.
Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 1-14 UNS-2B with 1.192 inch Outside Diameter. Pad 5.5 inch long x 3 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter, includes Brass 1-14 Jam Nut

2042-5 W/JAMNUT

Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 1-14 UNS-2B with 1.192 inch Outside Diameter. Pad 5.5 inch long x 3 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter, includes Brass 1-14 Jam Nut
Aluminum Insulated Mechanical InLine Splice, 1/0 to 4/0, Length 7.6 inch x 2.12 inch high. Santoprene Insulation.

RABS 4010

Aluminum Insulated Mechanical InLine Splice, 1/0 to 4/0, Length 7.6 inch x 2.12 inch high. Santoprene Insulation.
Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Five Conductor, with Oxide Inhibitor

RAB 1/0-32 C

Multi Seal, Aluminum Insulated Bus Connector, #14 - 1/0, Aluminum and Copper, Five Conductor, with Oxide Inhibitor
Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Eight-hole transformer stud adapter, Stud Size 5/8-11 UNC-2B. 8.75 inch Long x 3.5 inch wide x .375 inch thick. Two rows of 4 holes spaced 1.75 inch on center and .562 inch Diameter. Comes with Orange PVC Boot.

2042-8 W/SB 2157 ORG

Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Eight-hole transformer stud adapter, Stud Size 5/8-11 UNC-2B. 8.75 inch Long x 3.5 inch wide x .375 inch thick. Two rows of 4 holes spaced 1.75 inch on center and .562 inch Diameter. Comes with Orange PVC Boot.
NEMA Transformer Spade Adapters - TSC series, Tin Plated Aluminum, 12 Bolt Holes, - .562 inch Diameter - two Rows of 6 on 1.75 inch centers, spade thickness 3/4 inch x 10.5 inch long x 4 inch wide.

TSC 12 TN

NEMA Transformer Spade Adapters - TSC series, Tin Plated Aluminum, 12 Bolt Holes, - .562 inch Diameter - two Rows of 6 on 1.75 inch centers, spade thickness 3/4 inch x 10.5 inch long x 4 inch wide.

Frequently Asked Questions

What certifications do these connectors meet?

The Homac RAB 350 series connectors are RUS accepted and ANSI C119.1 compliant.

What is the length of the RAB 4 C connector?

The RAB 4 C connector has a length of 4.82 inches (122 mm).

How many outlets does the RAB 4 C connector have?

The RAB 4 C connector is designed with 4 outlets.

What cable sizes are compatible with RAB 350 connectors?

They are compatible with #12 AWG solid through 350 kcmil cables, for both copper or aluminum conductors.

What is the operating temperature range?

These connectors can operate in a temperature range from -40 °F to 194 °F (-40 °C to 90 °C).

What is the voltage rating for these connectors?

The Homac RAB 350 series connectors have a voltage rating of 600 V.

What is the operating temperature range?

These connectors can operate in a temperature range from -40 °F to 194 °F (-40 °C to 90 °C).

What is the voltage rating for these connectors?

The Homac RAB 350 series connectors have a voltage rating of 600 V.

What certifications do these connectors meet?

The Homac RAB 350 series connectors are RUS accepted and ANSI C119.1 compliant.

How many outlets does the RAB 4 C connector have?

The RAB 4 C connector is designed with 4 outlets.

How to Install RAB 350 Series Electrical Connectors

This guide provides step-by-step instructions for installing RAB 350 Series electrical connectors. Installation must be performed by trained installers in accordance with all applicable electrical codes and safety rules. Always follow standard safety practices, wear appropriate insulating gloves, and ensure circuits are de-energized or not under load.

Estimated time: 20m

Tools needed:

Wire strippers, Torque wrench

Supplies needed:

RAB 350 Series Connector, Electrical Cable

  1. Prepare the Rocket for Cable Insertion

    Determine if the rocket is required for your cable size. If installing 300/350 kcmil cable, the rocket is not needed. For #12 to 250 kcmil cables, first remove the rocket, then cut it at the marked ring, and finally reinsert it into the connector.

  2. Strip the Cable Insulation

    Place the electrical cable alongside the markings on the connector's tower to measure the correct strip length. Using wire strippers, carefully strip the cable insulation to the measured length, ensuring a clean cut.

  3. Insert the Cable into the Connector

    Insert the stripped cable into the appropriate part of the connector: either the tower (for 300 to 350 kcmil cables) or the reinserted rocket (for #12 to 250 kcmil cables). Push the cable until the end of the conductor is visible through the connector's window.

  4. Remove the Screw Plug

    Locate the screw plug on the connector and remove it by pulling its attached tether. This action will expose the internal torque screw for tightening.

  5. Torque the Connector to Specification

    Using a torque wrench, tighten the connector to the values specified on the tether. Apply 120 in-lb for #12 to #3 AWG cables, or 240-350 in-lb for #2 to 350 kcmil cables. Ensure the connector is securely tightened to prevent loose connections and ensure proper electrical contact.

  6. Replace Screw Plug and Reseal

    After torquing the connector, replace the screw plug. Then, reseal the connector by installing the attached plug to ensure environmental protection and maintain the integrity of the insulation.
