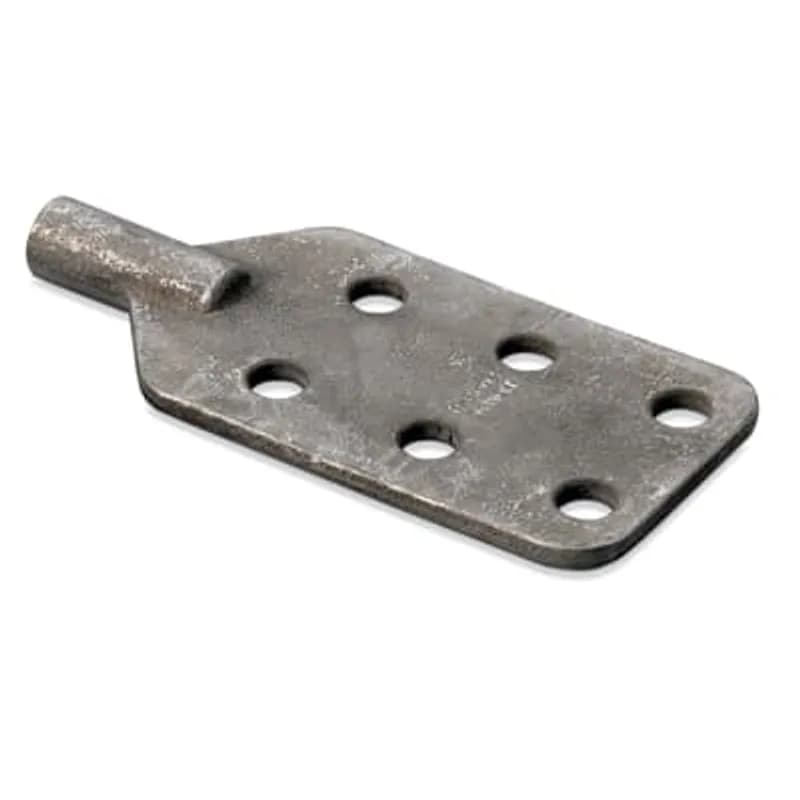

ABB - Installation Products 2042-4 W/JAMNUT - Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 5/8-11 UNC-2B with .875 inch Outside Diameter. Pad 7.5 inch long x 3.375 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter. Includes Brass 5/8-11 Jam Nut

ABB Installation Products 2042-4 W/JAMNUT Brass Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections…

UPC: 783786763627


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 2042-4 W/JAMNUT is a brass tin-plated threaded transformer stud adapter designed for NEMA pad-style connections. This adapter features a silver-brazed 5/8-11 UNC-2B stud with a 0.875-inch outside diameter, providing a secure and conductive interface for transformer installations. The adapter includes a brass 5/8-11 jam nut for locking the stud in place, ensuring stability during operation. The unit includes a 7.5-inch long x 3.375-inch wide x 0.25-inch thick mounting pad with two rows of three holes each. The holes are spaced 1.75 inches on center and have a diameter of 0.562 inches, allowing for easy alignment and secure fastening to transformer bases. The brass construction with tin plating offers corrosion resistance and reliable electrical conductivity, making it suitable for industrial and utility applications where durability and performance are critical. This adapter is ideal for connecting transformers to NEMA pad-style mounting systems, ensuring a tight and conductive joint. The included jam nut simplifies installation and maintenance by preventing loosening under vibration or thermal cycling. The product is manufactured by ABB Installation Products, a trusted name in electrical infrastructure solutions.
  • Brass tin-plated construction with silver-brazed 5/8-11 UNC-2B stud
  • Includes brass 5/8-11 jam nut for secure locking
  • 7.5" x 3.375" x 0.25" mounting pad with two rows of three 0.562" holes
  • Hole spacing: 1.75" on center for NEMA pad compatibility
  • Designed for transformer-to-NEMA pad connections in industrial applications

Specifications

Application
NEMA Pad-Style Connections
Connection
Threaded
Connection Type
Threaded Transformer Stud Adapter
Finish
Tin Plated
Insulation
False
Material
Brass
Nema Rating
NEMA pad-style
Size
Pad 7.5 inch long x 3.375 inch wide x .25 inch thick
Size
Size 5/8-11 UNC-2B with .875 inch Outside Diameter, Pad 7.5 inch long x 3.375 inch wide x .25 inch thick, Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter
Special Features
NEMA Spacing of 1.75 inch Centers, includes Brass 5/8-11 Jam Nut
Type
Threaded Transformer Adapter - Stud to Flat
Width
3.375 in
Width
85.725 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.6600 L
Package Weight (Metric)
0.7530 kg
