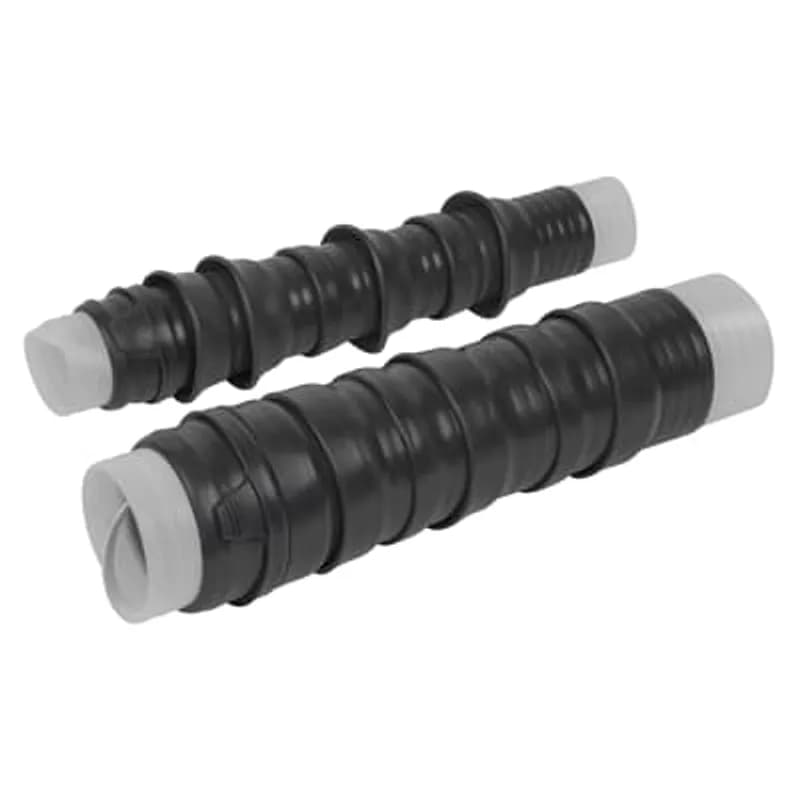

ABB Installation Products R2T28J4N2330-B3 Ranger2 Termination for 25/28 kV Outdoor Application, Cable Insulation Diameter 1.30…
UPC: 075114407700
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Terminates 25/28 kV outdoor cable with 1.30-2.10" insulation diameter
- Compatible with concentric neutral and jacketed concentric neutral cables
- Includes copper 2-hole spade connector for #2-1250 kcmil conductors
- Stainless steel mounting bracket (1.45-1.95" / 37-50mm) for outdoor durability
- Designed for stranded, compressed, or compact solid conductors up to 600 kcmil
Specifications
Application | Cable Termination, Outdoor Application, 25/28kV |
Cable Type | Concentric Neutral Wire |
Color | Gray |
Conductor Size | 500 STR/COMPR kcmil , 600 COMPT/SOL kcmil |
Connection Type | 2-Hole Spade connector |
Earthing | Products Includes Their Own Grounding System |
Material | Copper, Stainless Steel |
Mounting Type | Stainless Steel Mounting Bracket |
Series | Ranger2 |
Size | Cable Insulation Diameter 1.30 - 2.10 inches |
Special Features | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
Standard | IEEE 48 |
Type | Cable Termination - Outdoor - Ranger2 |
Voltage Rating | 25 to 28 kV |
Voltage Rating | 25/28 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
R2T15M4N2330-B3
Ranger2 Termination. Type - Outdoor, 15kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - 1.30 inch - 2.10 inch, Connector Type - Copper 2-Hole Spade #2-1250 kcmil, Conductor Code - 330 -Stranded or Compressed 500 Compact or Solid 600. Cable Mounting Bracket - B3 - Stainless Steel - Size 1.45 inch - 1.95 inch.
R2T15M4-N2400-B3
Ranger2 Termination for 15KV outdoor application, cable insulation diameter 1.30 - 2.10 inches for Cable Type - Tape Shield/Wire Shield/Unshield Cable, Copper 2-Hole Spade #2-1250kcmil, Stranded or Compressed 900 /Compact or Solid 1000. - Cable Mounting Bracket - Stainless Steel, 1.45 inch - 1.95 inch (37-50mm)R2T15J4-N0380-B4
Ranger2 Termination for 15KV outdoor application, cable insulation diameter 1.30 - 2.10 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Wire Size Stranded or Compressed 750 kcmil / Compact or Solid 900 kcmil. Stainless Steel Mounting Bracket 1.80 inch - 2.40 inch (45-61mm)R2T15J2-N2360-B3
Ranger2 Termination, Outdoor, 15kv, Cable Type - Concentric Neutral/Jacketed Concentric Neutral, Insulation Range - .84 inch - 1.38 inch (21mm-35mm), Connector Type - N2 - Copper 2-Hole Spade #2-1250 kcmil, 650 Stranded/Compressed or 750 Compact/Solid, B3 - Cable Mounting Bracket - Stainless Steel - 1.45 inch - 1.95 inch (37-50mm)R2T15J4-N2440
Ranger2 Termination for 15KV outdoor application, cable insulation diameter 1.30 - 2.10 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Tinned Copper 2-Hole Spade #2-1250kcmil, Stranded or Compressed 1250 kcmil.
R2T35M2H0240
Outdoor Ranger2 Cable Termination. 35kV, Cable Type - Tape Shield/Wire Shield/UniShield. Insulation Range - .84 inch - 1.38 inch. Aluminum 1-Hole Spade #2-500 kcmil, Conductor 1/0 Stranded/Compressed AWG or 2/0 Compact/Solid AWG
R2T28M2-H0300
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .84 inch - 1.38 inch, Connector Type - Tinned Aluminum 1-Hole Spade #2-500 kcmil, Conductor Code - 300 -Stranded or Compressed 350 kcmil, Compact or Solid 400 kcmil.
69TCT212141PBBN
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 1 (Bore Diameter 1.55 inch, Insulation Range 1.65 to 1.9 inch), Connection Type - 2-Hole NEMA, Connector Type - Aluminum, Conductor Size Code 41P - 1.101 to 1.152 inch, Metallic Screen Kit - 1/0 Bonding Cable 6 foot with Two Split Bolts, Armor Kit - Heat Shrink, No Bracket RequiredFrequently Asked Questions
What cable insulation diameters does the R2T15 cover?
The R2T15 covers cable insulation diameters from 0.64 in (16 mm) to 2.10 in (53 mm).
What cable types are compatible with the R2T15?
The R2T15 accommodates popular XLP and EPR cable types and various shield constructions.
What is the voltage rating of the R2T15?
The R2T15 has a voltage rating of 15 kV.
What is the operating ambient temperature range?
The R2T15 operates within an ambient temperature range of -22 to +149 °F (-30 to +65 °C).
What is the compatible power system frequency?
The R2T15 is compatible with a power system frequency range of 48 to 62 Hz.
What is the maximum altitude for R2T15 operation?
The R2T15 can operate at a maximum altitude of 3300 feet (1005 m).
What are the mounting options for the R2T15?
The R2T15 can be free hanging or mounted using an optional bracket.
Where can I find installation instructions for R2T15?
Installation instructions are IS-1134 for R2T15J, IS-1135 for R2T15M, and IS-1136 for R2T15L.
What is the lightning impulse withstand voltage?
The lightning impulse (BIL Dry 110 Withstand) voltage for the R2T15 is 110 kV Crest.
What is the 1-minute dry withstand voltage?
The 1-minute dry (60Hz) withstand voltage for the R2T15 is 50 kV.
How to Install the 15kV Ranger 2 Cable Termination (R2T15J4 Series)
This guide provides step-by-step instructions for the installation of 15kV Ranger 2 Cable Terminations (R2T15J4 series) for both indoor and outdoor applications on concentric and jacketed concentric neutral cables. Ensure all apparatus is de-energized before beginning installation.
Estimated time: 1h
Tools needed:
Cable strippers, Crimping tool, Utility knife, Cleaning rags
Supplies needed:
Silicone rubber termination, Silicone lubricant, Grey silicone rubber tape, Sealing mastic, Gloves, Connector/Lug, Vinyl tape or binding wire, Approved solvent, Aluminum oxide abrasive (optional)
- Prepare the Cable
DANGER: All apparatus must be de-energized during installation or removal of parts. Verify the cable size fits within the kit's specified range. Train the cable into its final position and cut it to the required length, ensuring sufficient neutral wire length for grounding connections. Prepare the cable according to the specified dimensions, allowing for terminal lug depth and additional conductor length for aluminum lug crimping. Carefully wrap one band of sealing mastic around the cable jacket 1/4 inch (6mm) from the jacket end, using a 50% stretch, and cut it flush without overlapping. Bend the neutral wires back over the mastic, press them into the mastic, and secure them to the cable jacket 4-6 inches (100-150mm) from the cut edge using vinyl tape or binding wire. Apply a second mastic band over the neutral wires and the first mastic band, using a 50% stretch, and cut it flush. Finally, wrap two half-lapped layers of vinyl tape around the mastic seal, carefully maintaining the 1/4 inch (6mm) dimension.
- Install the Lug or Connector
If using a lug that will not fit through the termination core, clean the insulation and slide the termination onto the cable before installing the lug; do not remove the core at this time. Position the connector or lug and crimp it according to the manufacturer's directions. Do not crimp the last 1/4 to 3/8 inch of the connector. After crimping, remove any excess oxide inhibitor and sharp crimp flashings.
- Clean Cable Insulation and Lug Barrel
Wipe the cable insulation with an approved solvent, ensuring the solvent does not touch the semi-con insulation shield. If an abrasive must be used, apply it only to the insulation, not the semi-con insulation shield. Use only aluminum oxide abrasive, grit 120 or finer, and be careful not to reduce the cable insulation diameter below the kit's allowed range.
- Install the Termination
Wrap a band of gray silicone rubber tape around the base of the terminal lug to create a track-resistant moisture seal, adjusting the number of layers based on the barrel diameter relative to the cable primary insulation. Liberally coat the edge of the semi-con insulation shield with silicone grease to fill the step at the semi-con cut-off. For lower terminations with a fold-down skirt, pull the loose end of the removable core through the top of the termination until it is flush with the bottom. Slide the termination body onto the cable, aligning it with the forward edge of the mastic seal. Carefully remove the core by unwinding it counter-clockwise from the loose end, ensuring the termination body is butted against the leading edge of the mastic seal without pushing or pulling the assembly. Apply a thin film of silicone lubricant to the skirt and mastic seal area (do not lubricate skirt tabs), then carefully fold down the skirt over the mastic seal. Use the remaining gray silicone rubber tape to complete the moisture seal in the lug area, overlapping the termination insulator by approximately 1 inch and extending the tape wrapping over a non-crimped region of the lug/connector barrel with a half-lap configuration. Twist the concentric neutral wires together and connect them to the system ground. Finally, confirm that the High-K step does not exceed 1.5 inches.
