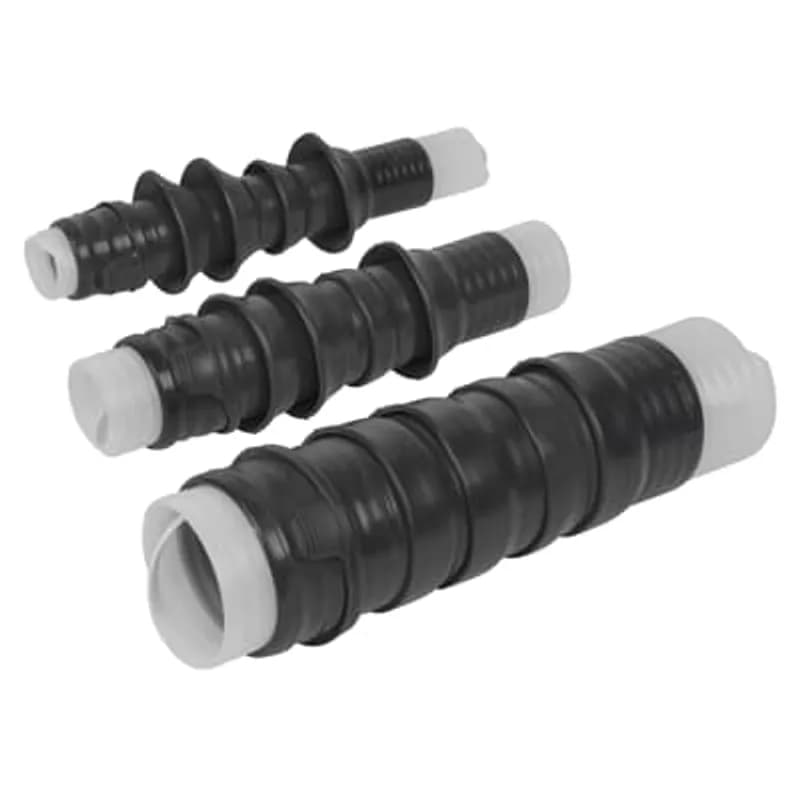

ABB Installation Products R2T15M4-N2400-B3 Ranger2 Termination for 15KV outdoor application, cable insulation diameter 1.30 - 2.10…
UPC: 075114420761
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV outdoor termination for tape shield, wire shield, and unshielded cables (1.30–2.10in insulation diameter)
- Copper 2-hole spade connector compatible with #2 AWG to 1250kcmil conductors (stranded/compressed: 900kcmil max; compact/solid: 1000kcmil max)
- Stainless steel cable mounting bracket (1.45–1.95in diameter) for secure outdoor installation
- Non-tracking silicone housing with shrink-fit technology and pull-down jacket seal for easy field installation
- Four sheds for superior creepage/strike distances; IEEE Class 1A outdoor classification; 110kV BIL (dry) withstand
Specifications
Application | Cable Termination, Outdoor Application, 15kV |
Cable Type | Copper Tape Shielded Wire |
Color | Gray |
Conductor Size | 900 to 1000 kcmil |
Earthing | Products Includes Their Own Grounding System |
Mounting | Product Needs to have Cable Holder (not included) |
Number Of Terminals | (1) Single Phase |
Special Features | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
Standard | IEEE 48 |
Type | Cable Termination - Outdoor - Ranger2 |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |

PCT10240-3
15kV, Single Piece Terminator (Class 1), Two-Hole Spade Lug. Power Cable Termination, Conductor Size - 1/0 Stranded/Compressed or 2/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.
R2T15J4-N0380-B4
Ranger2 Termination for 15KV outdoor application, cable insulation diameter 1.30 - 2.10 inches for Concentric Neural and Jacketed Concentric Neutral Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Wire Size Stranded or Compressed 750 kcmil / Compact or Solid 900 kcmil. Stainless Steel Mounting Bracket 1.80 inch - 2.40 inch (45-61mm)
R2T15J2-N2360-B3
Ranger2 Termination, Outdoor, 15kv, Cable Type - Concentric Neutral/Jacketed Concentric Neutral, Insulation Range - .84 inch - 1.38 inch (21mm-35mm), Connector Type - N2 - Copper 2-Hole Spade #2-1250 kcmil, 650 Stranded/Compressed or 750 Compact/Solid, B3 - Cable Mounting Bracket - Stainless Steel - 1.45 inch - 1.95 inch (37-50mm)
R2T15J4-N2440
Ranger2 Termination for 15KV outdoor application, cable insulation diameter 1.30 - 2.10 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Tinned Copper 2-Hole Spade #2-1250kcmil, Stranded or Compressed 1250 kcmil.
R2T35M2H0240
Outdoor Ranger2 Cable Termination. 35kV, Cable Type - Tape Shield/Wire Shield/UniShield. Insulation Range - .84 inch - 1.38 inch. Aluminum 1-Hole Spade #2-500 kcmil, Conductor 1/0 Stranded/Compressed AWG or 2/0 Compact/Solid AWG
R2T28M2-H0300
Ranger2 Termination. Type - Outdoor, 28kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .84 inch - 1.38 inch, Connector Type - Tinned Aluminum 1-Hole Spade #2-500 kcmil, Conductor Code - 300 -Stranded or Compressed 350 kcmil, Compact or Solid 400 kcmil.
69TCT212141PBBN
69kV, Transmission Cable Terminator, Base and Top Module, Housing Size 1 (Bore Diameter 1.55 inch, Insulation Range 1.65 to 1.9 inch), Connection Type - 2-Hole NEMA, Connector Type - Aluminum, Conductor Size Code 41P - 1.101 to 1.152 inch, Metallic Screen Kit - 1/0 Bonding Cable 6 foot with Two Split Bolts, Armor Kit - Heat Shrink, No Bracket Required
R2T35J4-N0440
Ranger2 Termination for 35KV outdoor application, cable insulation diameter 1.30 - 2.10 inches for Concentric Neutral and Jacketed Concentric Neutral Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 1250.Frequently Asked Questions
What cable insulation diameters does this termination support?
The termination supports cable insulation diameters from 1.30 to 2.10 inches.
What types of cable shielding are compatible?
Tape shield, wire shield, and unshielded cables are all compatible with this termination.
What is the material of the mounting bracket?
The mounting bracket is made of stainless steel for corrosion resistance.
What is the size range for the mounting bracket?
The stainless steel mounting bracket fits sizes from 1.45 to 1.95 inches (37-50mm).
Is this termination suitable for outdoor use?
Yes, the Ranger2 Termination is designed for outdoor applications.
What voltage rating does this termination support?
This termination is rated for 15KV applications.
How to Install the 15kV Ranger 2 Shrink Fit Silicone Rubber Termination (R2T15M4)
This guide provides step-by-step instructions for installing the 15kV Ranger 2 Shrink Fit Silicone Rubber Termination (R2T15M4) on high-voltage cables. It covers essential procedures including cable preparation, ground braid installation, lug connection, and the final placement and sealing of the termination body for various shielded cable types.
Estimated time: 1h 30m
Tools needed:
Crimping tool, Wire strippers, Cable preparation tools, Approved solvent, Aluminum oxide abrasive (120 grit or finer)
Supplies needed:
Silicone Rubber Termination (R2T15M4), Silicone Lubricant, Gray Silicone Rubber Electrical Tape, Constant Force Spring, Preformed Ground Braid, Sealing Mastic, Copper Foil Tape, Vinyl Tape, Terminal Lug/Connector, Gloves
- Prepare the Cable
DANGER: All apparatus must be de-energized during installation or removal of parts. Ensure the cable size fits within the termination's insulation range. Train the cable into position and cut it to the required length. Prepare the cable by removing the jacket and semi-conductive layer according to the specified dimensions, allowing for terminal lug depth and aluminum lug growth. For tape shield cables, hold down the tape shield edge with copper foil tape. For wire shield cables, bend the leading 1-1/2 inches (38mm) of exposed shield wires back to the jacket edge. For UniShield® cables, install a constant force spring, pull shield wires through, remove the spring, bend shield wires back 1 inch (25mm), cut excess, and remove the semi-conductive jacket without belling.
- Install the Ground Braid
Carefully wrap one band of mastic around the cable jacket 1/4 inch (6mm) from the jacket end, using 50% stretch. Position the preformed ground braid with the short tail over the cable shield and the solder block centered over the mastic strip. Secure the ground braid to the cable jacket using vinyl tape and press the solder block into the mastic. Apply a second mastic band over the solder block and the previously applied mastic, maintaining the 1/4 inch (6mm) dimension. Wrap two half-lapped layers of vinyl tape around the mastic seal. Wrap the ground braid around the cable shield one complete wrap, trim any excess to prevent overlap, and secure it in place with the constant force spring. Wrap the spring in the same direction as the ground braid, cinch it after the final winding, and secure it with two wraps of vinyl tape.
- Install the Lug or Connector
Check to ensure the termination assembly fits over the selected lug. If the lug will not fit through the termination core, clean the insulation and slide the termination onto the cable before installing the lug. Position the connector/lug and crimp it according to the manufacturer’s directions. For tape and wire shield cables, do not crimp the last 3/8 inch to 1/2 inch of the connector. Remove any excess oxide inhibitor and all sharp crimp flashings and edges following crimping.
- Clean Cable Insulation and Lug Barrel
Wipe the cable insulation with an approved solvent. Do not allow the solvent to touch the semi-conductive insulation shield. If abrasive must be used, apply it only to the insulation, not the semi-conductive shield. Use only aluminum oxide abrasive, grit 120 or finer, and be careful not to reduce the cable insulation diameter below that allowed by the kit.
- Install the Termination Body and Seal
Create a track-resistant moisture seal between the termination insulator and the lug/connector using gray silicone rubber electrical tape. Wrap a band of silicone tape around the base of the terminal lug, ensuring it does not exceed two layers, or build it up to the insulation diameter if the barrel is smaller. Cover the edge of the semi-conductive insulation shield with a liberal coating of silicone grease to fill the step. For lower terminations with a fold-down skirt, pull the loose end of the removable core through the top until the core is flush with the bottom of the termination. Slide the termination body onto the cable, aligning it with the forward edge of the mastic seal. Carefully remove the core by unwinding counter-clockwise, ensuring the termination body, not the core, is butted against the leading edge of the mastic seal. Do not push or pull on the termination assembly while removing the core. Apply a thin film of silicone lubricant to the skirt and mastic seal area, avoiding the skirt tabs. Carefully fold down the skirt over the mastic seal. Complete the lug area moisture seal using the remaining gray silicone rubber electrical tape, overlapping the termination insulator by approximately 1 inch and extending over a non-crimped region of the lug/connector barrel with a half-lap configuration. Connect the ground braid to the system ground. Confirm that the High-K step does not exceed 1.5 inches.
