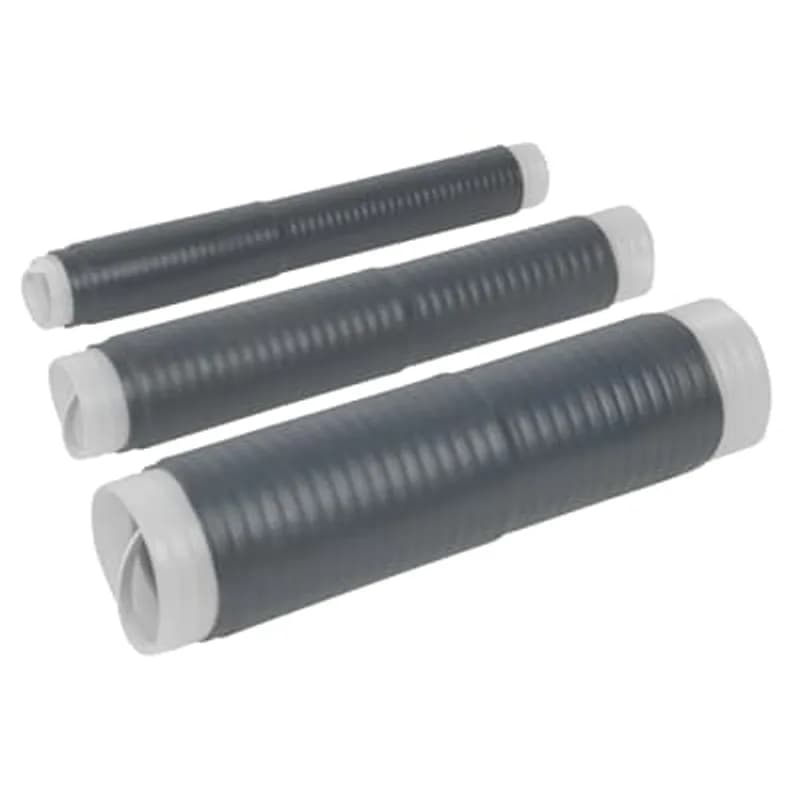

ABB Installation Products R2IT15M1N2270 Ranger2 Termination for 15KV indoor application, cable insulation diameter .64 - 1.12…
UPC: 075114256148
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15KV indoor application rating
- Accommodates cable insulation diameter .64 - 1.12 inches
- Compatible with Tape Shield, Wire Shield, and Unshielded cable types
- Copper 2-hole spade connector for #2 - 1250 kcmil conductors
- Supports stranded/compressed 4/0 AWG and compact/solid 250 kcmil cable
Specifications
Application | Cable Termination, Indoor Application, 15kV |
Cable Type | Copper Tape Shielded Wire |
Color | Gray |
Conductor Size | 4/0 AWG , 250 kcmil |
Connection Type | 2-Hole Spade |
Current Rating | 1250kcmil |
Earthing | Products Includes Their Own Grounding System |
Material | Copper |
Mounting | Product Need to have Cable Holder (not included) |
Number Of Terminals | (1) Single Phase |
Series | Ranger2 |
Size | 0.64 - 1.12 inches |
Special Features | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
Standard | IEEE 48 |
Type | Cable Termination - Indoor - Ranger2 |
Voltage Rating | 15 kV |
Voltage Rating | 15kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
R2T15J2-N0270
Ranger2 Termination for 15KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable. Aluminum 2 Hole Spade #2-1250kcmil, Stranded or Compressed 4/0 /Compact or Solid 250.R2IT15J1-H0310
Ranger2 Termination for 15KV indoor application, cable insulation diameter .64 - 1.12 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Aluminum 1-Hole Spade #2-500kcmil, Stranded or Compressed 400, / Compact or Solid 500.R2T15J2-N2330-B3
Ranger2 Termination, Outdoor, 15kv, Cable Type - Concentric Neutral/Jacketed Concentric Neutral, Insulation Range - .84 inch - 1.38 inch (21mm-35mm), Connector Type - N2 - Copper 2-Hole Spade #2-1250kcmil, 500 Stranded/Compressed or 600 Compact/Solid, B3 - Cable Mounting Bracket - Stainless Steel - 1.45 inch - 1.95 inch (37-50mm)R2IT15M1N2220
Ranger2 Termination, Indoor, 15kv, Cable Type - Tape Shield/WireShield/UniShield, Insulation Range - .64 ich - 1.12 inch (16mm-28mm), Connector Type - N2 - Copper 2-Hole Spade #2-1250kcmil, Conductor Size #2 Stranded/Compressed or #1 Compact/Solid, No Cable Mounting BracketR2IT15J1-N0270-B2
Ranger2 Termination for 15KV indoor application, cable insulation diameter .64 - 1.12 inches for Concentric Neural and Jacketed Concentric Neutral Cable. Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil. Conductor Code 270 - Stranded 4/0, Solid 250. Cable Mounting Bracket - B2 -Stainless Steel, 1.10-1.50 inches (28-38mm)R2T15J2-T0260
Outdoor Ranger2 Cable Termination. 15kV, Cable Type - Concentric Neutral/Jacketed Concentric Neutral. Insulation Range - .84 inch - 1.38 inch. Universal Aluminum Barrel for AL or CU Conductor with Copper Wire Lead #2-4/0, Conductor 3/0 Stranded/Compressed or 4/0 Compact/Solid
R2T35M2H0220
Outdoor Ranger2 Cable Termination. 35kV, Cable Type - Tape Shield/Wire Shield/UniShield. Insulation Range - .84 inch - 1.38 inch. Aluminum 1-Hole Spade #2-500 kcmil, Conductor #2 Stranded/Compressed or #1 Compact/SolidR2IT15J1-N0300
Indoor Ranger2 Cable Termination. 15kV, Cable Type - Concentric Neutral/Jacketed Concentric Neutral. Insulation Range - .64 inch - 1.12 inch. Aluminum 2-Hole Spade #2-1250 kcmil, Conductor 350 Stranded/Compressed or 400 Compact/SolidFrequently Asked Questions
What cable insulation diameters does the Ranger2 termination support?
The Ranger2 termination supports cable insulation diameters ranging from .64 to 1.12 inches.
What cable types are compatible with this ABB termination?
This ABB termination is compatible with Tape Shield, Wire Shield, and Unshielded cable types.
What conductor sizes can be terminated with the copper spade?
The copper 2-hole spade connector supports cable sizes from #2 AWG up to 1250 kcmil, including stranded or compressed 4/0 AWG and compact or solid 250 kcmil.
Is this termination suitable for outdoor use?
The catalog description specifies this termination is for 15KV indoor application only.
How to Install the 15kV Ranger 2 Shrink Fit Silicone Rubber Termination for Tape Shielded Cable
This guide provides step-by-step instructions for the indoor installation of the 15kV Ranger 2 Shrink Fit Silicone Rubber Termination on tape shielded cables, including cable preparation, ground braid installation, and termination placement. This kit does not restore a moisture-resistant seal.
Estimated time: 1h
Tools needed:
Crimping tool, Wire strippers, Solvent, Aluminum oxide abrasive (grit 120 or finer, if needed)
Supplies needed:
15kV Ranger 2 Shrink Fit Silicone Rubber Termination kit (includes termination, ground braid, constant force spring, lubricant, copper foil tape, gloves), Vinyl tape, Terminal lug or connector, Oxide inhibitor
- Verify Cable Compatibility and De-energize System
Verify the cable size fits within the insulation range specified in the Termination Selection Chart. DANGER: Ensure all apparatus is de-energized during installation or removal of parts. Do not touch or move energized products in the work area. Failure to follow these instructions will result in damage to the product and serious or fatal injury.
- Prepare Cable End
Train the cable into position and cut it to the required length. Remove the cable jacket to 9-1/4" (235mm). Remove the tape shield to 3/4" (19mm) from the semi-conductive insulation shield. Secure the edge of the tape shield with a single wrap of the supplied copper foil tape to prevent unrolling. Allow for the depth of the terminal lug plus any growth allowance for aluminum lugs.
- Install Ground Braid
Wrap one band of vinyl tape around the cable jacket 1/4” (6mm) from the jacket end to serve as a marker. Position the preformed ground braid with the short tail over the tape shield and the solder block centered over the vinyl tape marker. Secure the ground braid to the cable jacket with vinyl tape. Apply a second vinyl tape band directly over the first marker and the ground braid solder block, maintaining the 1/4” (6mm) dimension. Wrap the ground braid around the cable tape shield for one complete wrap, trim any excess to prevent overlap, and secure it in place with the constant force spring. Secure the constant force spring with two wraps of vinyl tape.
- Install Lug or Connector
Check that the termination assembly fits over the selected lug. If the lug will not fit through the termination core, clean the insulation and slide the termination onto the cable before installing the lug (do not remove the core yet). Position the connector or lug and crimp it according to the manufacturer's directions, leaving the last 3/8” to 1/2” uncrimped. Remove any excess oxide inhibitor and all sharp crimp flashings or edges after crimping.
- Clean Cable Insulation and Lug Barrel
Wipe the cable insulation with solvent-saturated pads, ensuring solvent does not touch the semi-conductive insulation shield. If abrasive cleaning is necessary, use only aluminum oxide abrasive (grit 120 or finer) on the insulation only. Do not use abrasive on the semi-conductive insulation shield and be careful not to reduce the cable insulation diameter.
- Install Termination Body
Apply a liberal coating of silicone grease to the edge of the semi-conductive insulation shield to fill the step at the cut-off. Slide the termination body onto the cable, aligning its edge with the forward edge of the vinyl tape marker. Carefully begin to remove the core by pulling counter-clockwise. Recheck the termination position and continue removing the core. Do not push or pull on the termination assembly during core removal.
- Connect Ground Braid
Connect the ground braid to the system ground.
