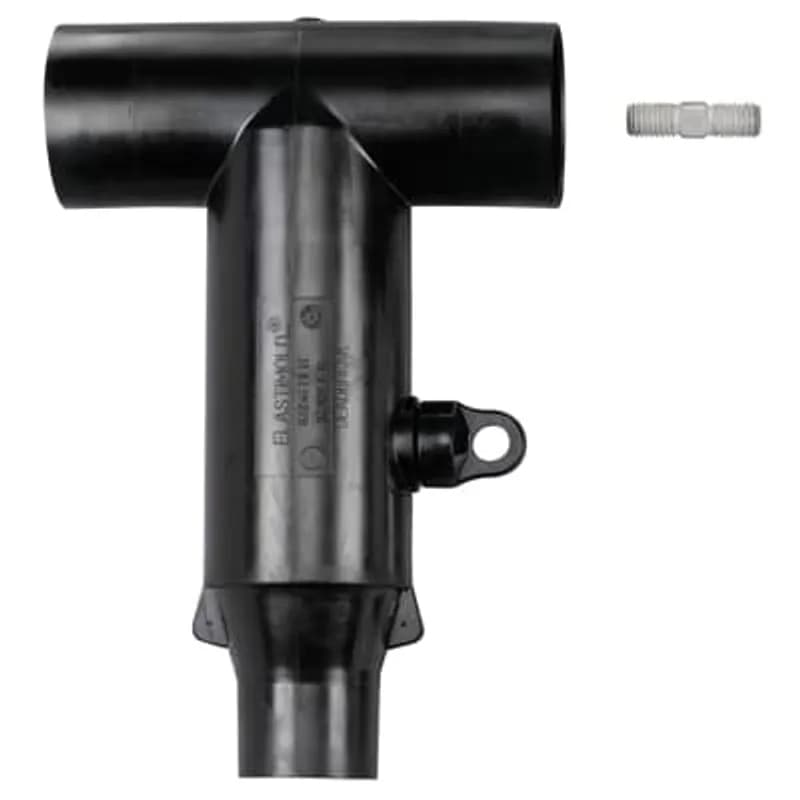

ABB Installation Products K676BLR 15/25kV, 900 Amp, Deadbreak, Replacement Elbow Housing with Test Point
UPC: 783786659616
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25kV voltage class with 900 Amp continuous current rating
- Integrated test point for safe circuit verification without disconnection
- Fully shielded, molded rubber housing with 100% peroxide-cured EPDM construction
- Meets ANSI/IEEE Standard 386 with 95kV BIL impulse withstand rating
- Compatible with Elastimold series components (e.g., K671CP, K675BIP, K675RTW)
Specifications
Application | 15/25 kV, 900 Amps |
Connection Type | Deadbreak |
Current Rating | 900 A |
Material | EPDM |
Material | Copper |
Series | K676BLR |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Elbow with Test Point |
Voltage Rating | 15/25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 4.1500 L |
Package Weight (Metric) | 1.8820 kg |
GG40250-2030
E-Z-Ground Ground Grid Copper Compression Connector, Cable Range 4/0 or 250 kcmil, Ground Rod 1/2 and 5/8 Inch, Direct Burial
80024
Grounding pigtail with an insulated lead and a GSH grounding screw on one end. It is designed to make grounding an electrical circuit fast and easy. The lead is 9 inches long and uses 10 AWG wire.
776BGADDRK-S
35 kv, 600 Amp, Deadbreak, Ball Grounding Device Kit, includes Grounding Device with 1 inch Ball, Stud, Insulated Cap with Test Point.
776BGADDR
35 kv, 600 Amp, DeadBreak, Insulated Cap with Test Point, Fits 1 inch Ball Grounding Device
Frequently Asked Questions
What is the corona extinction voltage for the 28kV class?
For the 28kV voltage class, the corona extinction voltage is 21.5kV AC at 3pC sensitivity.
What is the corona extinction voltage for the 15kV class?
For the 15kV voltage class, the corona extinction voltage is 11kV AC at 3pC sensitivity.
What is the BIL impulse withstand rating for 28kV class?
For the 28kV voltage class, the BIL impulse withstand rating is 140kV (1.2 x 50 microsecond wave).
What is the BIL impulse withstand rating for 15kV class?
For the 15kV voltage class, the BIL impulse withstand rating is 95kV (1.2 x 50 microsecond wave).
What is included in the K676BLR kit?
Each kit contains one K676BLR elbow connector housing, one tube of lubricant 82-08, one Copper Stud 675SA, and one Installation Instruction IS-0249.
How is the K676BLR connected or disconnected?
The K676BLR can be easily connected or disconnected using standard hand tools and equipment. This operation must be performed in a de-energized state.
What other Elastimold products are compatible with K676BLR?
The K676BLR can be mated with Elastimold products including K671CP, K675BIP, K675RTP, K675RTW, K675S1, K675J2, K675J3, or K675J4.
What ANSI/IEEE standard does the K676BLR meet?
The K676BLR meets ANSI/IEEE Standard 386, Latest Revision.
What is the maximum operating voltage for the 15kV class?
For the 15kV voltage class, the maximum phase-to-ground operating voltage is 8.3kV, and the maximum phase-to-phase is 14.4kV.
What is the K676BLR product type?
The K676BLR is a 15/25kV 900A Deadbreak Elbow Housing with a Test Point. It is a component of the Elastimold 900 A elbow product line.
How to Install Elastimold 655/675LR and K655/K675LR Deadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of Elastimold 655/675LR and K655/K675LR Deadbreak Elbow Connectors, including cable preparation, lug crimping, and connection to mating apparatus.
Estimated time: 1h 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush (for aluminum conductors), Torque wrench, Hotstick, Capacitive voltage sensing device, Measuring tape or ruler, Utility knife or cable knife
Supplies needed:
Elastimold 655/675LR or K655/K675LR Elbow Connector, Cable Adapter, Compression Lug, Insulating Plug (optional), Lubricant (silicone), Threaded Stud (if mating part not equipped), No. 14 AWG Copper grounding wire (or equivalent), Grounding connector, Grounding device (optional), Waterproofing material, Cleaning cloths
- De-energize Apparatus and Position Cable
DANGER: Ensure all apparatus is de-energized during installation or removal of parts. Do not touch or move energized products in the work area. Position the cable in its final assembled location, providing sufficient slack for elbow removal. For concentric neutral cable, unwind the neutral wires. Cut the cable 1-3/4” (45mm) from the centerline of the mating product.
- Prepare Cable Insulation and Shield
Clean the outer surface of the cable for a distance of 24” (610mm). Remove the outer jacket (if applicable). Prepare the cable by removing insulation to 9-3/4” (248mm), the semi-con shield to 10-3/4” (273mm), and marking the tape at 12-3/4” (324mm) from the cut end. Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4” (6mm) back.
- Install Cable Adapter and Crimp Lug
Thoroughly clean and lubricate the cable insulation, always working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the tape marker. Remove protruding cable insulation, ensuring the exposed conductor is between 4-1/4” and 4-9/16” (108mm-116mm). For aluminum conductors, wire brush the conductor and immediately fully insert it into the compression lug. Crimp the lug following its supplied instructions, then wipe off all excess inhibitor. Verify the distance from the end of the compression lug to the cable adapter is between 6-3/8” and 7-1/8” (162mm-181mm).
- Install Elbow and Connect to Mating Apparatus
Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further, ensuring the adapter remains flush with the tape marker. Remove the tape marker. DANGER: Do not connect or disconnect mating products while energized. Do not energize while disconnected. Remove protective caps from the elbow and the mating part. Hand tighten the threaded stud supplied with the elbow into the mating part if it is not already equipped. Clean and lubricate both the elbow and the mating part. Push the elbow onto the mating part, lining up the hole in the compression lug with the stud. Torque the mating part according to its supplied instructions.
- Ground Cable Shield and Verify Voltage
Insert one end of a No. 14 AWG Copper (or equivalent) wire through the grounding eye and twist to make a small loop; do not damage the eye. Connect this wire to ground using a suitable connector. The cable shield must be grounded; use a grounding device or an alternate method. It is also recommended to waterproof the cable jacket at this point. If an insulating plug is used as a mating part, clean and lubricate its voltage detection cap and place it on the elbow, pushing until it snaps into place. To test for voltage, remove the test point cap with a hotstick. WARNING: The voltage test point is a capacitance device; use a suitable sensing device for capacitive test points, not conventional voltage measuring equipment. After testing, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
