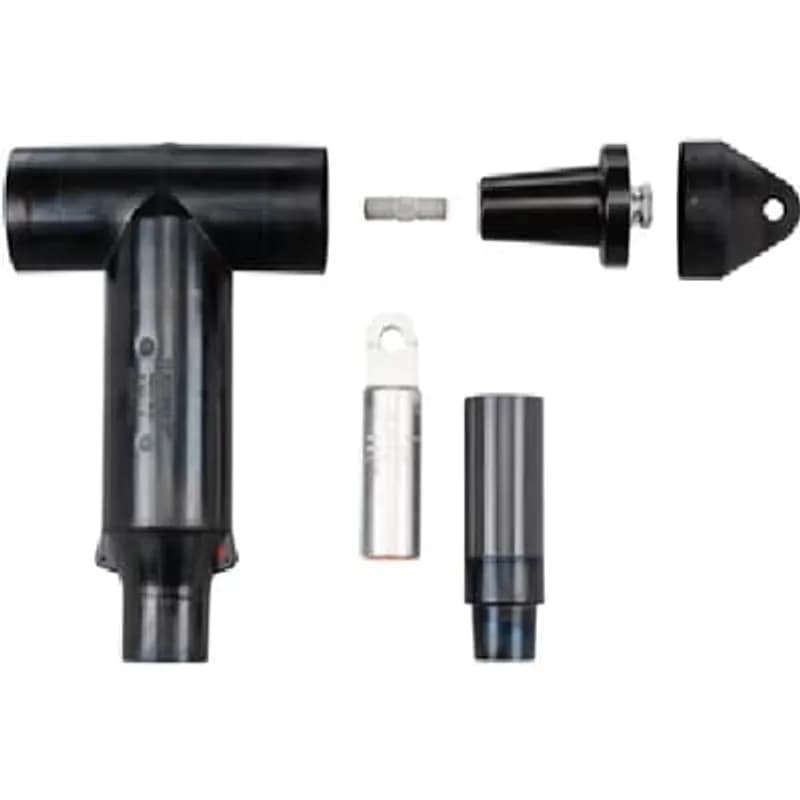

ABB Installation Products K675LR-N2420 900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable…
UPC: 075114332910
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 900 Amp current rating
- 15/25kV voltage rating
- 600 Series Elbow Connector
- Accommodates cable insulation diameter 1.515" - 1.780"
- Includes insulated plug, cap, stud, lug, and cable adapter
Specifications
Amperage Rating | 900 A |
Application | 35 kv, 900 Amp |
Color | Black |
Conductor Range | 1250 kcmil |
Connection | Compression |
Environmental Conditions | All Weather Conditions, Fully Submersible |
Insulation | True |
Material | Housing - EPDM-Rubber |
Size | Cable Insulation Diameter 1.515 inch to 1.780 inch |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector |
Voltage Rating | 15 to 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |

K675SR-M2420
900 Amp, 15/25kV, 600 Series Straight Receptacle with Cable Adapter, Lug and Retaining Ring, Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size kcmil Compacted Solid 1250.
162LR-B2230-SG3
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter, #1 Stranded/Compressed or 1/0 Solid/Compact Wire Size, Copper Compression Lug, Sealing Kit - Cold Shrinkable Seal with Copper Braid and Constant Force Spring.
K655DLR-K0270-SG3
15/25kV, 600 Amp, Direct Test Elbow, DeadBreak, Cable Insulation 1.090-1.310 inches, Aluminum Compression Lug, Conductor Size 4/0 Stranded/Compressed or 250 Solid/Compact. Sealing Kit - Cold Shrinkable Seal with Copper Braid and Constant Force Spring.
K655DLR-L0240-S
15/25kV, 600 Amp, Direct Test Elbow, DeadBreak, Cable Insulation 1.180-1.465 inches, Aluminum Compression Lug, Conductor Size 1/0 Stranded/Compressed or 2/0 Solid/Compact. Sealing Kit - Cold Shrinkable Jacket Seal.
K655DLR-J0300-SG3
15/25kv, 600 Amps, Deadbreak Direct Test Elbow without Test Point. With Cold-Shrinkable Jacket with Copper Braid and Constant Force Spring. Universal Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG or kcmil, Compressed Stranded 350 Compacted, Solid 400.
K655DLR-H0270-SG3
15/25kv, 600 Amps, Deadbreak Direct Test Elbow without Test Point. With Cold-Shrinkable Jacket with Copper Braid and Constant Force Spring. Universal Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG or kcmil, Compressed Stranded 4/0 Compacted, Solid 250.
K655DLR-LM0300-SG3
15/25kV, 600 Amp, Direct Test Elbow, DeadBreak, Cable Insulation 1.280-1.430 inches, Aluminum Compression Lug, Conductor Size 350 Stranded/Compressed or 400 Solid/Compact. Sealing Kit - Cold Shrinkable Seal with Copper Braid and Constant Force Spring.
252LR-B5240
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, Cable Insulation Diameter - .635-.905 inch. Bi-Metal Lug, Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.Frequently Asked Questions
What is the maximum cable insulation diameter for this elbow connector?
The ABB K675LR-N2420 accommodates cable insulation diameters ranging from 1.515 inches to 1.780 inches.
What conductor sizes are compatible with the K675LR-N2420?
This connector is designed for conductor sizes of 1250 AWG or kcmil, specifically for compact/solid conductors.
What components are included with the ABB K675LR-N2420 elbow connector?
The K675LR-N2420 includes an insulated plug, cap, stud, lug, and cable adapter.
What is the current rating of the ABB K675LR-N2420?
The ABB K675LR-N2420 has a current rating of 900 Amps.
What is the voltage rating for the K675LR-N2420 elbow connector?
The K675LR-N2420 elbow connector is rated for 15/25kV.
How to Install K655/K675LR Deadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of Elastimold 655/675LR and K655/K675LR Deadbreak Elbow Connectors, including cable preparation, component assembly, and grounding procedures. These connectors provide fully shielded, submersible cable connections for high voltage systems.
Estimated time: 2h
Tools needed:
Wire strippers/Cable cutting tool, Wire brush (for aluminum conductors), Crimping tool (specific to compression lug), Hotstick, Capacitive voltage sensing device, Torque wrench (for mating parts and L-Kits), Suitable grounding connector
Supplies needed:
655/675LR or K655/K675LR Deadbreak Elbow Connector kit, Insulating Plug (if used as mating part), HV insulated cap(s) or connector(s) (to replace shipping covers), No. 14 AWG Copper wire (or equivalent ampacity) for grounding, Grounding device (if not using alternate method), Silicone lubricant (for voltage test cap), Waterproofing material (for cable jacket, recommended)
- Ensure Safety and Inspect Components
DANGER: All apparatus must be de-energized during installation or removal of parts. Do not touch or move energized products. Inspect all components for damage, correct rating, and compatibility with mating parts. If supplied with protective shipping covers, remove them and replace with appropriate HV insulated caps or connectors before submerging or energizing the circuit.
- Prepare the Cable
Assemble the cable in its final position with enough slack to allow elbow removal. For concentric neutral cable, unwind the neutral wires. Cut the cable 1-3/4” (45mm) from the centerline of the mating product. Clean the outer surface of the cable for a distance of 24” (610mm) or up to the bent back neutral wires. Remove the outer jacket (if applicable) and prepare the cable insulation and semi-con shield according to product diagrams.
- Install the Cable Adapter
Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4” (6mm) back. Thoroughly clean and then lubricate the cable insulation, always working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.
- Prepare Conductor and Crimp Compression Lug
Carefully remove the protruding cable insulation by cutting it even with the end of the cable adapter; do not cut or nick the adapter or conductor. Verify the exposed conductor length is between 4-1/4” and 4-9/16” (108mm-116mm). For aluminum conductors, wire brush the conductor immediately before insertion. Fully insert the conductor into the compression lug. Measure the “Check Dimension” before crimping (must be less than 6-3/8”). Crimp the lug per its instructions. Wipe off excess inhibitor. Verify the distance from the lug end to the cable adapter is 6-3/8” to 7-1/8” (162mm-181mm) after crimping.
- Install the Elbow onto the Cable Adapter
Lubricate the cable adapter and the inside of the elbow's cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Ensure the cable adapter remains flush with the tape marker; reposition if necessary. Remove the tape marker.
- Connect Elbow to Mating Product(s)
DANGER: Do not connect or disconnect mating products while energized. Do not energize while disconnected. Remove protective caps from the elbow and the mating part. If the mating part is not equipped with a stud, hand tighten the supplied threaded stud into it. Clean and lubricate both the elbow and the mating part. Push the elbow onto the mating part, aligning the compression lug hole with the stud. If connecting an opposite mating part, clean and lubricate it, then insert it into the elbow, engage threads, and hand tighten. Torque mating parts according to their specific instructions. If using an insulating plug, clean and lubricate its voltage detection cap and push it onto the elbow until it snaps into place.
- Ground the Cable Shield
Insert one end of a No. 14 AWG Copper wire (or equivalent) through the grounding eye and twist to form a small loop; do not damage the eye. Connect this wire to ground using a suitable connector. The cable shield must be grounded; follow instructions for a grounding device or use an alternate method. It is also recommended to waterproof the cable jacket at this point to prevent moisture ingress.
- Perform Voltage Test
Remove the test point cap using a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Use a suitable capacitive voltage sensing device, following its manufacturer's directions; do not use conventional voltage measuring equipment. Test to determine if the cable is energized. Treat the elbow as energized until the 'no voltage' indication is confirmed by other means. After testing, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
