ABB - Installation Products K655RLR-L0380 - 600 Amp, 15/25KV, DeadBreak, Replacement Elbow, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.

ABB Installation Products K655RLR-L0380 600 Amp, 15/25KV, DeadBreak, Replacement Elbow, Cable Insulation Diameter 1.180 inch to…

UPC: 783786438761

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

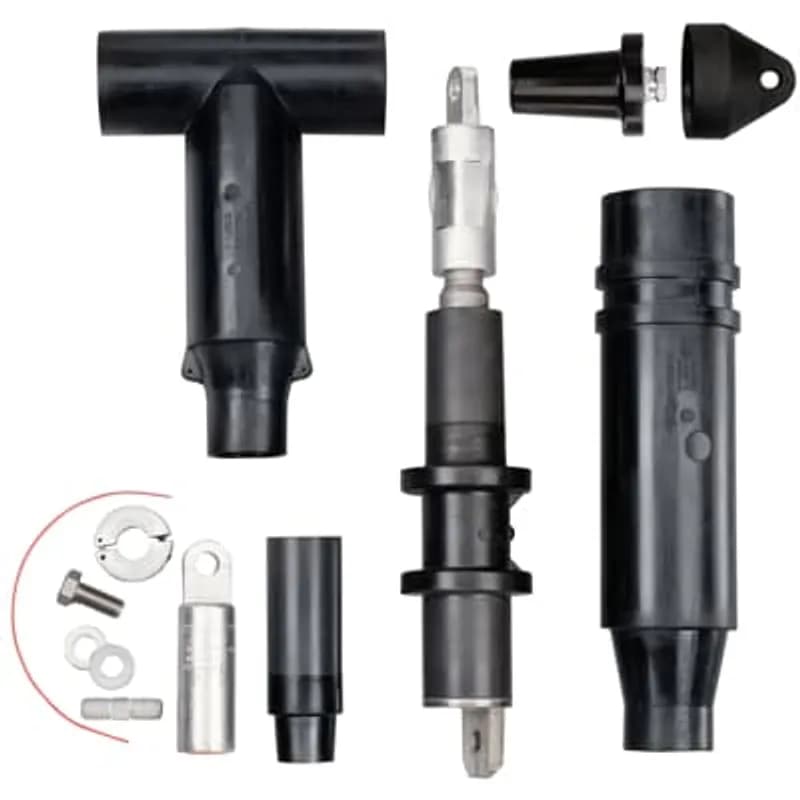

The ABB K655RLR-L0380 is a 600 Amp, 15/25kV deadbreak replacement elbow designed for medium-voltage cable systems. This product provides a reliable, insulated interface for terminating and connecting cables in switchgear, transformers, and other distribution equipment. The elbow features a deadbreak interface, ensuring safe operation under load and fault conditions without exposing live parts. The unit accommodates cable insulation diameters between 1.180 inch and 1.465 inch, making it compatible with a range of cable types. It includes an aluminum compression lug for secure conductor termination, supporting conductor sizes from 700/750 kcmil (compressed stranded) to 900 kcmil (compacted solid). This versatility allows use in both new installations and as a replacement component in existing systems. The deadbreak design eliminates the need for de-energizing the system during installation or maintenance, reducing downtime and improving operational efficiency. The elbow’s construction ensures dielectric integrity and long-term reliability in harsh industrial environments, including outdoor substations and underground vaults. Ideal for utility, industrial, and commercial applications, the K655RLR-L0380 meets industry standards for medium-voltage cable accessories. It is manufactured by ABB Installation Products, a trusted name in electrical infrastructure solutions.
  • 600 Amp, 15/25kV deadbreak replacement elbow
  • Cable insulation diameter range: 1.180 inch to 1.465 inch
  • Aluminum compression lug for 700/750kcmil (compressed stranded) or 900kcmil (compacted solid) conductors
  • Deadbreak interface for safe operation under load and fault conditions
  • Compatible with medium-voltage switchgear, transformers, and distribution equipment

Specifications

Amperage Rating
600 A
Application
Used where Cable has been severed and is not long enough to reach the Elbow
Color
Black
Conductor Range
700 to 750 kcmil , 900 kcmil
Connection
Compression
Connection Type
Compression
Current Rating
600 A
Environmental Conditions
All Weather Conditions
Insulation
True
Length
31.56 in
Length
801.624 mm
Material
Aluminum
Material
Housing - EPDM-Rubber
Series
K655RLR
Size
Cable Insulation Diameter 1.180 inch to 1.465 inch
Special Features
Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Rubber. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Replacement Elbow Connector
Voltage Rating
15 to 25 kV
Voltage Rating
15/25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.

756LR-P0380

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
Single cable clamp 150-300mm2 for power terminal type 5

45000034

Single cable clamp 150-300mm2 for power terminal type 5
15/25KV, 200 Amp, Dead Break, Locking Splice/Repair Splice, .805 - 1.060 inch Cable Insulation Diameter, Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.

K151LS-C1270

15/25KV, 200 Amp, Dead Break, Locking Splice/Repair Splice, .805 - 1.060 inch Cable Insulation Diameter, Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
Locking Y Splice, 15/25KV, 200 Amp. DeadBreak, Cable Insulation Diameter 0.625 inch to 0.735 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.

K151LYFAB1220

Locking Y Splice, 15/25KV, 200 Amp. DeadBreak, Cable Insulation Diameter 0.625 inch to 0.735 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.
Locking Y Splice, 15/25KV, 200 Amp. DeadBreak, Cable Insulation Diameter 0.725 inch to 0.835 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.

K151LYFG1220

Locking Y Splice, 15/25KV, 200 Amp. DeadBreak, Cable Insulation Diameter 0.725 inch to 0.835 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.
900 Amp, 15/25kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size Compressed Stranded 1000 kcmil. No Sealing Kit.

K676LR-M2410

900 Amp, 15/25kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size Compressed Stranded 1000 kcmil. No Sealing Kit.
600 Amp, 15/25kV, 600 Series Deadbreak, Replacement Elbow with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 4/0 AWG or Compacted Solid 250 kcmil. With Sealing Kit - Cold Shrinkable Jacket Seal.

K656RLR-H0270-S

600 Amp, 15/25kV, 600 Series Deadbreak, Replacement Elbow with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 4/0 AWG or Compacted Solid 250 kcmil. With Sealing Kit - Cold Shrinkable Jacket Seal.
15-25kV, 600 Amp, Replacement Elbow. Aluminum Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold-Shrinkable Jacket Seal Included.

K656RLR-K0330-S

15-25kV, 600 Amp, Replacement Elbow. Aluminum Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold-Shrinkable Jacket Seal Included.
