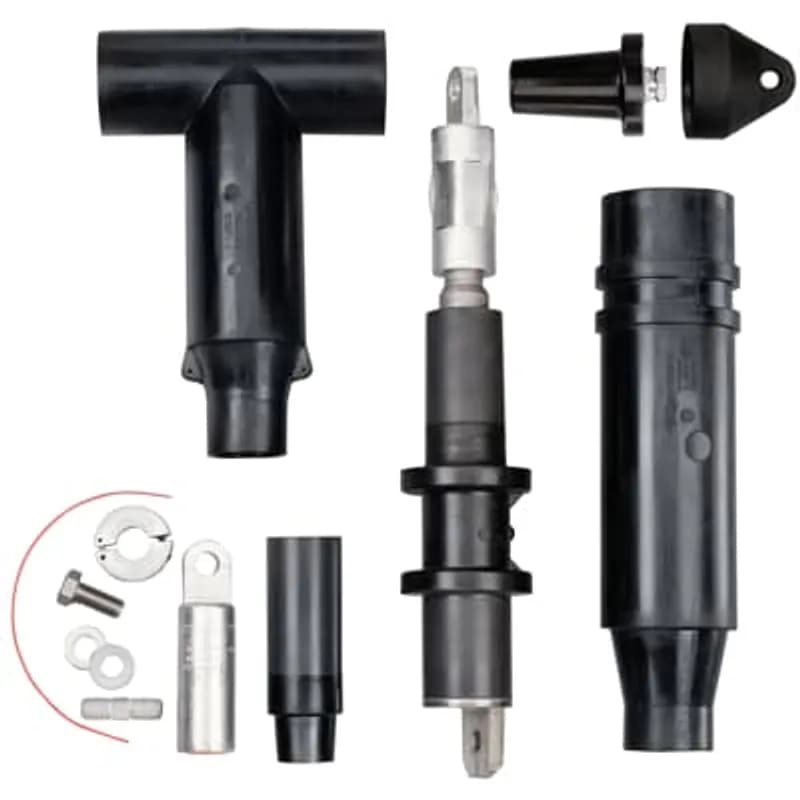

ABB - Installation Products K655RLR-G0240 - 600 Amp, 15/25kV, 600 Series Deadbreak, Replacement Elbow without Test Point, Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1/0/ Compacted Solid 2/0.

ABB Installation Products K655RLR-G0240 600 Amp, 15/25kV, 600 Series Deadbreak, Replacement Elbow without Test Point, Cable…

UPC: 075114423540


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 600 Series Deadbreak Elbow, SKU K655RLR-G0240, is engineered for reliable 15/25kV applications, handling up to 600 Amps. This replacement elbow is designed for cable insulation diameters ranging from 0.760 inches to 0.950 inches, ensuring a secure and precise fit for a variety of medium-voltage power distribution systems. It features an aluminum compression lug, compatible with conductor sizes from 1/0 AWG compressed stranded to 2/0 AWG compacted solid, providing robust electrical connection integrity. This model is specifically designed without a test point, simplifying installation and reducing potential points of failure in environments where testing is not a primary requirement for this specific component. ABB's Installation Products division delivers dependable solutions for critical infrastructure, and the K655RLR-G0240 upholds this standard for safe and efficient power cable termination. Its construction prioritizes durability and consistent performance in demanding electrical environments. The 600 Series deadbreak design ensures safe operation and maintenance procedures by providing a fully shielded, submersible, and separable connection. This elbow is an essential component for utility, industrial, and commercial power distribution networks requiring high-current, medium-voltage cable terminations.
  • 600 Amp continuous current rating
  • 15/25kV voltage class
  • 600 Series Deadbreak design
  • Accommodates 0.760" to 0.950" cable insulation diameter
  • Aluminum compression lug for 1/0 AWG stranded or 2/0 AWG solid conductors

Specifications

Amperage Rating
600 A
Application
Used where Cable has been severed and is not long enough to reach the Elbow
Color
Black
Conductor Range
CMPR/STR 1/0 AWG , COMPT/SOL 2/0 AWG
Connection
Compression
Environmental Conditions
All Weather Conditions
Insulation
True
Length
31.56 in
Length
801.624 mm
Material
Housing - EPDM-Rubber
Special Features
Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Rubber. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Replacement Elbow Connector
Voltage Rating
15/25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit

168FLR1-B5220

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.515 inch to 1.780 inch. Bi-Metal Compression Lug. Conductor Size kcmil, Compressed Stranded 900 /Compacted Solid 1000 /mmSquared Compact 500. With Any Customer Specific Modifications - CS871 - CSA Compatibility.

K675LR-N-5400-CS871

900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.515 inch to 1.780 inch. Bi-Metal Compression Lug. Conductor Size kcmil, Compressed Stranded 900 /Compacted Solid 1000 /mmSquared Compact 500. With Any Customer Specific Modifications - CS871 - CSA Compatibility.
900 Amp, 35kV, 600 Series Elbow with insulated plug, cap, stud, lug and cable adapter. Cable Insulation Diameter 1.900 inch to 2.120 inch. Bi-Metal Compression Lug. Conductor Size kcmil Compressed Stranded 1250. Cold-Shrinkable Jacket Seal Included. Factory lubricated receptacle interface and cable entrance of elbow or bushings extender.

775LR-Q5440-S-CS1634

900 Amp, 35kV, 600 Series Elbow with insulated plug, cap, stud, lug and cable adapter. Cable Insulation Diameter 1.900 inch to 2.120 inch. Bi-Metal Compression Lug. Conductor Size kcmil Compressed Stranded 1250. Cold-Shrinkable Jacket Seal Included. Factory lubricated receptacle interface and cable entrance of elbow or bushings extender.
900 Amp, 35kV, 600 Series Elbow with insulated plug, cap, stud, lug and cable adapter. Cable Insulation Diameter 1.725 inch to 1.935 inch. Bi-Metal Compression Lug. Conductor Size kcmil Compressed Stranded 1000. Cold-Shrinkable Jacket Seal Included. Factory lubricated receptacle interface and cable entrance of elbow or bushings extender.

775LR-P5410-S-CS1634

900 Amp, 35kV, 600 Series Elbow with insulated plug, cap, stud, lug and cable adapter. Cable Insulation Diameter 1.725 inch to 1.935 inch. Bi-Metal Compression Lug. Conductor Size kcmil Compressed Stranded 1000. Cold-Shrinkable Jacket Seal Included. Factory lubricated receptacle interface and cable entrance of elbow or bushings extender.
900 Amp, 35kV, 600 Series Elbow with insulated plug, cap, stud, lug and cable adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size kcmil Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold-Shrinkable Jacket Seal Included. Factory lubricated receptacle interface and cable entrance of elbow or bushings extender.

775LR-M5330-S-CS1634

900 Amp, 35kV, 600 Series Elbow with insulated plug, cap, stud, lug and cable adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size kcmil Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold-Shrinkable Jacket Seal Included. Factory lubricated receptacle interface and cable entrance of elbow or bushings extender.
25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size 4/0 Compressed Stranded AWG or 250 kcmil Compacted Solid. With Insulated Cap. Cold-Shrinkable Jacket Seal Included.

K655ETP-J0270-DRG-S

25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size 4/0 Compressed Stranded AWG or 250 kcmil Compacted Solid. With Insulated Cap. Cold-Shrinkable Jacket Seal Included.
900 Amp, 15/25kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size Compressed Stranded 900 kcmil or Compacted Solid 1000 kcmil. Includes Cold Shrinkable Jacket Shield.

K676LR-M2400-S

900 Amp, 15/25kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size Compressed Stranded 900 kcmil or Compacted Solid 1000 kcmil. Includes Cold Shrinkable Jacket Shield.
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Copper Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size Compressed/Stranded 500 or Compact/Solid 600 or mm2 Compact 250/300.

K656LR-K2330

15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Copper Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size Compressed/Stranded 500 or Compact/Solid 600 or mm2 Compact 250/300.

Frequently Asked Questions

What is the maximum continuous current rating for this elbow?

The ABB 600 Series Deadbreak Elbow has a maximum continuous current rating of 600 Amps.

What is the acceptable range for cable insulation diameter?

The elbow is designed to fit cable insulation diameters ranging from 0.760 inches to 0.950 inches.

What type of lug does this elbow use for conductor connection?

This elbow features an aluminum compression lug for conductor connection.

What conductor sizes are compatible with the aluminum compression lug?

The aluminum compression lug is compatible with 1/0 AWG compressed stranded or 2/0 AWG compacted solid conductors.

Does this elbow include a test point?

No, this specific model (K655RLR-G0240) is designed without a test point.
