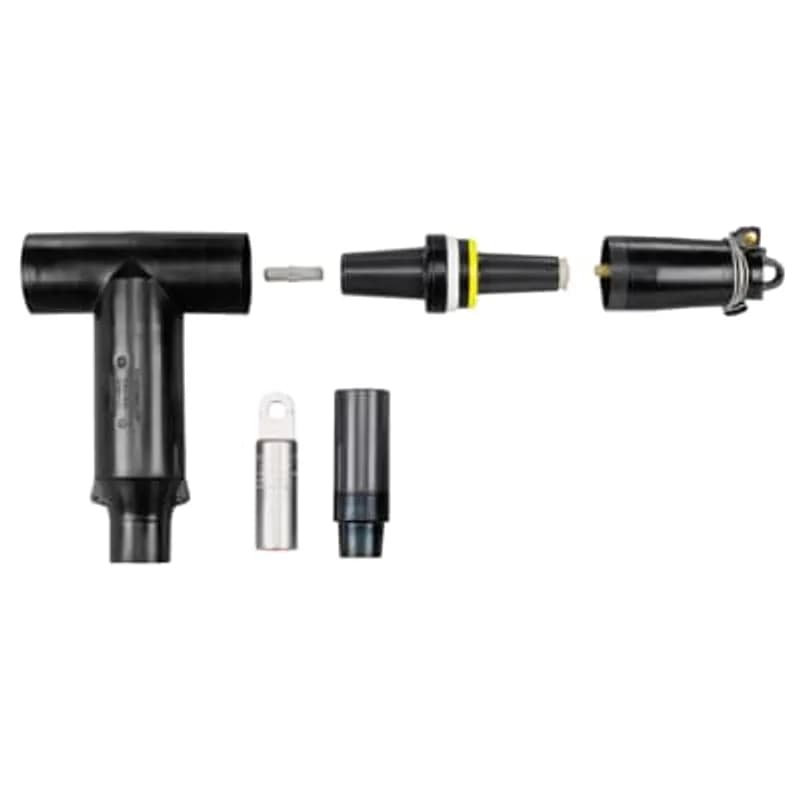

ABB Installation Products K655ETP-F0220-DRGSG3 25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 0.805…
UPC: 075114420181
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 25kV, 600 Amp Deadbreak, Test and Ground Connector Kit
- Accommodates cable insulation diameters from 0.805" to 1.060"
- Aluminum compression lug for 3/0 AWG (compressed/stranded) or 4/0 AWG (compacted/solid) conductors
- Includes insulated cap and cold-shrinkable seal for environmental protection
- Features copper braid and constant force spring for reliable grounding
Specifications
Amperage Rating | 600 A |
Application | 600 Amps, 25kV |
Color | Black |
Conductor Range | 3/0 COMPR/STR AWG , 4/0 COMPT/SOL AWG |
Connection | Compression |
Insulation | EPDM Rubber |
Length | 12.5 in |
Length | 317.5 mm |
Material | Housing EPDM-Rubber |
Special Features | Includes Seal and Insulated Cap |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Window-Op Elbow Connector |
Voltage Rating | 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
252LR-C5240
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, Cable Insulation Diameter - .805-1.060 inch Bi-Metal Lug, Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
K656DLR-LAC04
15/25kV, Direct Test Elbow, DeadBreak, 600 Amp, Cable Insulation Diameter 1.180-1.465 inches, Tin Plated Aluminum Shear Bolt Connector for Aluminum or Copper Conductor Sizes 750 to 1250 kcmil Stranded / Compressed / Compact.
168FLR3-C5240
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Bi-Metal Conductor size 1/0 AWG Stranded/Compressed, 2/0 AWG Solid/Compact.
K675LR-M2360-SG3
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size Compressed Stranded 650 kcmil or Compacted Solid 750 kcmil. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.K675LR-F2250-SG3
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 0.640 inch to 0.820 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 2/0 or Compacted Solid 3/0. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.K675LR-N-5410
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.515 inch to 1.780 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.
SS1-1/0RNS2-500KMS
Storm-Safe Breakaway Mid Span Service Entrance Kit, (2) SSM 1/0 Bi-Metal with Copper Pins, (1) SSNM 1/0 Bi-Metal with Copper Pins, (2) SSS 1/0 Tin Plated Aluminum, (1) SSS 2 Tin Plated Aluminum. Breakaway Force 500 Pounds. Rockets: (2) CSN 2277, (1) CS 2277. Caps (2) FSS 350 CAP without Liner. (1) Flexible Bail Assembly SSFB 500. Silicone Grease and Instruction Sheet.
K655SR-K2330
600 Amp, 15/25kV, 600 Series Deadbreak Straight Receptacle with Cable Adapter, Lug and Retaining Ring. Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Compression Lug. Conductor Size kcmil Compressed Stranded 500 or Compacted Solid 600 or mmSquared Compact 250/300. Length 17 inches, Diameter 4-1/4 inch.Frequently Asked Questions
What is the maximum voltage rating for this connector kit?
The connector kit has a maximum operating voltage rating of 25kV.
What cable insulation diameters does this kit support?
This kit is designed for cable insulation diameters ranging from 0.805 inches to 1.060 inches.
What conductor sizes can be used with the aluminum compression lug?
The aluminum compression lug is suitable for 3/0 AWG compressed/stranded conductors or 4/0 AWG compacted/solid conductors.
What type of sealing mechanism is used in this kit?
The kit features a cold-shrinkable seal for environmental protection.
What components are included for grounding?
The kit includes a copper braid and a constant force spring for grounding.
How to Install the 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides instructions for safely installing the 160DRG and 167DRG insulated caps with ground lead, designed for insulating, shielding, and watersealing 15kV class loadbreak bushing interfaces. Ensure all apparatus is de-energized during installation or follow company safe work practices for energized operations using appropriate live-line tools.
Estimated time: 15m
Tools needed:
Full insulated hotstick type live-line tool
Supplies needed:
Insulated Cap with Ground Lead, ELASTIMOLD approved lubricant
- Connect Electrostatic Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground. Leave enough slack for hot-stick operation of the insulated cap and train the wire so it does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Prepare and Lubricate the Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap's internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants; do not substitute. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when not in use.
- Attach Hotstick and Insert Cap
Firmly attach a hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing, and push it home with a fast, firm, straight motion. Make certain it is fully mated, with the locking ring seated. Detach the hotstick from the insulated cap.
