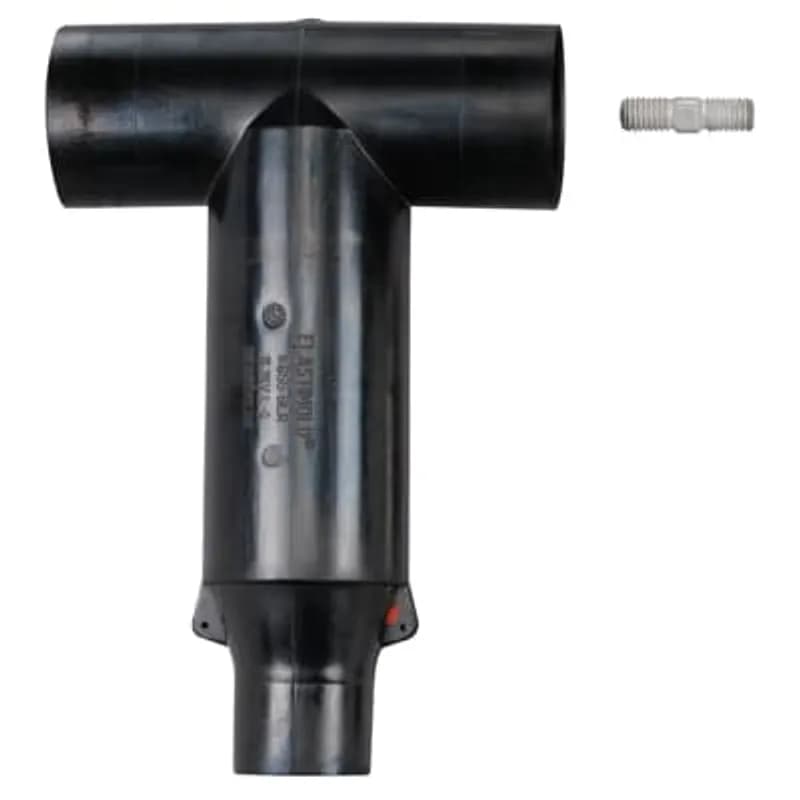

ABB - Installation Products K655BLR-H0270 - 600 Series Elbow with out Test Point, With Stud, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.

ABB Installation Products K655BLR-H0270 600 Series Elbow with out Test Point, With Stud, Cable Insulation Diameter 0.850 inch to…

UPC: 783786314034


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 600 Series Elbow Lug (SKU K655BLR-H0270) is a high-current aluminum compression termination designed for stranded 4/0 AWG or solid 250 mm² conductors with cable insulation diameters between 0.850 and 1.050 inches. This elbow-style lug eliminates the need for a separate test point, simplifying installation in compact enclosures while maintaining reliable electrical contact. The compression mechanism ensures low-resistance terminations, reducing heat generation and improving long-term reliability in demanding industrial power distribution systems. The integrated stud terminal allows for secure bolted connections, making it ideal for switchgear, motor control centers, and panelboard installations where space constraints and high amperage are critical factors. The aluminum construction provides a balance of weight savings and conductivity compared to copper alternatives while maintaining compatibility with standard industrial termination practices. This lug is part of the ABB 600 Series, which includes conductor sizes from #2 AWG to 1250 kcmil, offering flexibility for diverse electrical system requirements. The included components—elbow connector housing, lubricant tube, stud, installation instructions, insulating plug, cable adapter, connector, adapter retaining ring, and washer/bolt—provide a complete termination solution. The catalog selection process allows precise matching of lug size to conductor specifications, with conductor codes ranging from 210 (#2 AWG) to 440 (1250 kcmil) for stranded/compressed configurations. Engineered for applications requiring reliable, high-amperage terminations with minimal space constraints, this proven solution delivers durable performance in industrial electrical installations.
  • Handles stranded 4/0 AWG or solid 250 mm² conductors
  • Accommodates cable insulation diameters from 0.850 to 1.050 inches
  • Aluminum compression lug with integrated stud terminal
  • Elbow design eliminates separate test point requirement
  • Part of ABB 600 Series covering #2 AWG to 1250 kcmil

Specifications

Application
15/25 kV, 600 Amps
Connection
Compression
Material
Aluminum
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Elbow without Test Point
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
6.4000 L
Package Weight (Metric)
2.9030 kg
600 Series Elbow with out Test Point, With Stud, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 500 /Solid 600 /mmSquared 250/300.

K655BLR-K0330

600 Series Elbow with out Test Point, With Stud, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 500 /Solid 600 /mmSquared 250/300.
15/25kV,900A DB, 2-Point Junction

K675-J2

15/25kV,900A DB, 2-Point Junction
900 Amp, 4 point junction, Copper, with rubber junction, stainless steel mounting plate, back plate and adjustable mounting bracket

K675-J4-U

900 Amp, 4 point junction, Copper, with rubber junction, stainless steel mounting plate, back plate and adjustable mounting bracket
600 Amp, DeadBreak, 15/25KV, Access Elbow, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.

K655ALR-H0270

600 Amp, DeadBreak, 15/25KV, Access Elbow, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
600 Amp, DeadBreak, 15/25KV, Access Elbow, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.

K655ALR-HO270

600 Amp, DeadBreak, 15/25KV, Access Elbow, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
600 Amp, Straight Receptacle Housing Only, 15/25 KV, DeadBreak, Without the Bolt and Washers

K655YBSRN

600 Amp, Straight Receptacle Housing Only, 15/25 KV, DeadBreak, Without the Bolt and Washers
600 Amp, Extended Connector Plug, DeadBreak, 15/25KV. Widest Diameter 3 inches. Center Body Length 5.5 inch.

K650ECP

600 Amp, Extended Connector Plug, DeadBreak, 15/25KV. Widest Diameter 3 inches. Center Body Length 5.5 inch.
600 Amp, 2 Way Vault Stretcher Kit, 15/25KV, G0260 - Cable Insulation Diameter 0.760 inch to 0.950 inch. Universal Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed/Stranded 3/0 or Compacted/Solid 4/0. J0270 - Cable Insulation Diameter 0.980 inch to 1.180 inch. Universal Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed/Stranded 4/0 or Compacted/Solid 250. SG3 - Cold Shrinkable Seal with Copper Braid and Constant Force Spring. (K655VS-L2-G0260-J0270-SG3).

K655VSL2-DP0592392

600 Amp, 2 Way Vault Stretcher Kit, 15/25KV, G0260 - Cable Insulation Diameter 0.760 inch to 0.950 inch. Universal Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed/Stranded 3/0 or Compacted/Solid 4/0. J0270 - Cable Insulation Diameter 0.980 inch to 1.180 inch. Universal Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed/Stranded 4/0 or Compacted/Solid 250. SG3 - Cold Shrinkable Seal with Copper Braid and Constant Force Spring. (K655VS-L2-G0260-J0270-SG3).

Frequently Asked Questions

How do I order the 15/25kV 600A elbow housing?

To order the 15/25kV 600A elbow housing without a test point, you should specify the ordering number K655BLR.

What items are included in the K655BLR kit?

Each kit contains one K655BLR elbow connector housing, one tube of lubricant 82-08, one stud 650SA, and installation instruction IS-0249.

What are the key features of the K655BLR housing?

It is a fully shielded, fully submersible molded rubber housing with 100% peroxide-cured construction. It is rated for 15/25kV, 600 Amp Deadbreak.

What is the momentary current rating for the K655BLR?

The momentary current rating for the K655BLR is 25kA Symmetrical for 10 cycles, applicable to both 15kV and 28kV classes.

What are the operating voltage limits for the 28kV class?

For the 28kV class, the maximum phase-to-ground operating voltage is 16.2kV, and the maximum phase-to-phase is 28kV.

What is the continuous current rating for the K655BLR?

The K655BLR has a continuous current rating of 600 Amps for both 15kV and 28kV voltage classes.

What are the operating voltage limits for the 15kV class?

For the 15kV class, the maximum phase-to-ground operating voltage is 8.3kV, and the maximum phase-to-phase is 14.4kV.

What other Elastimold products are compatible with K655BLR?

The K655BLR can be mated with Elastimold® products including K651CP, K650BIP, K650RTP, K650RTW, K650S1, K650J2, K650J3, or K650J4.

What is the K655BLR product used for?

The K655BLR is a deadbreak elbow housing, a component of the Elastimold® 600 A elbow product line. It is designed for 15/25kV applications.

What are the operating voltage limits for the 28kV class?

For the 28kV class, the maximum phase-to-ground operating voltage is 16.2kV, and the maximum phase-to-phase is 28kV.

How to Install K655/K675LR Deadbreak Elbow Connectors

This guide provides step-by-step instructions for the safe and proper installation of 655/675LR and K655/K675LR Deadbreak Elbow Connectors, including cable preparation, lug crimping, and connection to mating apparatus. These connectors are rated for 15kV and 25kV class systems.

Estimated time: 2h

Tools needed:

Wire strippers, Cutting tool, Wire brush, Crimping tool, Hotstick, Suitable sensing device (for capacitive test points)

Supplies needed:

Elbow connector, Cable adapter, Compression lug, Insulating plug (if used), Lubricant, Threaded stud (prepack), Tape marker, No. 14 AWG Copper wire (or equivalent), Suitable grounding connector, HV insulated cap(s) or connector(s), Silicone lubricant

  1. De-energize Apparatus and Inspect Parts

    Ensure all apparatus is de-energized during installation or removal of any parts. Do not touch or move energized products. Inspect all components for damage, correct rating, and compatibility with mating parts. Remove any protective shipping covers and replace with appropriate HV insulated caps or connectors before submerging or energizing the circuit.

  2. Prepare the Cable

    Assemble the cable in its final position with enough slack to allow for elbow removal. For concentric neutral cable, unwind the neutral wires. Cut the cable 1-3/4 inches (45mm) from the centerline of the mating product. Clean the outer surface of the cable for a distance of 24 inches (610mm) or up to the bent-back concentric neutral wires. Remove the outer jacket (if applicable) and prepare the cable insulation and shield according to the specific cable type (e.g., Unishield, Jacketed, Non-Jacketed).

  3. Install Cable Adapter

    Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4 inch (6mm) back. Thoroughly clean and then lubricate the cable insulation, always working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.

  4. Prepare Conductor and Crimp Lug

    Remove the protruding cable insulation by cutting it even with the end of the cable adapter, taking care not to cut or nick the adapter or conductor. Verify the exposed conductor length is between 4-1/4 inches and 4-9/16 inches (108mm-116mm); if not, redo the assembly. For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it. Measure the 'Check Dimension' before crimping (must be less than 6-3/8 inches). Crimp the compression lug following its supplied instructions. Wipe all excess inhibitor from the lug and cable adapter. Verify the distance from the end of the lug to the cable adapter is between 6-3/8 inches and 7-1/8 inches (162mm-181mm) after crimping; if not, redo the assembly.

  5. Install Elbow onto Cable Adapter

    Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Ensure the cable adapter remains flush with the tape marker; reposition if necessary. Remove the tape marker.

  6. Connect to Mating Product

    DO NOT CONNECT OR DISCONNECT MATING PRODUCTS WHILE ENERGIZED. DO NOT ENERGIZE WHILE DISCONNECTED. Remove protective caps from the elbow and the mating part. If the mating part is not equipped with a stud, hand tighten the threaded stud supplied with the elbow into the mating part. Clean and lubricate both the elbow and the mating part with the supplied lubricant, ensuring surfaces remain clean. Push the elbow onto the mating part, aligning the hole in the compression lug with the stud on the mating part.

  7. Secure Opposite Mating Part

    Clean and lubricate the mating part for the opposite end of the elbow. Insert this mating part into the elbow. Engage the threads and hand tighten. Torque the mating part according to the instructions supplied with that specific mating part. If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap and place it on the elbow, pushing down hard until the cap snaps into place.

  8. Ground the Cable Shield

    Insert one end of a wire with ampacity at least equivalent to No. 14 AWG Copper through the grounding eye and twist to make a small loop, taking care not to damage the eye. Connect this wire to ground using a suitable connector. The shield of the cable must be grounded; ground according to the instructions supplied with the grounding device, or through an alternate method if no device is used. It is also recommended to waterproof the cable jacket at this point to prevent moisture from entering the cable.

  9. Perform Voltage Test

    Remove the test point cap with a hotstick, peeling it off at an angle rather than pulling directly. WARNING: The voltage test point is a capacitance device and is not directly connected to the conductor. Do not use conventional voltage measuring equipment. Follow the manufacturer’s directions for the meter used. Test with a suitable sensing device, made for use with separable connectors manufactured with capacitive test points, to determine if the cable is energized. Treat the elbow as energized until the 'no voltage' test point indication is confirmed by other means to prevent serious or fatal injury. After testing, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
