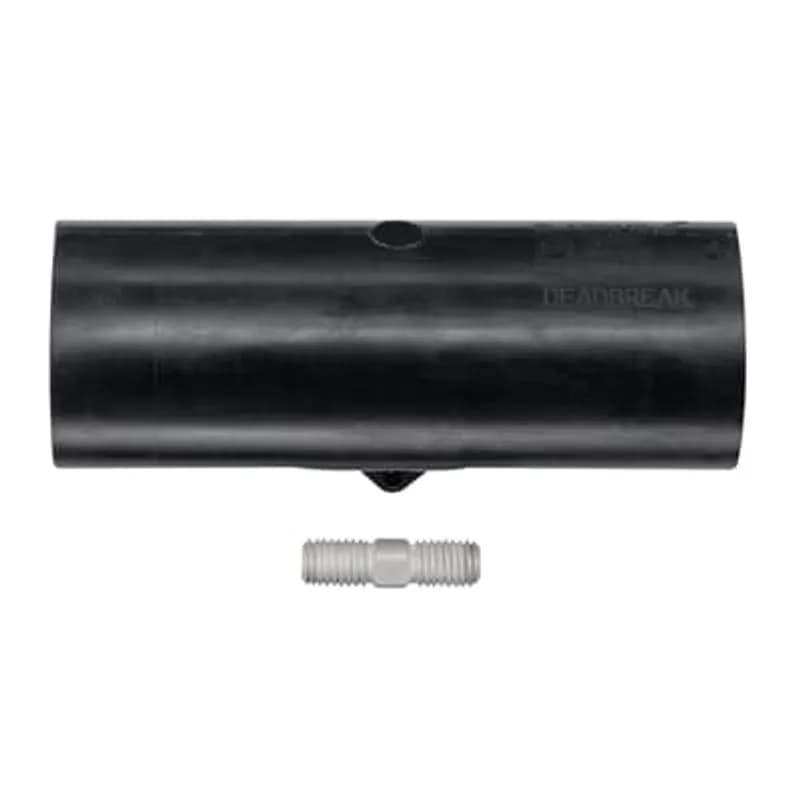

ABB Installation Products K655BE 15/25kV 600 Series Deadbreak Bushing Extender - Length 8.41 inch x 3.17 inch Diameter…
UPC: 783786622573
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25kV Voltage Rating
- 600 Series Deadbreak Design
- 8.41 inch Length x 3.17 inch Diameter
- Integrated Stud: 2.28 inch Length, 5/8-11 UNC-2A Thread
- Manufacturer: ABB - Installation Products
Specifications
Application | 15/25kv, 600 Amps |
Material | EPDM-Rubber |
Size | Length 8.41 inch x 3.17 inch Diameter |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Minimum | 194 F |
Temperature Rating, Minimum | 90 C |
Type | Deadbreak Bushing Extender |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.1900 L |
Package Weight (Metric) | 0.9930 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
750CP
35 kV, 600 Amp Series Deadbreak Connecting Plug. Length 10.13 inch, Widest Diameter 3 inch. EPDM Peroxide Insulation Housing.
750-J2
35kV 600 Series Deadbreak 2-Point Junction, includes Rubber Junction, Stainless Steel U-Straps and Back Plate
750BIP
35kV 600 Series Deadbreak Insulating Plug (with Cap). Plug Length 5.656 inch, Diameter 3 inch. Epoxy.Frequently Asked Questions
What is the purpose of the K655BE bushing extender?
The K655BE bushing extender increases the distance between apparatus surfaces and the cable entry point for 600 A elbow connections.
What is the impulse withstand rating for the 28kV class?
For the 28kV voltage class, the impulse withstand (BIL) is 140kV (1.2 x 50 microsecond wave).
What other Elastimold products are compatible with K655BE?
The K655BE is compatible with Elastimold products such as K651CP, K650BIP, K650RTP, K650J2, K650J3, K650J4, 650ETP, K650ETP, and K650T1.
What is the AC one-minute withstand voltage for 28kV?
For the 28kV voltage class, the AC one-minute withstand is 45kV.
What is the AC one-minute withstand voltage for 15kV?
For the 15kV voltage class, the AC one-minute withstand is 34kV.
What is the momentary current rating for the K655BE?
The K655BE has a momentary current rating of 25kA Symmetrical for 10 Cycles for both voltage classes.
What items are included in the K655BE kit?
Each kit contains one K655BE bushing extender housing, two tubes of lubricant (82-08), one stud (650SA), and installation instructions (IS-0242).
What is the impulse withstand rating for the 15kV class?
For the 15kV voltage class, the impulse withstand (BIL) is 95kV (1.2 x 50 microsecond wave).
What ANSI/IEEE standard does the K655BE meet?
The K655BE bushing extender meets ANSI/IEEE Standard 386, Latest Revision.
Is the K655BE bushing extender submersible?
Yes, the K655BE bushing extender features a fully shielded, fully submersible molded rubber housing.
How to Install the K655BE Deadbreak Bushing Extension
This guide provides step-by-step instructions for the safe installation and connection of the K655BE 600/900 AMP Deadbreak Bushing Extension, including cleaning, lubrication, torquing, and grounding procedures. Ensure all apparatus is de-energized before beginning.
Estimated time: 45m
Tools needed:
Torque wrench, ELASTIMOLD 600SW spanner wrench, 600-AT, Suitable tool (for 600-AT hex), 600ATM, Wire strippers
Supplies needed:
K655BE Deadbreak Bushing Extension, Lubricant (supplied or ELASTIMOLD approved), Double-ended stud (supplied), Appropriate mating component (e.g., connecting plug, deadend plug, reducing tap plug, tap well, or elbow tap plug), #14 AWG copper wire, Suitable ground connector, Protective cap (if applicable), Compression lug (if installing rubber connecting plugs), Insulating plug (for torquing rubber connecting plugs)
- Prepare the Bushing Extension
Remove protective caps from the bushing extension. Clean the entire bushing extension interface as noted in the diagram. Lubricate the interface with the supplied lubricant or an ELASTIMOLD approved lubricant. Keep mating surfaces clean. Safety Note: Ensure all apparatus is de-energized before starting.
- Prepare and Connect the Mating Product
Clean the entire interface of the connecting plug, deadend plug, reducing tap plug, reducing tap well, or elbow tap plug. Lubricate the interface with the supplied lubricant or an ELASTIMOLD approved lubricant. Finger tighten the double-ended stud (supplied with the bushing extension) into one of these mating products. Insert this assembled product into the bushing extension. While pushing the assembly onto the bushing, engage the threads and hand-tighten.
- Torque Insulating Plugs
If installing Insulating Plugs (K)650BIP, (K)675BIP, 750BIP, or 775BIP, use a torque wrench and tighten the assembly to 50 to 60 foot-pounds of torque.
- Torque Epoxy Connecting Plugs, Reducing Tap Plugs, or Tap Wells
If installing Epoxy Connecting Plugs (K)650CP, (K)675CP, Reducing Tap Plugs (K)650RTP, (K)675RTP, or Tap Wells (K)650RTW, (K)675RTW, use a torque wrench with an ELASTIMOLD 600SW spanner wrench and tighten to 40 to 48 foot-pounds of torque.
- Torque Retainer Sleeve/Pin Contact
If installing a Retainer Sleeve/Pin Contact, use a 600-AT and a suitable tool attached to the hex. Torque the assembly to 50 to 60 foot-pounds.
- Torque Elbow Tap Plug
If installing an Elbow Tap Plug 750ETP, use a torque wrench with 600ATM and tighten the assembly, exerting 50 to 60 foot-pounds of torque.
- Torque Rubber Connecting Plugs
If installing Rubber Connecting Plugs 750CP or 775CP, first assemble the components as shown in the product diagram and hand-tighten the rubber connecting plug. Temporarily install and hand-tighten a compression lug and an insulating plug to provide a means of torquing. Use a torque wrench on the insulating plug nut and tighten to 50 to 60 foot-pounds. To prevent the connecting plug from loosening when removing the insulating plug, hold the compression lug and break the torque at the insulating plug. Remove the compression lug and insulating plug.
- Complete Mating Component Assembly
Clean the remaining interface of the connecting plug, reducing tap plug, reducing tap well, or elbow tap plug. Lubricate the interface with the supplied lubricant or an ELASTIMOLD approved lubricant. Assemble the appropriate mating component according to the instructions supplied with that specific product. If an insulating plug was used, assemble the protective cap provided, as per its instructions.
- Ground the Bushing Extension
Connect a short length of #14 AWG copper wire or equivalent to the grounding eye of the bushing extension. Make a small loop and twist tightly, taking care not to damage the eye. Connect this wire to ground using a suitable connector. If mating components assembled in Step 8 require a ground, connect them to ground in this manner.
