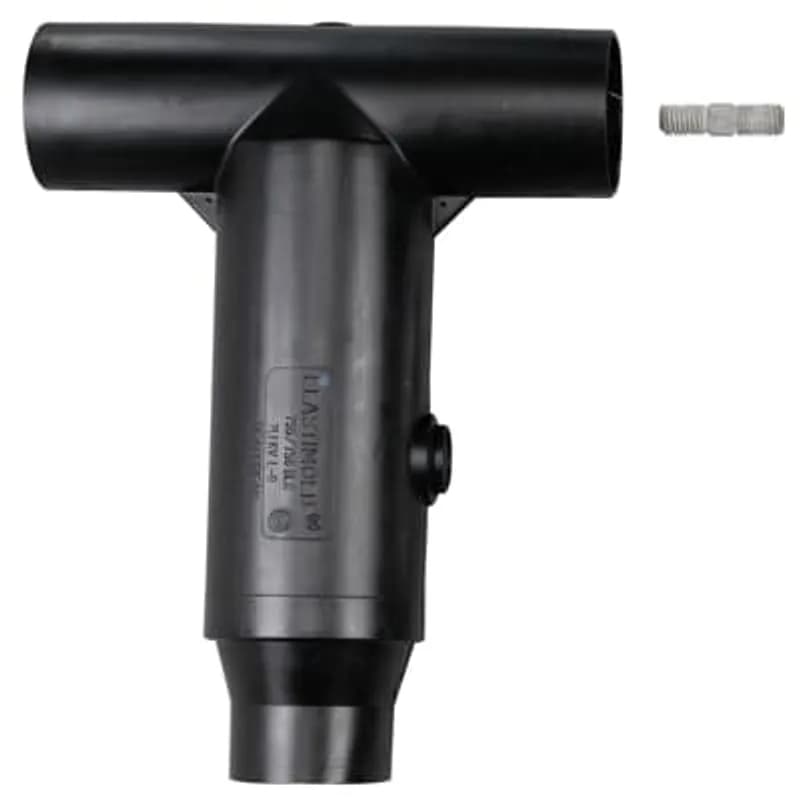

ABB Installation Products 755BLR 35kV 600 Series Deadbreak Elbow Housing Only (with Stud)
UPC: 783786667123
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35kV voltage class with 21.1kV phase-to-ground and 36.6kV phase-to-phase ratings
- 600A continuous current rating with 25kA symmetrical momentary rating
- Fully shielded, submersible molded rubber housing with 100% peroxide-cured EPDM construction
- Noncorrosive capacitive test point for safe voltage verification
- Compatible with Elastimold 600A elbow product line accessories
Specifications
Application | The Elastimold 755BLR deadbreak elbow housings are a component of the Elastimold 600 Amp elbow product line |
Material | EPDM-Rubber |
Size | 3.83 inch (97.3 mm) Diameter of Cable Entrance, 10.16 inch (258.1 mm) Width of T Body, 13.93 (353.7 mm) Centerline to Bushing Interface |
Special Features | Fully rated 35kV, 600 Amp Deadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators |
Standard | ANSI/IEEE Standard 386 |
Type | Elbow Housing |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 5.0200 L |
Package Weight (Metric) | 2.2770 kg |
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
DDL-PG21M
Degson DDL-PG21M — PG21 Metal Cable Gland. Fix cables to prevent internal wiring from being affected by pulling, swinging and other factors. Waterproof and dustproof, support IP68 high protection level.
Frequently Asked Questions
What products are compatible with the 755BLR elbow housing?
The 755BLR can be mated with Elastimold products including 750CP, 750BIP, 750ETP, 750SOP, 750S1, 750J2, 750J3, or 750J4.
What is the momentary current rating for the 755BLR?
The momentary current rating for the 755BLR is 25kA Symmetrical for 10 cycles.
What items are included in the 755BLR kit?
Each 755BLR kit contains one elbow connector housing, one tube of lubricant (82-08), one stud (750SA), and one installation instruction (IS-0244).
What functions do optional accessories provide for the 755BLR?
Optional accessories allow for visible external separation, by-pass, isolation, dead-ending, grounding, testing, and adding taps, surge arrestors, and fault current indicators.
How is the 755BLR connected or disconnected?
The 755BLR can be easily connected or disconnected using standard hand tools and equipment, but only in a de-energized state.
What materials are used in the 755BLR construction?
The 755BLR features 100% peroxide-cured construction, including insulation and conductive EPDM materials.
Is the 755BLR housing submersible?
Yes, the 755BLR features a fully shielded, fully submersible molded rubber housing.
What are the AC and DC withstand ratings?
The 755BLR has a 50kV AC one-minute withstand and a 103kV DC 15-minute withstand rating.
What is the impulse withstand rating for the 755BLR?
The 755BLR has a 150kV BIL impulse withstand rating (1.2 x 50 microsecond wave).
What is the continuous current rating of the 755BLR?
The 755BLR has a continuous current rating of 600 Amps.
How to Install the LINK-C Deadbreak Cam Link Operable Connector System
This guide provides step-by-step instructions for installing the LINK-C 600 amp deadbreak cam link operable connector system. DANGER: All apparatus must be de-energized during installation. This product should be installed only by competent personnel trained in high voltage electrical equipment safety practices.
Estimated time: 2h
Tools needed:
600ATM Operating Tool, Torque wrench, Hot stick, Welding equipment, Wire strippers, Socket wrench
Supplies needed:
ELASTIMOLD lubricant, 3/8-16 x 2 inch Studs, 3/8-16 Hex Nuts, Lockwashers, Alignment bracket hardware, #14 AWG or #12 AWG solid copper wire, Grounding connector, Mating 200 amp product
- Install 600 Amp Elbow onto Cable
Install the 600 amp elbow onto the cable according to the installation instructions supplied with the elbow. Ensure it will align with the stand-off plug.
- Install Stand-Off Plug (if applicable)
Weld three 3/8-16 x 2” studs to the faceplate per customer standard practice and dimensions. Install three hex nuts onto the studs to support the stand-off plug, ensuring it aligns with the bushing. Place the stand-off plug over the studs. Secure with three lockwashers and three hex nuts, tightening each to 12 foot-lbs torque. Verify the top surfaces of the bushing and stand-off plug are in-line.
- Install 600 Amp Bushing Extender
Clean and thoroughly lubricate the apparatus bushing and both interfaces of the 600 amp bushing extender with ELASTIMOLD lubricant. Install the bushing extender onto the apparatus bushing. Insert the 600ATM into the retainer contact, engage the internal hex broach, and thread the retainer contact into the apparatus bushing using a suitable tool on the 1” hex portion of the 600ATM. Torque to 50-60 ft-lbs.
- Install 600 Amp Elbow
Clean and lubricate the epoxy standoff plug and both interfaces of the 600 amp elbow with ELASTIMOLD lubricant. Install the elbow onto the epoxy standoff plug. Insert the 600AMT into the retainer contact through the hole in the compression lug, engage the internal hex broach, and thread into the epoxy standoff plug using a suitable tool on the 1” hex portion of the 600AMT. Torque to 50-60 ft-lbs.
- Attach Alignment Bracket to Bushing Extender
Remove the bushing extender clamp from the alignment bracket. Position the alignment bracket on the bushing extender 2.5 inches (63.5mm) from the grounding eye. Assemble the bushing extender clamp to the alignment bracket with the supplied hardware, torquing by alternating sides until clamp tabs are flush and tight.
- Attach Alignment Bracket to Elbow
Position the elbow in the alignment bracket so the elbow cuff is lined up evenly with the bushing extender cuff. Assemble the elbow clamp to the alignment bracket with the supplied hardware, torquing by alternating sides until clamp tabs are flush and tight. Ensure the elbow clamp notch faces the cable entrance of the elbow.
- Insert the LINK-C Connector
Clean and thoroughly lubricate both 600 ampere interfaces of the Link with ELASTIMOLD lubricant. Align the Link such that when inserted into the bushing extender and elbow, it is perpendicular to the switch faceplate. Insert the Link into the bushing extender and elbow, ensuring both lever arms are inside the alignment bracket legs. Engage the pivot pin into the slots in the alignment bracket legs. While pushing inward, move the lever arms downward with a hot stick eye to engage the roller pin and move the Link inward. Continue moving lever arms until perpendicular to the alignment bracket leg.
- Ground System and Install Mating Products
Ground the elbow by feeding a #14 AWG or #12 AWG solid copper wire through its grounding eye, twisting tight, and connecting to ground. Clean and lubricate the 200 amp interface on the Link. Ground and then install the desired mating product on the 200 amp interface per its supplied instructions. Ground the cable: if concentric neutral, twist wires and connect to ground; if using 20MA or 21MA devices, connect their ground lead to ground. For three-phase installations, tie all grounds from all three phases to a common ground point.
