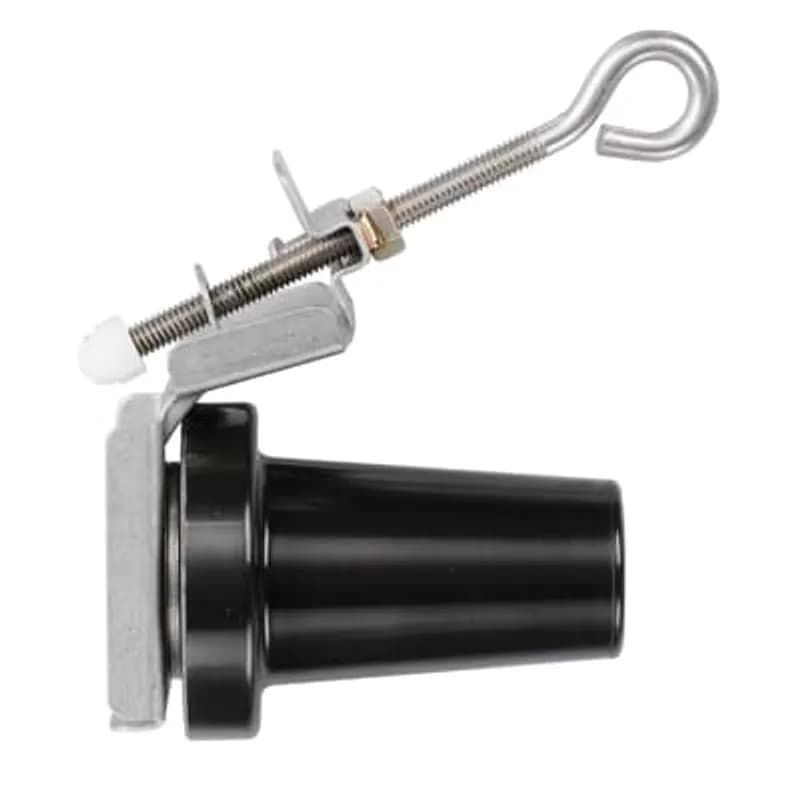

Overview
- 600 Amp continuous current rating for heavy-duty applications
- Deadbreak design enables safe connection/disconnection under load
- Rated for 15/25kV medium-voltage systems
- Includes loose stud for simplified installation
- Compact and insulated for reliable cable parking
Specifications
Application | 15/25 kV, 600 Amps |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Insulated Parking Bushing |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.2000 L |
Package Weight (Metric) | 0.5440 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
K655BLR-K0320
600 Series Elbow with out Test Point, With Stud, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 450 /Solid 500/550.
K655BVS-L2-M0380
600 Amp, 15/25KV, DeadBreak, Vault Stretcher Housing Only, with stud, 2-Way, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
K655VS-L2-M0380
600 Amp, 2 Way Vault Strecher Kit, 15/25KV, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.Frequently Asked Questions
What is the voltage rating of the K650SOPS?
The K650SOPS is rated for 15/25kV medium-voltage applications.
Is the K650SOPS suitable for deadbreak connections?
Yes, the K650SOPS features a deadbreak design for safe connection and disconnection under load.
What is the current rating of the K650SOPS?
The K650SOPS has a continuous current rating of 600 Amps.
Does the K650SOPS include mounting hardware?
The K650SOPS includes a loose stud for installation, but additional mounting hardware may be required.
What applications is the K650SOPS designed for?
The K650SOPS is designed for medium-voltage cable parking and termination in switchgear, transformers, and cable management systems.
How to Install Elastimold Deadbreak Stand-Off Plugs
This guide provides instructions for the safe and proper installation of Elastimold 650SOP, K650SOP, and 750SOP Deadbreak Stand-Off Plugs, including lubrication and mounting procedures.
Estimated time: 15m
Tools needed:
Hotstick
Supplies needed:
Lubricant, Stand-off plug assembly
- Prepare for Safe Installation
Before beginning, ensure all apparatus are de-energized. Inspect the stand-off plug and mating parts for any damage, verify ratings, and confirm compatibility. Have all required tools ready and maintain a clean work area.
- Lubricate the Stand-Off Plug Interface
Apply the supplied lubricant, or an ELASTIMOLD® approved lubricant, to the interface of the stand-off plug. Do not use substitute lubricants, as they may harm the product or its mating parts.
- Mount the Stand-Off Plug Assembly
Attach a hotstick to the eyebolt of the stand-off plug carriage assembly. Carefully slide the carriage assembly into the parking stand. Rotate the eyebolt clockwise until the carriage assembly is snug against the apparatus surface. Once secured, remove the hotstick from the eyebolt.
- Complete Installation and Follow Utility Procedures
With the stand-off plug assembly securely mounted, the physical installation is complete. From this point, follow standard utility procedures for connecting or isolating the associated elbow connector or insulated cap, ensuring all deadbreak connectors are de-energized before operation and mechanically secured if 200A.
