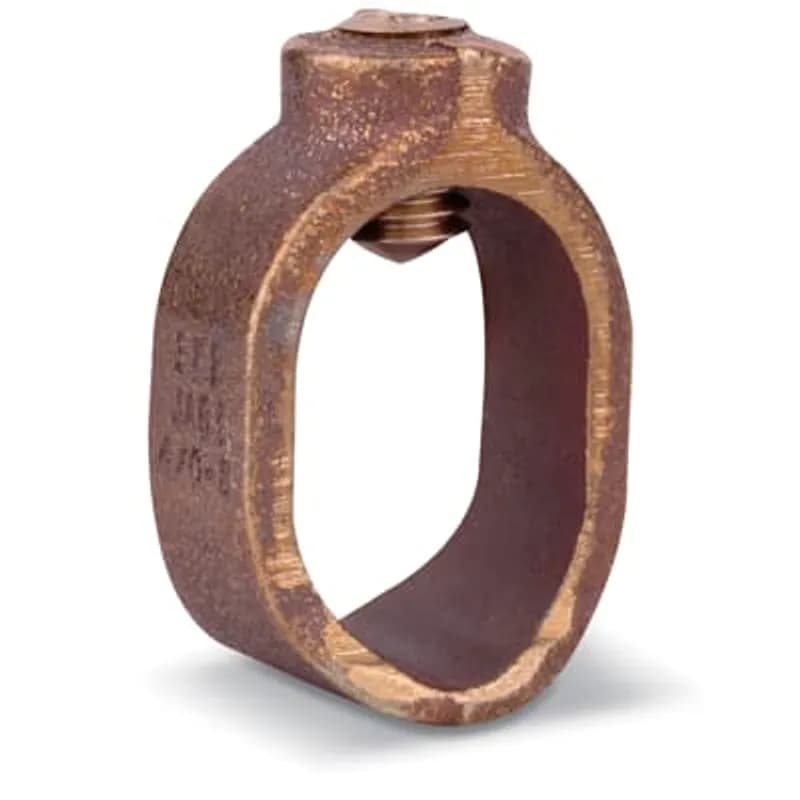

ABB - Installation Products G5-1 - 5/8 Inch Ground rod clamp high strength bronze wire range: #10 solid - #2 stranded suitable for direct burial.

ABB Installation Products G5-1 5/8 Inch Ground rod clamp high strength bronze wire range: #10 solid - #2 stranded…

UPC: 785991190502

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 40

Multiplier: 40

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB G5-1 5/8 Inch Ground Rod Clamp is a high-strength bronze clamp designed for grounding applications requiring a 5/8 inch rod and wire compatibility from #10 solid to #2 stranded. Manufactured by ABB Installation Products, this clamp is suitable for direct burial installations, ensuring long-term reliability in grounding systems. The bronze construction provides corrosion resistance and mechanical strength, critical for outdoor and underground environments where exposure to moisture and soil is common. This clamp meets the UNSPSC code 39121613, classifying it under grounding and bonding equipment. Ideal for electrical contractors and utility companies, the G5-1 clamp is a dependable choice for grounding rod connections in residential, commercial, and industrial installations. Its compact design and robust build ensure secure wire termination while maintaining compliance with electrical safety standards. No additional coatings or treatments are required, simplifying installation and reducing maintenance needs.
  • 5/8 inch ground rod clamp compatible with #10 solid to #2 stranded wire
  • High-strength bronze construction for corrosion resistance and durability
  • Suitable for direct burial installations
  • UNSPSC code 39121613 for grounding and bonding equipment
  • Manufactured by ABB Installation Products

Specifications

Conductor Material
Bronze
Conductor Size
10 - 2 AWG
Insulation
N
Standard
UL 6B55
Package Dimensions (L x W x H)
12.12 IN x 3.12 IN x 5 IN
Package Dimensions (L x W x H)
30.7848 cm x 7.9248 cm x 12.7 cm
Package Weight (Imperial)
0.1000 L
Package Weight (Metric)
0.0450 kg
