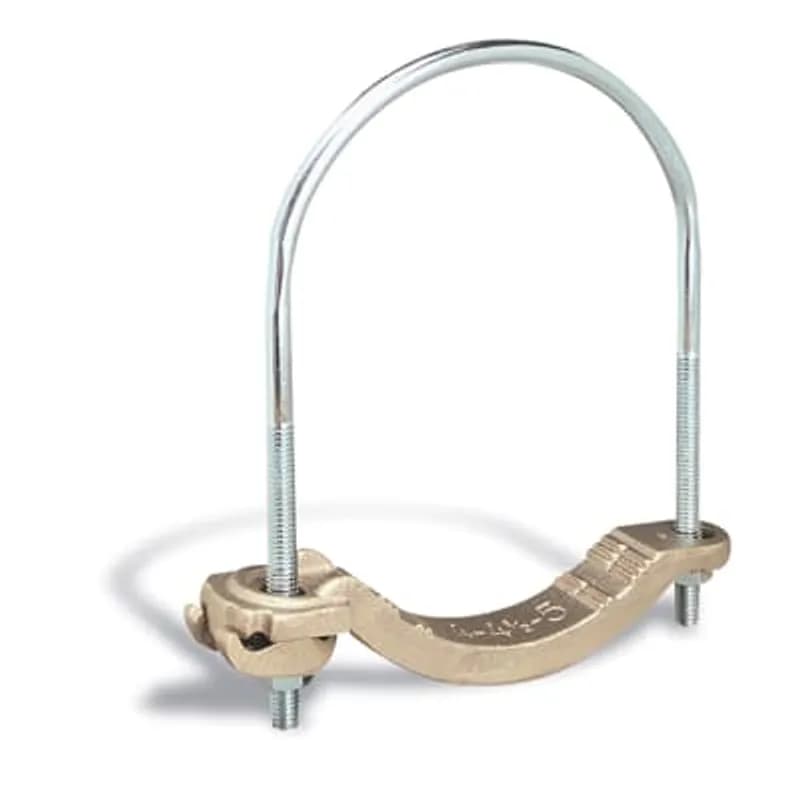

ABB - Installation Products 3908BU - Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 10 , Bronze Saddle with Bronze U-Bolt
More images
ABB - Installation Products

3908BU

UPC: 786210805832

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The ABB 3908BU Waterpipe Ground Clamp is engineered for reliable grounding connections to water pipes. Constructed with a durable bronze saddle and a robust bronze U-bolt, this clamp ensures excellent conductivity and corrosion resistance, critical for long-term performance in potentially moist environments. Designed to accommodate a wire range from 4 AWG to 4/0 AWG, it offers versatility for various grounding applications. The clamp is specifically designed for use with 10-inch water pipes, providing a secure and stable connection point. This product, identified by SKU 3908BU from ABB Installation Products, is essential for establishing a safe and effective ground path, contributing to the overall safety and integrity of electrical systems. Its solid bronze construction is chosen for its inherent resistance to galvanic corrosion when in contact with common water pipe materials, ensuring a lasting connection. The clamp's design facilitates straightforward installation, allowing for quick and secure attachment to the water pipe and subsequent connection of the grounding conductor. This component plays a vital role in electrical safety by providing a low-resistance path to earth, helping to dissipate fault currents and protect equipment and personnel.
  • Bronze saddle and U-bolt for superior conductivity and corrosion resistance
  • Accommodates wire sizes from 4 AWG to 4/0 AWG
  • Designed for secure attachment to 10-inch water pipes
  • Ensures reliable grounding connection for electrical safety
  • Durable construction from ABB Installation Products

Specifications

Application
UL Listed for Direct Burial
Conductor Material
Bronze
Conductor Size
36620
Connection Type
Clamp
Insulation
None
Material
Bronze
Size
Wire Range 4 - 4/0, Water Pipe Size 10
Standard
UL E3060
Type
Ground Clamp
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.6500 L
Package Weight (Metric)
1.2020 kg
Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 2 1/2 - 3 1/2 , Bronze Saddle with Steel U-Bolt

3904

Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 2 1/2 - 3 1/2 , Bronze Saddle with Steel U-Bolt
Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire

PGCB125200

Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire
This is a ground clamp for direct burial use. It is made of bronze conductor material and is intended to accommodate bare cable. The size is 1/2"–1" and it is for bare wire #2, 4, 6, 8 and 10 AWG copper.

95154

This is a ground clamp for direct burial use. It is made of bronze conductor material and is intended to accommodate bare cable. The size is 1/2"–1" and it is for bare wire #2, 4, 6, 8 and 10 AWG copper.
Access floor grounding clamp for 1 1/2" round pedestals.

GPQC15-1/0

Access floor grounding clamp for 1 1/2" round pedestals.
Long Stud Single Service Post Connectors for Conductors 5 - 10 Stranded, 4 - 10 Solid, Stud Size 5/16 - 18 x 1

SP2SL

Long Stud Single Service Post Connectors for Conductors 5 - 10 Stranded, 4 - 10 Solid, Stud Size 5/16 - 18 x 1
Cast Bronze with Strap Ground Clamp for Wire Range 10 - 3/0, Water Pipe Size 1/2 - 1, Conduit Size 1

JPS1

Cast Bronze with Strap Ground Clamp for Wire Range 10 - 3/0, Water Pipe Size 1/2 - 1, Conduit Size 1
Cast Bronze with Strap Ground Clamp for Wire Range 10 - 6, Water Pipe Size 1/2 - 1, Conduit Size 1/2

JPS12

Cast Bronze with Strap Ground Clamp for Wire Range 10 - 6, Water Pipe Size 1/2 - 1, Conduit Size 1/2
U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 4 - 2/0 AWG, Rod Size 4 to 4-1/2 Inches, IPS Pipe Size Max 4 Inches, Length 6-5/16 Inches, Width 5-11/16 Inches, Depth 1-9/16 Inches

GUV4021

U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 4 - 2/0 AWG, Rod Size 4 to 4-1/2 Inches, IPS Pipe Size Max 4 Inches, Length 6-5/16 Inches, Width 5-11/16 Inches, Depth 1-9/16 Inches

Frequently Asked Questions

What wire sizes does the ABB 3908BU ground clamp support?

The ABB 3908BU Waterpipe Ground Clamp is designed to accommodate wire sizes ranging from 4 AWG to 4/0 AWG.

What size water pipe is compatible with the 3908BU clamp?

This ABB ground clamp is specifically designed for use with 10-inch water pipes.

What materials are used for the saddle and U-bolt on the 3908BU?

The ABB 3908BU features a bronze saddle and a bronze U-bolt for enhanced conductivity and corrosion resistance.

What is the primary function of the ABB 3908BU waterpipe ground clamp?

The primary function of the ABB 3908BU is to provide a reliable grounding connection to water pipes for electrical safety.
