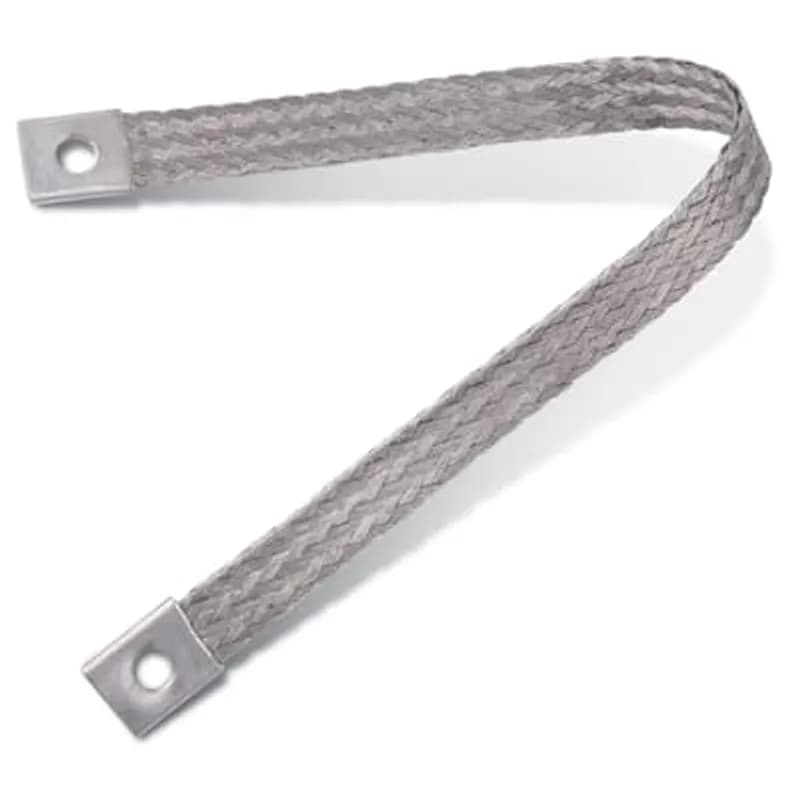

ABB - Installation Products FB2G36 - Flexible Braid 614.4 kcmil, 9/16 Inch Bolt Hole, 36 Inches Long, Tin Plated Copper Braids
ABB - Installation Products

FB2G36

UPC: 786210777771

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB Flexible Braid, SKU FB2G36, is a high-capacity electrical connection component designed for robust industrial applications. This specific unit features tin-plated copper braids, offering excellent conductivity and corrosion resistance, crucial for maintaining reliable electrical pathways in demanding environments. With a substantial cross-sectional area of 614.4 kcmil, it is engineered to handle significant current loads, ensuring efficient power distribution and minimizing energy loss. The braid is precisely manufactured to a length of 36 inches, providing ample flexibility for routing and installation within electrical cabinets, switchgear, and other industrial equipment. A key feature is the 9/16 inch bolt hole, which ensures secure and standardized fastening to busbars, terminals, and grounding points. This tin-plated copper braid is an essential component for applications requiring dependable, high-amperage connections, such as in power generation, heavy manufacturing, and data centers. Its construction prioritizes both electrical performance and long-term durability, making it a reliable choice for critical electrical infrastructure. The UNSPSC code 39121613 categorizes this product within electrical connectors and accessories, highlighting its role in electrical system assembly and maintenance.
  • 614.4 kcmil conductor size for high current capacity
  • 36 inches in length for flexible installation
  • 9/16 inch bolt hole for secure mounting
  • Tin-plated copper braids for superior conductivity and corrosion resistance
  • Manufactured by ABB - Installation Products for industrial reliability

Specifications

Connection Type
Braid
Material
Tin Plated Copper
Size
614.4 kcmil, 9/16 Inch Bolt Hole, 36 Inches Long
Standard
UL E3060
Type
Flexible Braid
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
6.9200 L
Package Weight (Metric)
3.1390 kg
#12 x 7 Strand-W CD Ground Pgtl Dog-Pt USA Made Green Zinc

PTS40C

#12 x 7 Strand-W CD Ground Pgtl Dog-Pt USA Made Green Zinc
Heavy-Duty C-Taps, Run 2/2 Tap 4/8, Polished, Copper

DGT1

Heavy-Duty C-Taps, Run 2/2 Tap 4/8, Polished, Copper
E-Z-Ground Ground Grid Copper Compression Connector, Cable Range 4/0 or 250 kcmil, Ground Rod 1/2 and 5/8 Inch, Direct Burial

GG40250-2030

E-Z-Ground Ground Grid Copper Compression Connector, Cable Range 4/0 or 250 kcmil, Ground Rod 1/2 and 5/8 Inch, Direct Burial
1/4" x 2" x 12" Grounding Busbar.

GB2D0008TPI-1

1/4" x 2" x 12" Grounding Busbar.
Grounding pigtail with an insulated lead and a GSH grounding screw on one end. It is designed to make grounding an electrical circuit fast and easy. The lead is 9 inches long and uses 10 AWG wire.

80024

Grounding pigtail with an insulated lead and a GSH grounding screw on one end. It is designed to make grounding an electrical circuit fast and easy. The lead is 9 inches long and uses 10 AWG wire.
Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 10 , Bronze Saddle with Bronze U-Bolt

3908BU

Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 10 , Bronze Saddle with Bronze U-Bolt
Long Stud Single Service Post Connectors for Conductors 5 - 10 Stranded, 4 - 10 Solid, Stud Size 5/16 - 18 x 1

SP2SL

Long Stud Single Service Post Connectors for Conductors 5 - 10 Stranded, 4 - 10 Solid, Stud Size 5/16 - 18 x 1
Cast Bronze with Strap Ground Clamp for Wire Range 10 - 3/0, Water Pipe Size 1/2 - 1, Conduit Size 1

JPS1

Cast Bronze with Strap Ground Clamp for Wire Range 10 - 3/0, Water Pipe Size 1/2 - 1, Conduit Size 1

Frequently Asked Questions

What is the length of the ABB FB2G36 flexible braid?

The ABB FB2G36 flexible braid is 36 inches long.

What is the conductor size of the FB2G36 flexible braid?

The conductor size of the FB2G36 flexible braid is 614.4 kcmil.

What is the bolt hole size for this flexible braid?

The flexible braid features a 9/16 inch bolt hole for secure mounting.

What material is the ABB flexible braid made from?

The flexible braid is constructed from tin-plated copper.
