UPC: 783786437832
Documents & Media
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*

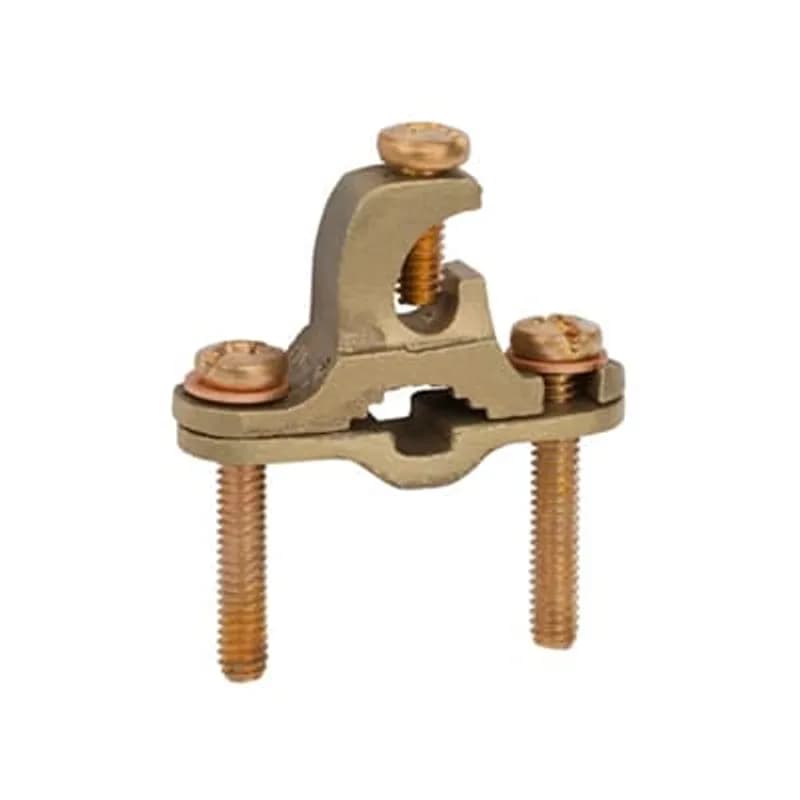

Overview
- UL-listed for direct burial in earth/concrete and connections to ground rods, pipes, or rebar up to 1"
- Accommodates wire sizes from 10 AWG to 2 AWG stranded, pipe sizes 1/2" to 1", rebar 3/8" to 1", and ground rods 1/4" to 1"
- Bronze alloy construction with high-performance stainless steel bolts for durability
- Lay-in feature reduces installation time for difficult bends or continuous loops of ground wire
- Designed for reliable mechanical connections to ensure effective fault current dissipation
Specifications
Conductor Material | Bronze |
Conductor Size | #10-#2 |
Insulation | No |
Series | JDLI |
Size | Wire Range 10 - 2, Pipe Size 1/2 - 1, Ground Rod Range 1/4 - 1 |
Special Features | Lay-in feature reduces installation time for difficult bends or continuous loops of ground wire. UL listed for connection to ground rod, pipe or rebar up to 1 inch |
Type | Ground Clamp |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1800 L |
Package Weight (Metric) | 0.0820 kg |
PGCB125200
Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire
3906BU
Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 6 , Bronze Saddle with Bronze U-Bolt
95154
This is a ground clamp for direct burial use. It is made of bronze conductor material and is intended to accommodate bare cable. The size is 1/2"–1" and it is for bare wire #2, 4, 6, 8 and 10 AWG copper.
3908BU
Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 10 , Bronze Saddle with Bronze U-Bolt
SP2SL
Long Stud Single Service Post Connectors for Conductors 5 - 10 Stranded, 4 - 10 Solid, Stud Size 5/16 - 18 x 1
JPS1
Cast Bronze with Strap Ground Clamp for Wire Range 10 - 3/0, Water Pipe Size 1/2 - 1, Conduit Size 1Frequently Asked Questions
What wire sizes does the JDLI clamp accommodate?
The JDLI clamp accommodates wire sizes from 10 AWG to 2 AWG stranded.
What pipe sizes are compatible with the JDLI clamp?
The JDLI clamp is compatible with pipe sizes ranging from 1/2 inch to 1 inch.
What ground rod sizes can the JDLI clamp connect to?
The JDLI clamp can connect to ground rods with diameters from 1/4 inch to 1 inch.
Is the JDLI clamp UL-listed for direct burial?
Yes, the JDLI clamp is UL-listed for direct burial in earth or concrete.
What materials are used in the JDLI clamp construction?
The JDLI clamp is constructed from bronze alloy with high-performance stainless steel bolts.
Does the JDLI clamp have a feature to simplify wire installation?
Yes, the JDLI clamp features a lay-in design that reduces installation time for difficult bends or continuous loops of ground wire.
What rebar sizes are compatible with the JDLI clamp?
The JDLI clamp is compatible with rebar sizes from 3/8 inch to 1 inch.
