ABB - Installation Products J-B1-25 - Cast bronze ground clamp for wire range 10-2,Water pipe size 1/2-1

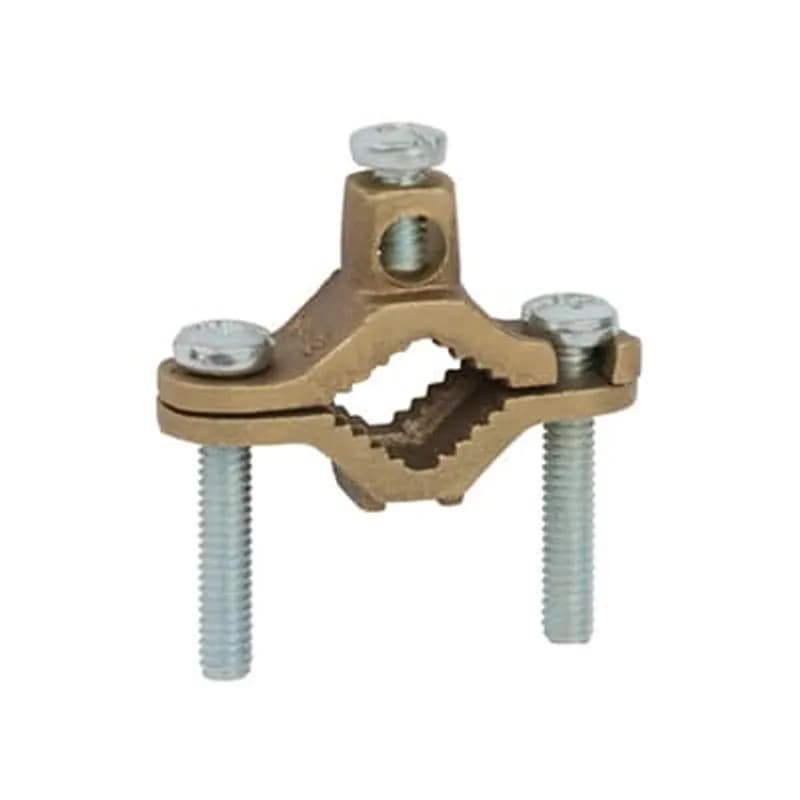

ABB Installation Products J-B1-25 Cast bronze ground clamp for wire range 10-2,Water pipe size 1/2-1

UPC: 783786070480

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB J-B1-25 is a cast bronze ground clamp designed for secure electrical grounding connections. This clamp is specifically engineered to accommodate wire sizes ranging from #10 AWG to #2 AWG, offering flexibility for various conductor gauges. It is also compatible with water pipe sizes from 1/2 inch to 1 inch, making it suitable for grounding applications on standard plumbing infrastructure. The robust cast bronze construction ensures durability and corrosion resistance in industrial and commercial environments. This clamp facilitates a reliable connection between grounding conductors and metallic piping systems, essential for electrical safety and lightning protection. Its straightforward design allows for efficient installation by trained personnel. The SKU J-B1-25 from ABB Installation Products provides a dependable solution for grounding requirements where both wire and pipe connections are necessary. Key specifications include: Wire Range: #10 AWG to #2 AWG; Water Pipe Size: 1/2" to 1". This product is manufactured by ABB, a recognized leader in electrical infrastructure components. The UNSPSC code for this product is 39121613.
  • Cast bronze construction for durability and corrosion resistance
  • Accommodates wire sizes from #10 AWG to #2 AWG
  • Compatible with water pipe sizes from 1/2 inch to 1 inch
  • Provides secure electrical grounding connections
  • Ideal for grounding conductors to metallic piping systems

Specifications

Conductor Material
Bronze
Conductor Size
10 - 2 AWG
Material
Cast Bronze
Size
Water pipe size 1/2-1
Package Dimensions (L x W x H)
4.25 IN x 3.5 IN x 0.01 IN
Package Dimensions (L x W x H)
10.795 cm x 8.89 cm x 0.0254 cm
Package Weight (Imperial)
0.1600 L
Package Weight (Metric)
0.0730 kg
