ABB Installation Products CFG 6 HS Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Heat-Shrink kit…
UPC: 783786712373
Documents & Media
Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview

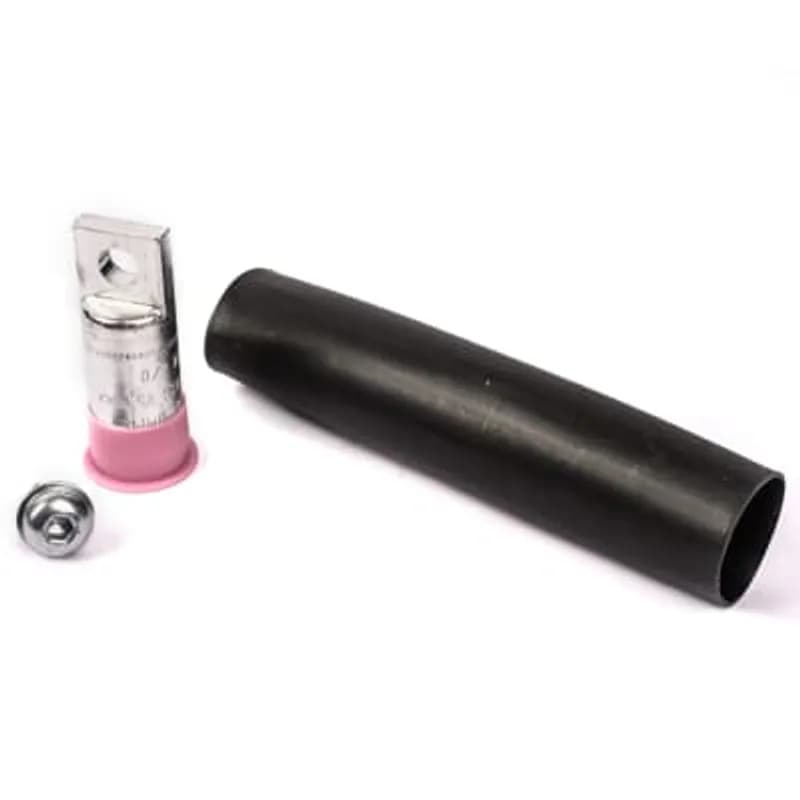

- ABB 95 Series Aluminum Flood-Seal Multi-Port Connector Kit
- Heat-shrink terminal kit for secure, insulated terminations
- Designed for #6 concentric, compressed, and compact conductors
- Flood-Seal technology provides environmental protection
- Enhances electrical integrity and system reliability
Specifications
Application | Multi-port Connector |
Color | Black |
Conductor Range | #6 STR AWG , #6 COMPR AWG , #6 COMPT AWG |
Connection | Compression |
Insulation | yes |
Material | Aluminum Lug |
Mounting | Allen Head Mounting Bolt |
Special Features | Three Die Sets Install the Complete Range of Lugs from #8 to 350 kcmil. Lugs Prefilled with Oxide-Inhibiting Compound and Capped to Prevent Oxidation and Keep out Moisture. Heat Shrink Tubing |
Type | Flood Seal Multi Port Heat Shrink Fit Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1400 L |
Package Weight (Metric) | 0.0640 kg |
CFG 6 CS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Force-Fit kit, Concentric, Compressed and Compact #6, or 16 MM2. One Outlet, Centerform Lug. 1-Hole 0.406 inch Diameter. Dies TU 52 BG 243 5/8. Kit Includes Screw and Insulating Rocket. Dual Rated for Aluminum and Copper Conductors
CEA 6-50
Tin-Plated Copper Overhead Transformer Eyebolt Adapters, pin diameter 1/2, exposed pin size 2-1/4 inch, 6 hole padCFK 4/0 HS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Heat-Shrink kit, Concentric and Compressed 4/0, Compact 250.CFK 2/0 HS
Aluminum Compression Lug Heat-Shrink Kit, Containing (1) Aluminum Lug 2/0 Stranded - Compressed, 3/0 Compact - Solid, 70 mm2, Installing Dies TX, 76, 249, 840, 11A, with one 13/32 inch diameter hole on 3/4 inch pad, Lug is 2-7/16 inch Long. (1) Screw, (1) Heat Shrink Tubing. Also includes Instruction Sheet. Dual Rated for Aluminum and Copper ConductorsCFK 1/0 HS
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Terminal Kits, Heat-Shrink kit, concentric 1/0, compressed 1/0, compact 2/0, solid 2/0, die reference 840,324,249,658,TX,76,11A
CLRTR 4
Aluminum Quick Disconnect Transformer Connectors - CLRTR Series, conductor range 12-350, stud size 5/8, outlets 4
CSS 4350
Aluminum Transformer Connector-CSS Series - screw-on style, cable range 12-350, stud size 5/8 in, insulator length 5-11/16 in, outlets 4CSS 8350-1
Aluminum Transformer Connector-CSS Series - screw-on style, cable range 12-350, stud size 1 in, insulator length 7-1/16 in, outlets 8How to Install Thomas & Betts FLOOD-SEAL 95 Heat Shrink Connector Kits
This guide provides step-by-step instructions for installing Thomas & Betts FLOOD-SEAL 95 Heat Shrink Connector Kits, including preparing the cable, crimping the lug, and properly shrinking the sleeve. WARNING: Installation must be performed by trained installers in accordance with all applicable electrical codes, standards, and safety rules to prevent electric shock.
Tools needed:
Wire strippers, Wire brush, Crimping tool, Wrench or Socket, Butane torch, Propane torch, 500°F electric heat gun
Supplies needed:
Heat shrink sleeve, Connector lug, Cable
- Prepare the Cable
Remove the insulation from the cable end and thoroughly wire brush the conductor to ensure a clean connection surface.
- Position Heat Shrink Sleeve
Slip the heat shrink sleeve over the prepared cable end, ensuring it is positioned far enough back to allow for lug crimping.
- Crimp and Connect Lug
Crimp the lug securely onto the conductor end. Wipe away any excess joint compound. Bolt the lug firmly to the contact pad on the FLOOD SEAL connector bus.
- Position Sleeve over Lug
Slide the heat shrink sleeve forward over the crimped lug until it butts firmly against the connector bus.
- Shrink Sleeve at Bus End
Apply heat evenly to the sleeve at the bus end. Continue shrinking until a bead of mastic appears at the sleeve end, indicating a complete seal.
- Shrink Sleeve over Terminal Lug
Working away from the connector bus, apply heat evenly to shrink the sleeve over the terminal lug section.
- Shrink Sleeve over Cable End
Continue applying heat evenly to shrink the sleeve over the cable end. A complete seal is achieved when a bead of mastic appears at this end.
