UPC: 786210093444
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Overview

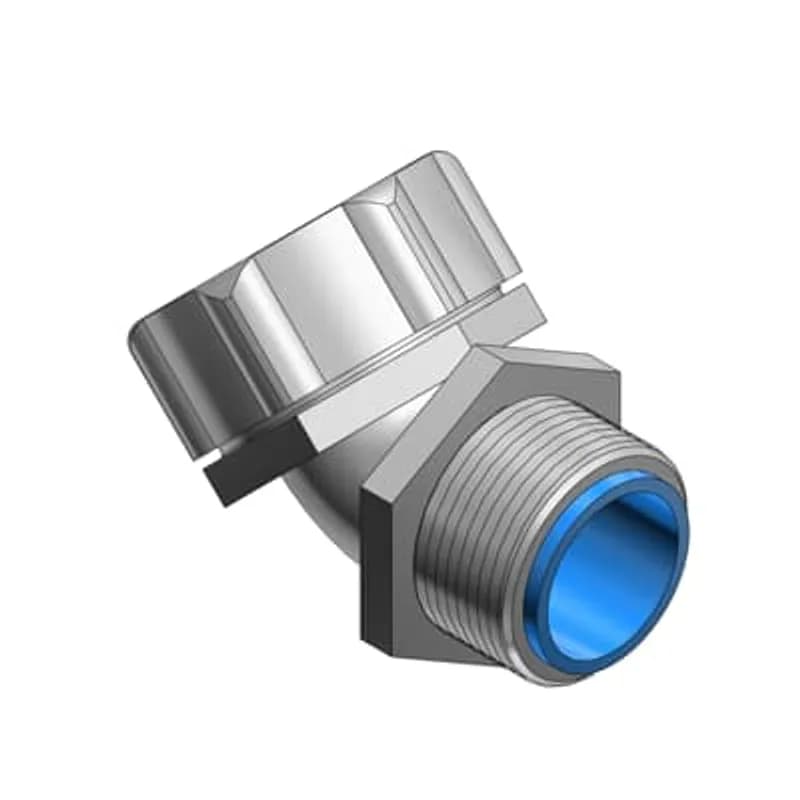

- 1-inch ISO metric thread size 32 for flexible metal conduit compatibility
- 45-degree angle design for easier installation in tight spaces
- Steel-galvanized chromate finish for corrosion resistance and durability
- Insulated construction protects against electrical interference and mechanical damage
- Suitable for hazardous locations: Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2
Specifications
Material | Nylon Insulated |
Size | 1 Inch |
Special Features | UL Listed Liquidtight |
Standard | CSA, UL E23018 |
Type | Liquidtight Flexible Metal Conduit Fittings |
Package Dimensions (L x W x H) | 6 IN x 4 IN x 4 IN |
Package Dimensions (L x W x H) | 15.24 cm x 10.16 cm x 10.16 cm |
Package Weight (Imperial) | 0.8000 L |
Package Weight (Metric) | 0.3630 kg |
Frequently Asked Questions
What materials are used for the fittings?
Trade sizes 3/8 inches to 1-1/4 inches are steel, and 1-1/2 inches to 6 inches are malleable iron, both with Zinc Chromate finish.
What trade sizes are available for these fittings?
These fittings are available in trade sizes from 3/8 inches to 6 inches (12mm to 153mm).
What types of conduit bodies are available?
The fittings are available in straight, 45°, and 90° conduit body configurations.
What thread types are supported by these fittings?
The fittings support NPT, ISO Metric, and PG thread types.
What is the maximum voltage rating for these fittings?
These fittings are suitable for use in electrical circuits up to 1,000 V.
What is the operating temperature range for these fittings?
The general working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA and -25 to +105°C (-13 to +221°F) for IEC/CE.
What ingress protection ratings do these fittings have?
They have UL Type 3, 3R, 4, 12, 13, CSA Type 3, 3R, 4, 12, 13, NEMA Type 3, 3R, 4, 12, 13, and IEC IP66, IP67 ratings.
Are these fittings suitable for hazardous locations?
Yes, they are suitable for use in Class 1 Division 2, Class 2 Division 1 & 2 Hazardous Locations per NEC® Section 500.
Do these fittings protect wire sheathing from damage?
Yes, heat curled insulators made of thermoplastic nylon protect wire sheathing from damage.
Are there specific installation code requirements?
The product must be installed in accordance with applicable national and local electrical codes.
How to Install T&B® 9000 Series Liquidtight Connectors
This guide provides step-by-step instructions for the proper installation of T&B® 9000 series liquidtight connectors with flexible metallic conduit, ensuring high performance and reliability.
Estimated time: 30m
Tools needed:
Hacksaw (32 Tooth/ln. no. set, sharp) OR Power band saw, Wrench, Smooth jaw wrench (for PVC coated connectors), Torque wrench, Hand protection, Eye protection
Supplies needed:
T&B® 9000 Series Liquidtight Connector, Liquidtight flexible metallic conduit, T&B® 140 Series Locknut (if using knockout box), T&B® 5260 Series Sealing Gasket (if using knockout box), PVC cement (optional, for PVC coated connectors if gouging occurs)
- Prepare for Installation and Ensure Safety
Before beginning, read and understand all instructions and safety information. Disconnect power to the circuit before installation to prevent risk of shock. Wear hand protection and eye protection. Ensure installation is performed by a qualified electrician in accordance with national and local electrical codes.
- Cut the Flexible Conduit
Cut the liquidtight flexible metallic conduit with a clean, square end. Use a metal jig (if available from conduit manufacturers) or a sharp hacksaw with 32 teeth per inch. For high-production environments, use a power band saw with 24-32 teeth per inch, operating at no more than 400 feet per minute. Do not use an abrasive wheel.
- Assemble the Connector Components
For 5000, 7000, and 9000 series connectors, first slide the gland nut onto the conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the Safe Edge™ Cone onto the conduit. For PVC coated connectors, use the same assembly method, but tighten with a smooth jaw wrench to prevent gouging. If gouging occurs exposing metal, apply PVC cement.
- Install Connector into Knockout Box and Secure
Insert the assembled connector into the knockout box. For knockout applications, use a T&B® 140 series locknut and a T&B® 5260 series sealing gasket (purchase separately). Ensure the 'O' ring is correctly positioned on the outside of the box. Tighten the locknut to the body according to the specified torque values: 3/8" (200 lb.-in.), 1/2" (300 lb.-in.), 3/4" (500 lb.-in.), 1" (700 lb.-in.), 1 1/4" (1000 lb.-in.), 1 1/2" (1200 lb.-in.), 2" (1600 lb.-in.), 2 1/2" (1600 lb.-in.), 3" (1600 lb.-in.), 3 1/2" (1600 lb.-in.), 4" (1600 lb.-in.).
