UPC: 786210073538
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Overview

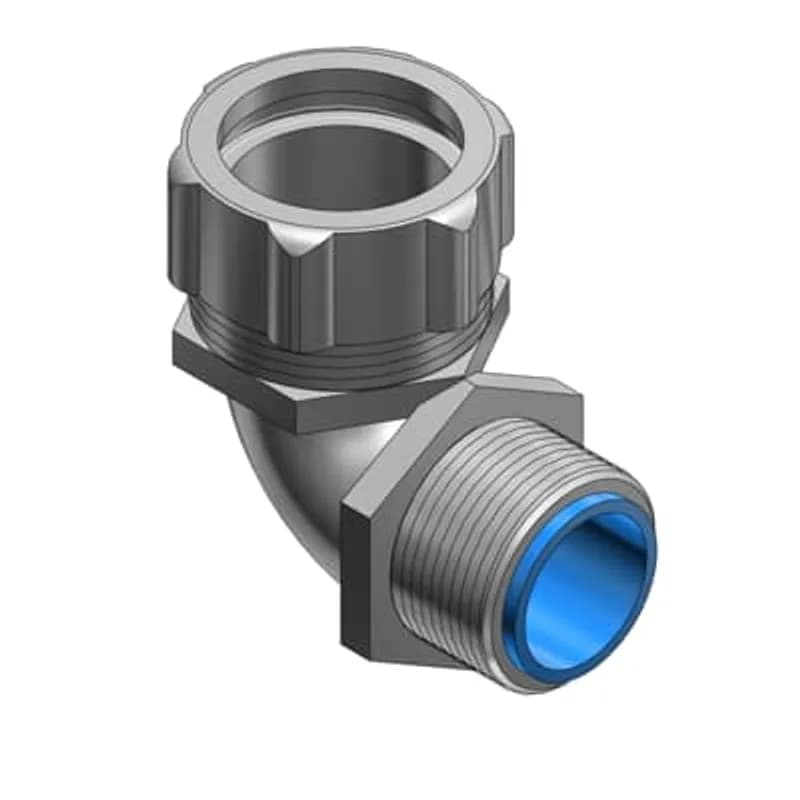

- 1/2 Inch Steel Insulated Liquidtight Connector
- 90 Degree Angle Configuration
- PG Thread Size 16
- Durable Steel Construction
- Corrosion-Resistant Chromate Finish
Specifications
Application | Nylon Insulated 90D Angle Fittings |
Connection Type | Threaded (PG) |
Material | Steel |
Material | Nylon Insulated |
Size | 1/2 Inch |
Special Features | CSA Certified Dusttight and Watertight. UL Listed Liquidtight |
Standard | CSA, UL E23018 |
Type | Liquidtight Flexible Metal Conduit Fittings |
Package Dimensions (L x W x H) | 8 IN x 5 IN x 4 IN |
Package Dimensions (L x W x H) | 20.32 cm x 12.7 cm x 10.16 cm |
Package Weight (Imperial) | 0.2500 L |
Package Weight (Metric) | 0.1130 kg |
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
5335090
3-1/2 Inch Liquidtight Flexible Metal Conduit Connector, 90 Degree Angle, Insulated, Safe to edge Ground Cone In Knockout Applications Use Sealing Ring 5269, Electro Zinc Plated to Chrome Coated, 1 Piece
Frequently Asked Questions
What standards do these liquid-tight fittings meet?
These fittings meet UL 514B, CSA C22.2 No. 18.3, and IEC 61386-1, -23 requirements. They are also CE Certified.
What are the ingress protection ratings for these fittings?
For UL/CSA/NEMA, ratings include Type 3, 3R, 4, 12, 13. For IEC, the ratings are IP66 and IP67.
What is the operating temperature range for these fittings?
The general working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA and -25 to +105°C (-13 to +221°F) for IEC/CE.
What is the impact resistance rating for these fittings?
The fittings meet IEC/EN 61386-1, -23 standard requirements for impact resistance, rated as Code 3 Medium; 6 Joules.
What is the tensile strength rating for these fittings?
The fittings meet IEC/EN 61386-1, -23 standard requirements for tensile strength, rated as Code 3 Medium; 500 N/2 min.
What materials are used for these fittings?
Fittings from 3/8 in to 1-1/4 in are steel with zinc chromate finish. Fittings from 1-1/2 in to 6 in are malleable iron with zinc chromate finish.
Are the seal rings and insulators halogen free?
Yes, the seal rings, insulators, and seal gaskets are halogen free.
Can these fittings be used in hazardous locations?
Yes, they are suitable for use in Class 1 Division 2, Class 2 Division 1 & 2 Hazardous Locations per NEC® Section 500.
What is the maximum voltage rating for these fittings?
These fittings are suitable for use in electrical circuits up to 1,000 V.
What are the primary applications for these fittings?
They are used for liquid-tight flexible metallic raceway in indoor or outdoor locations exposed to moisture, and to bond conduit to boxes or enclosures. They are suitable for general industrial and commercial construction.
How to Install T&B Liquidtight Connectors (7000 Series)
This guide provides step-by-step instructions for the proper installation of T&B liquidtight flexible metallic conduit connectors, including safety precautions and assembly details for the 7000 series.
Estimated time: 20m
Tools needed:
Hacksaw, Metal jig (optional), Smooth jaw wrench, Torque wrench
Supplies needed:
Liquidtight flexible metal conduit, T&B liquidtight connector (7000 series), T&B 140 series locknuts (for knockout applications), T&B 5260 series sealing gaskets (for knockout applications), PVC cement (if needed)
- Prepare for Installation and Observe Safety
Before starting, read and understand all instructions and safety information. Disconnect power to avoid risk of shock. Ensure installation is performed by a qualified electrician in accordance with national and local electrical codes. Wear hand and eye protection.
- Cut the Flexible Conduit
Cut the flexible conduit with a clean, square end. Use a metal jig or a sharp hacksaw (32 Tooth/ln. no. set). For high production, a power band saw (24-32 Tooth/ln. wavy set, not more than 400’/minute) can be used. Do not use an abrasive wheel.
- Assemble the Connector Components
For 5000, 7000, and 9000 series connectors, first slide the gland nut onto the flexible conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the Safe Edge™ Cone into the connector body. For PVC coated connectors, tighten with a smooth jaw wrench; if gouging occurs, apply PVC cement.
- Mount the Connector to the Knockout Box
For knockout applications, use T&B® 140 series locknuts and 5260 series sealing gaskets (purchase separately). For 7000 and 9000 series, order the locknut separately. Insert the connector body through the knockout hole from the outside of the box, then secure it by threading the locknut onto the connector body from the inside.
- Tighten the Connector
Securely tighten the gland nut onto the connector body to fasten the conduit. Refer to the torque table for specific tightening values based on the fitting's trade size (e.g., 3/8" = 200 lb.-in., 1/2" = 300 lb.-in., 3/4" = 500 lb.-in., 1" = 700 lb.-in., 1 1/4" = 1000 lb.-in., 1 1/2" = 1200 lb.-in., 2" = 1600 lb.-in., 2 1/2" = 1600 lb.-in., 3" = 1600 lb.-in., 3 1/2" = 1600 lb.-in., 4" = 1600 lb.-in.). Ensure the locknut is also firmly tightened to the box wall.
