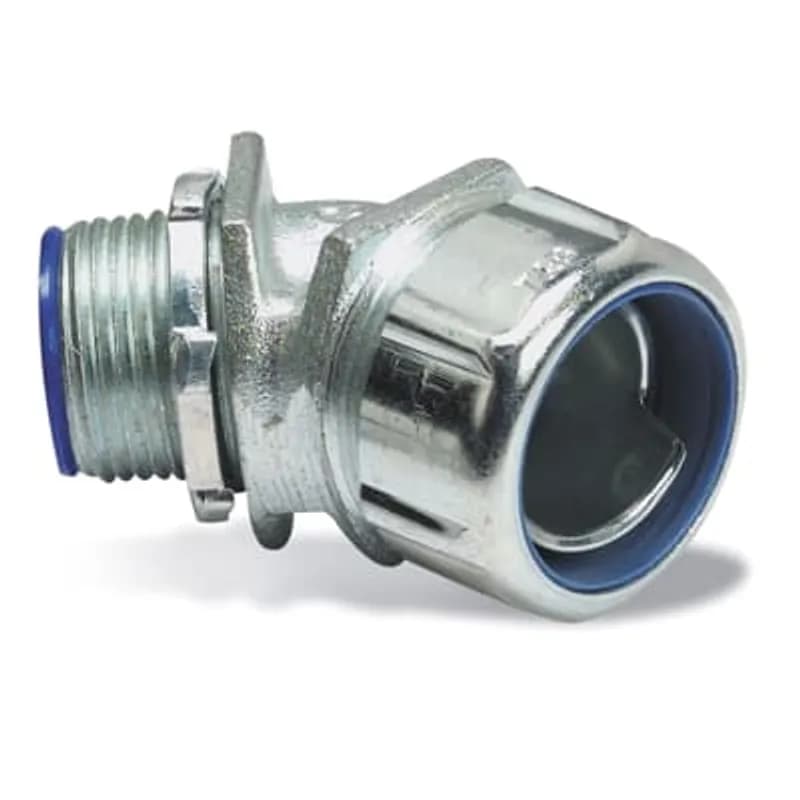

ABB Installation Products 5344-SG 1 Inch 45 Degree Malleable Iron Insulated Connector With Sealing Gasket
UPC: 786209928290
Documents & Media
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 1-inch conduit size for broad compatibility
- Malleable iron construction for superior strength
- 45-degree angle for efficient conduit routing
- Integrated sealing gasket for environmental protection
- Insulated design for enhanced safety
Specifications
Material | Malleable Iron |
Size | 1 Inch |
Standard | UL E23018 |
Type | Connectors-45 Degree |
Package Dimensions (L x W x H) | 6.25 IN x 4.75 IN x 4.25 IN |
Package Dimensions (L x W x H) | 15.875 cm x 12.065 cm x 10.795 cm |
Package Weight (Imperial) | 0.5700 L |
Package Weight (Metric) | 0.2590 kg |

7353
1/2 Inch 90 Degree Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 16
5335090
3-1/2 Inch Liquidtight Flexible Metal Conduit Connector, 90 Degree Angle, Insulated, Safe to edge Ground Cone In Knockout Applications Use Sealing Ring 5269, Electro Zinc Plated to Chrome Coated, 1 PieceHow to Install T&B Liquidtight Connectors
This guide provides the proper method for installing T&B liquidtight connectors for flexible metallic conduit, ensuring high performance and reliability. Disconnect power before installation. Product should be installed by a qualified electrician in accordance with national and local electrical codes.
Estimated time: 30m
Tools needed:
Hacksaw (32 Tooth/ln. no. set), Power band saw (24-32 Tooth/ln. wavy set), Smooth jaw wrench, Metal jig
Supplies needed:
Liquidtight flexible metal conduit, Locknuts (for knockout/7000/9000 series), Sealing gaskets (for knockout applications), PVC cement (optional)
- Prepare the Conduit
Cut the flexible conduit with a clean, square end. Use a metal jig, a 32 Tooth/ln. no. set sharp hacksaw, or a 24-32 Tooth/ln. wavy set power band saw (not more than 400’/minute). Do not use an abrasive wheel. Wear hand and eye protection during this step.
- Assemble the Connector Components
For 5000, 7000, 9000 series, and PVC coated 3300 series connectors, slide the gland nut onto the conduit, then slide on the nylon sealing ring, and finally thread in the Safe Edge™ Cone. For PVC coated connectors, tighten with a smooth jaw wrench; if gouging occurs exposing metal, PVC cement is recommended. For knockout applications, use T&B® 140 series locknuts and 5260 series sealing gaskets (purchase separately). For 7000 and 9000 series, order locknut separately.
- Secure the Connector to the Box
Insert the connector body into the knockout box. Secure the connector by tightening the locknut to the body. Refer to the provided torque table for the correct tightening torque based on the fitting's trade size (e.g., 3/8" requires 200 lb.-in., 1/2" requires 300 lb.-in., 3/4" requires 500 lb.-in., 1" requires 700 lb.-in., 1 1/4" requires 1000 lb.-in., 1 1/2" requires 1200 lb.-in., 2"-4" requires 1600 lb.-in.). Ensure the 'O' ring is correctly positioned on the outside of the box for 5365-5370 series. For Chase® connector assemblies, lock-up by tightening the Chase® Nipple to the body or by turning the body onto the Chase® Nipple.
