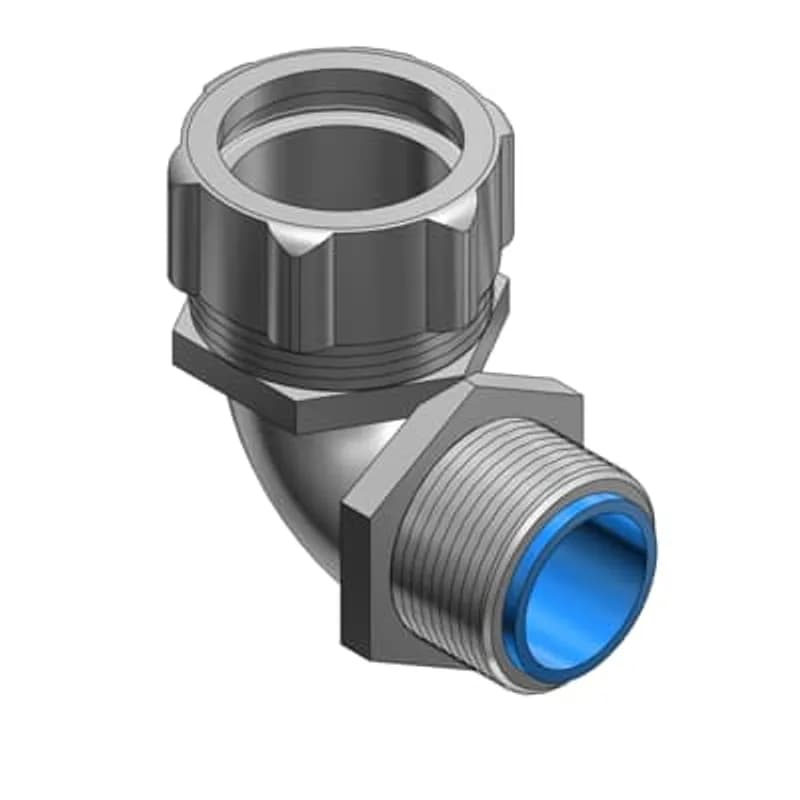

ABB Installation Products 9353-TB 3/4 Inch 90 Degree Steel Insulated Liquidtight Connector With ISO Metric Thread and…
UPC: 786210093536
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 90-degree angle for efficient conduit routing in tight spaces
- Steel construction with zinc-plated chromate finish for corrosion resistance
- ISO metric thread size 25 for metric conduit compatibility
- Santoprene® sealing gasket and nylon insulator for environmental protection
- Rated for temperatures up to 105°C and UL/CSA Type 3, 3R, 4, 4X, 6, 12, 13
- Chromate finish provides corrosion resistance.
Specifications
Declaration of Conformity - CE | 9AKK107492A9884 |
Material | Nylon Insulated |
Size | 3/4 Inch |
Special Features | UL Listed Liquidtight |
Standard | UL E23018 |
Type | Liquidtight Flexible Metal Conduit Fittings |
Package Dimensions (L x W x H) | 6 IN x 4 IN x 4 IN |
Package Dimensions (L x W x H) | 15.24 cm x 10.16 cm x 10.16 cm |
Package Weight (Imperial) | 0.5000 L |
Package Weight (Metric) | 0.2270 kg |
Frequently Asked Questions
What ingress protection ratings does the product have?
The product has UL Type 3, 3R, 4, 12, 13; CSA Type 3, 3R, 4, 12, 13; NEMA Type 3, 3R, 4, 12, 13; and IEC IP66, IP67 ratings.
What voltage can these fittings handle?
These fittings are suitable for use in electrical circuits up to 1,000 V.
What are the operating temperature limits?
The working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA and -25 to +105°C (-13 to +221°F) for IEC/CE.
What are the available trade sizes?
The product is available in trade sizes from 3/8 inches to 6 inches (12mm to 153mm).
What standards do these fittings conform to?
The fittings conform to UL 514B, CSA C22.2 No. 18.3, IEC/EN 61386-1, -23, RoHS, NEMA FB-1, JIC EGP1, JIC EMP1, Federal Specification A-A 50552, and H-28.
Are these fittings suitable for hazardous locations?
Yes, they are suitable for use in Class 1 Division 2, Class 2 Division 1 & 2 Hazardous Locations per NEC® Section 500.
What standards do these fittings conform to?
The fittings conform to UL 514B, CSA C22.2 No. 18.3, IEC/EN 61386-1, -23, RoHS, NEMA FB-1, JIC EGP1, JIC EMP1, Federal Specification A-A 50552, and H-28.
Are these fittings suitable for hazardous locations?
Yes, they are suitable for use in Class 1 Division 2, Class 2 Division 1 & 2 Hazardous Locations per NEC® Section 500.
What ingress protection ratings does the product have?
The product has UL Type 3, 3R, 4, 12, 13; CSA Type 3, 3R, 4, 12, 13; NEMA Type 3, 3R, 4, 12, 13; and IEC IP66, IP67 ratings.
What voltage can these fittings handle?
These fittings are suitable for use in electrical circuits up to 1,000 V.
How to Install T&B Liquidtight Connectors
This guide provides detailed instructions for the proper installation of T&B liquidtight connectors with flexible metallic conduit, ensuring high performance and reliability in accordance with electrical codes.
Estimated time: 30m
Tools needed:
Hacksaw (32 Tooth/inch), Metal jig (optional), Power band saw (optional), Smooth jaw wrench, Torque wrench, Hand protection, Eye protection
Supplies needed:
T&B liquidtight connector, Liquidtight flexible metallic conduit, PVC cement (if needed), T&B 140 series locknut (for knockout applications), 5260 series sealing gasket (for knockout applications)
- Observe Safety Precautions
WARNING: Disconnect all power before beginning installation to prevent risk of electrical shock. CAUTION: Ensure installation is performed by a qualified electrician in accordance with national and local electrical codes. Wear hand protection and eye protection during the entire installation process.
- Prepare the Flexible Conduit
Cut the liquidtight flexible metallic conduit with a clean, square end. Use a metal jig if available, or a sharp hacksaw with a 32 Tooth/inch no. set. For high production, use a power band saw with a 24-32 Tooth/inch wavy set, operating at no more than 400 feet per minute. Do not use an abrasive wheel for cutting.
- Assemble the Liquidtight Connector
For 5000, 7000, 9000 series, and PVC coated 3300 series connectors, first slide the gland nut onto the conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the Safe Edge™ Cone into the connector body. If using a PVC coated connector, tighten with a smooth jaw wrench; if gouging occurs exposing metal, apply PVC cement.
- Install Connector into Knockout Box
Insert the connector body into the knockout box. Ensure the 'O' ring (for 5365-5370 series) or the blue insulator throat (for 5371 series) is correctly positioned on the outside of the box. For knockout applications, use T&B 140 series locknuts and 5260 series sealing gaskets (purchased separately). For 7000 and 9000 series, order the locknut separately.
- Secure the Connector with Correct Torque
Tighten the locknut onto the connector body to secure it to the box wall. Refer to the tightening torque table for the specific trade size of your fitting: 3/8" (200 lb.-in.), 1/2" (300 lb.-in.), 3/4" (500 lb.-in.), 1" (700 lb.-in.), 1 1/4" (1000 lb.-in.), 1 1/2" (1200 lb.-in.), 2" (1600 lb.-in.), 2 1/2" (1600 lb.-in.), 3" (1600 lb.-in.), 3 1/2" (1600 lb.-in.), 4" (1600 lb.-in.).
