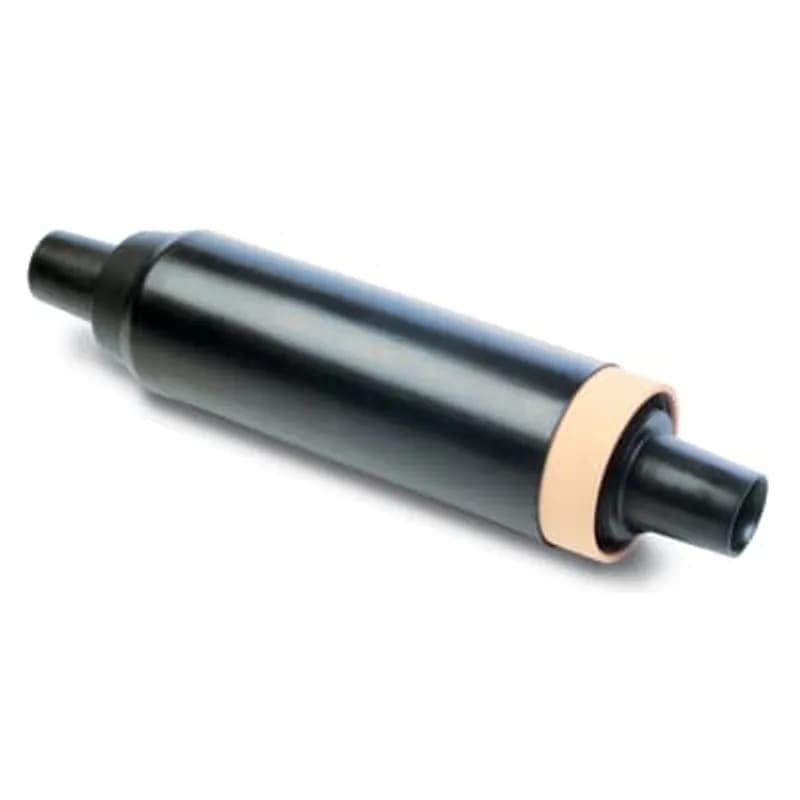

69TCJS44247P5MANNB

They are used on solid dielectric cables for 46 kV through 138 kV class systems, providing permanent, fully shielded, fully submersible cable joints for direct-burial or vault applications.

For Style 1 (through 69 kV), insulation diameters are 1.43 in to 2.58 in. For Style 4 (through 138 kV), they are 2.25 in to 3.62 in.

Field molds, wrapping machines, or pre-stretch are not required. A low-cost assembly tool is available, and installation is easy to learn.

Yes, a shield break option is provided for cross bonding purposes on Style 4 joints. Joints may be installed as a standard or non-shield break.

The maximum system voltage for 69 kV class TCJ joints is 72.5 kV.

The Basic Impulse Level (BIL) for 138 kV class TCJ joints is 650 kV (1.2 x 50μs; 10 pos., 10 neg., impulses).

The maximum continuous conductor temperature rating for TCJ transmission cable joints is 90 °C.

The minimum corona extinction voltage for 69 kV class TCJ joints is 60 kV (at 3 pC sensitivity).

TCJ transmission cable joints meet type tests per IEC 60840/IEEE 404 and the semi-conductive shield meets IEEE 592.

Each TCJ joint undergoes production tests including minimum corona extinction voltage and AC withstand, ensuring consistent quality.
