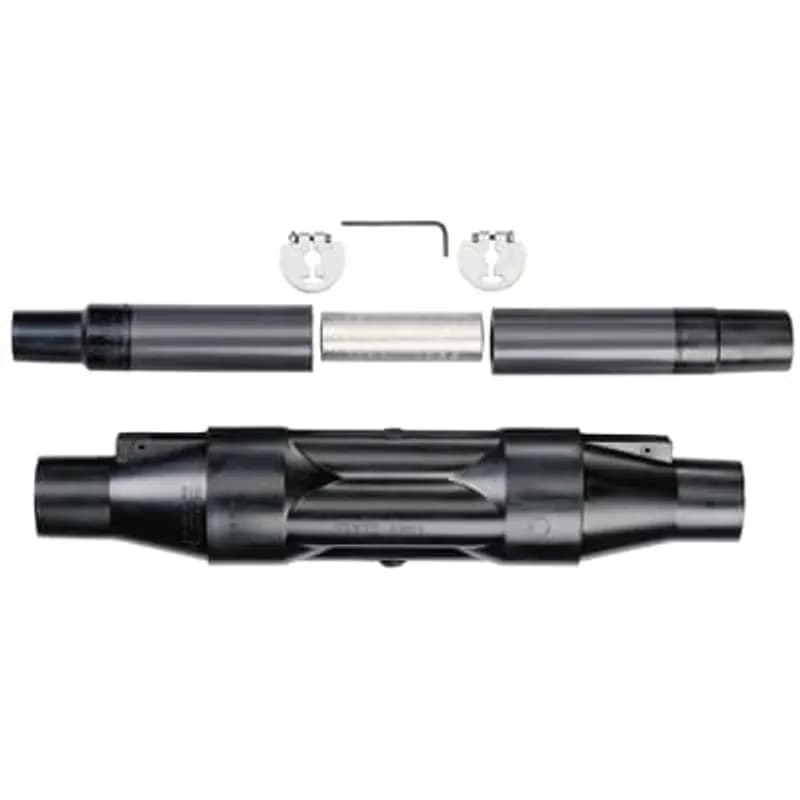

15PCJ2G1240-G1230

PCJ power cable joints can be used with both copper and aluminum conductors, accommodating a wide range of sizes up to 1250 kcmil.

When constructing a catalog number for a transition joint, list the larger connector first and the smaller connector second.

No, copper compression connectors are suitable for copper-to-copper connections only and must NOT be used on aluminum conductors.

Elastimold PCJ power cable joints are available in 15 kV, 25 kV, and 35 kV classes.

The pin-and-socket interlock of the PCJ power cable joints is designed to withstand a pull force up to 500 lb.

No, the cable entrance engages the insulation shielding of the cable, eliminating the need for taping.

The grounding eye provides a convenient point to connect a ground wire to the molded conductive shield, placing the shield at ground potential.

The short-time current rating is equal to that of the cable rating, up to 35 kA.

The continuous current rating of PCJ power cable joints is equal to that of the cable rating.

PCJ power cable joints provide a permanent, fully shielded, fully submersible splice suitable for direct-burial, underground vault, and overhead applications.
