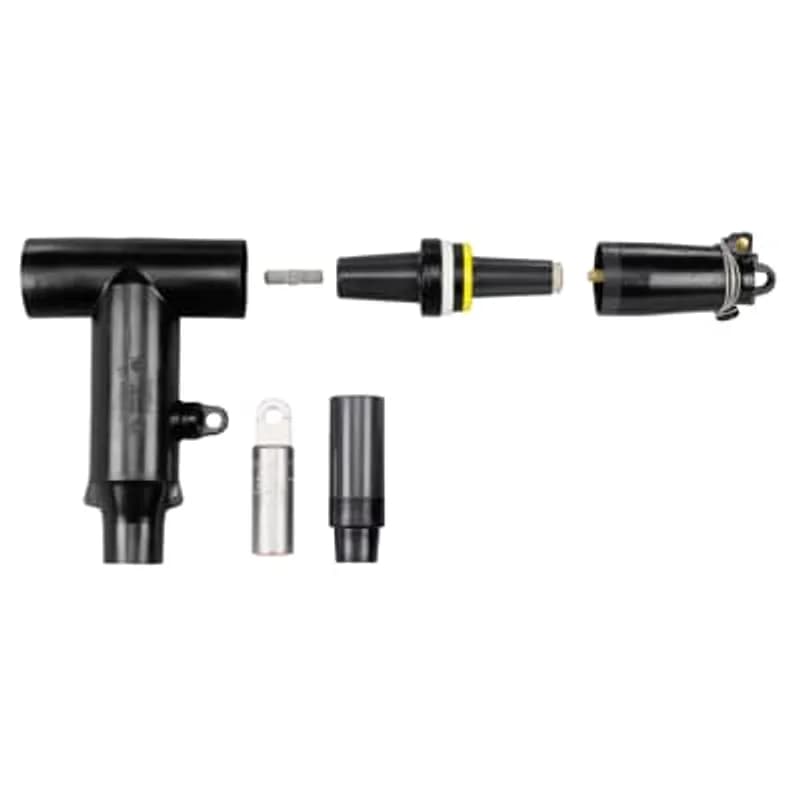

ABB Installation Products 656ETP-MAC04-DRG 15kV, 600 Amp, Elbow Tap Plug, Test and Ground Connector Kit with Test Point. Includes…

The system is compatible with Elastimold T-body, vault stretcher, and straight receptacles.

The bolt heads shear off at the required torque, leaving a smooth, flush finish with no exposed jagged edges that could injure personnel or equipment.

The Elastimold advanced shear bolt connection system meets the IEEE386 latest revision.

Yes, it is recommended to use the connector vise, part number CV1000, to hold the connector securely during the shearing process.

Torque bolts steadily with a wrench until the head shears off, starting with the bolt farthest from the connector head and working toward the head.

The circuit must be de-energized before beginning the installation of the connector.

The shear bolt connectors are suitable for 600/900 amp elbow connectors, vault stretchers, and straight receptacles from 15 kV up to 35 kV.

Yes, the shear bolt connectors are compatible with both aluminum and copper conductors.

These shear bolt connectors are applicable for 600 amp and 900 amp current ratings.

Only a standard wrench is needed for installation; no dies or pneumatic tools are required.
