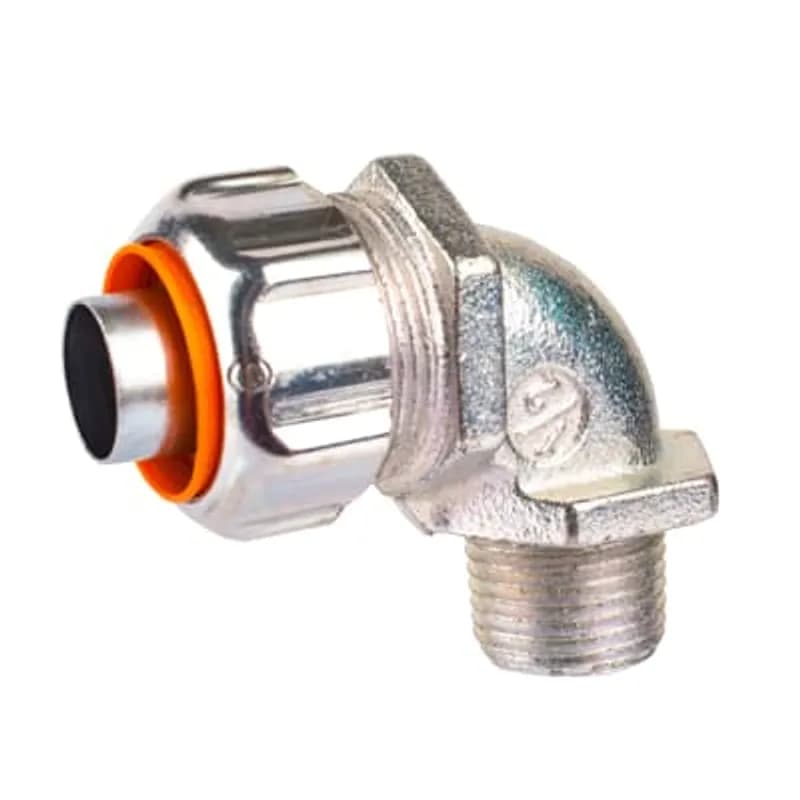

ABB Installation Products 5351-PT 3/8 Inch 90 Degree Malleable Iron Insulated Liquidtight Push-in Connector
UPC: 786209696625
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 3/8 Inch conduit size
- 90 Degree angle for efficient routing
- Malleable iron construction for durability
- Insulated design for conductor protection
- Liquidtight push-in connection for ease of installation
Specifications
Application | For Liquid and Dust-Tight Connections Between Flexible Jacketed Metallic Conduit and a Box or an Enclosure |
Connection Type | Push-in |
Declaration of Conformity - CE | 9AKK107492A9906 |
IP Rating | IP66 |
Material | Malleable Iron |
Size | 3/8 Inch |
Special Features | Innovative Labor-Saving Design, Simple Push-In Connection |
Standard | UL E23018, CSA |
Type | Connectors-90 Degree |
Package Dimensions (L x W x H) | 6 IN x 5 IN x 4 IN |
Package Dimensions (L x W x H) | 15.24 cm x 12.7 cm x 10.16 cm |
Package Weight (Imperial) | 0.2300 L |
Package Weight (Metric) | 0.1040 kg |
How to Install a 5351-PT Push-in Liquidtight Flexible Metal Conduit Fitting
This guide provides step-by-step instructions for the safe and proper installation of a 5351-PT series push-in liquidtight flexible metal conduit fitting. Ensure compliance with electrical codes and safety warnings.
Estimated time: 30m
Tools needed:
Hacksaw, Band saw, Deburring tool, Torque wrench
Supplies needed:
Liquidtight flexible metal conduit, 5351-PT Push-in Liquidtight Flexible Metal Conduit Fitting
- Prepare the Conduit
WARNING: Disconnect all power before beginning installation to prevent risk of shock, injury, or death. Using a sharp hacksaw or band saw, cut the liquidtight flexible metal conduit cleanly and squarely. Remove any burrs or frayed material from the cut edge to ensure proper fitting.
- Prepare the Fitting
Do NOT disassemble the fitting. Lightly spin the Gland Nut clockwise until you feel minor resistance. This indicates the Sealing Ring and Ground Cone chamfer are in contact and the fitting is ready for conduit insertion.
- Insert the Conduit
Align the prepared conduit with the exposed end of the Ground Cone. Carefully push the conduit onto the Ground Cone. Once the conduit end enters the Sealing Ring's throat, firmly push it until it bottoms out. To verify full insertion, mark the conduit at the specified depth (e.g., 13/16" for 3/8" or 1/2" trade size) from the cut end; this mark should align with the top of the sealing ring when fully inserted. DO NOT pull back on the conduit once it is fully inserted.
- Secure the Gland Nut
Using a torque wrench, tighten the Gland Nut to the specified torque value from the table (e.g., 200 lbs-in for 3/8" trade size, 300 lbs-in for 1/2", 500 lbs-in for 3/4", 700 lbs-in for 1"). The fitting must be fully torqued for proper performance and liquidtight sealing. NOTE: The Ground Cones are for one-time use only. If removed, replace the entire fitting.
