Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview

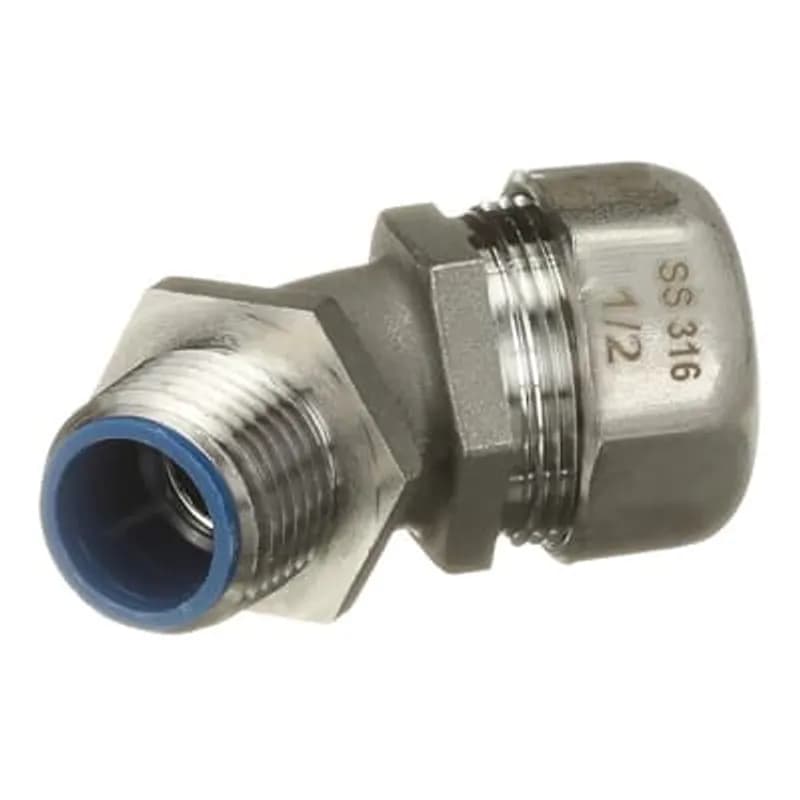

- 1/2 Inch, 45 Degree Liquidtight Fitting for Flexible Metallic Conduit
- Constructed from Durable 316 Stainless Steel for Superior Corrosion Resistance
- NEMA Ratings: 3, 3R, 4, 4X for Protection Against Dust, Water, and Corrosion
- UL/CSA Listed for Code Compliance and Safety
- Includes Duraplated Ground Cone for Reliable Electrical Grounding
Specifications
Application | Connects Flexible Metallic Liquidtight Conduit to a Box or Enclosure |
Color | Metallic |
Declaration of Conformity - CE | 9AKK107492A9904 |
Finish | None |
Insulation | True |
Material | 316 Stainless Steel |
Material | 316 Stainless Steel with Duraplated Ground Cone |
NEMA Rating | 3, 3R, 4, 4X |
NEMA Rating | 3;3R;4;4X |
Size | 1/2 Inch |
Special Features | Stronger and More UV-resistant than Nonmetallic Fittings |
Standard | UL E23018, CSA |
Temperature Rating, Maximum | 221 F |
Temperature Rating, Maximum | 105 C |
Temperature Rating, Minimum | 221 F |
Temperature Rating, Minimum | 105 C |
Type | 45 Degree Fitting for Flexible Metallic Conduit |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.2400 L |
Package Weight (Metric) | 0.1090 kg |
9355SST6-6
Liguid-tight 90 Degree Fitting, Trade Size 1-1/4 Inch, M40 Thread, 316 Stainless Steel Body and Ground Cone
5343SST6
3/4 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.70 Inches/68.58mm, Width 1.64 Inches/41.66mm, Height 2.10 Inches/53.34mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone
5345SST6
1-1/4 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 3.90 Inches/99.06mm, Width 2.25 Inches/57.15mm, Height 2.86 Inches/72.64mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5344SST6
1 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 3.32 Inches/84.33mm, Width 1.87 Inches/47.50mm, Height 2.40 Inches/60.96mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5341SST6HT
3/8 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.18 Inches/55.37mm, Width 1.14 Inches/28.96mm, Height 1.43 Inches/36.32mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5346SST6
1-1/2 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 4.34 Inches/110.24mm, Width 2.56 Inches/65.02mm, Height 3.21 Inches/81.53mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5342SST6HT
1/2 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.37 Inches/60.20mm, Width 1.33 Inches/33.78mm, Height 1.76 Inches/44.70mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5347SST6
2 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 5.00 Inches/127.00mm, Width 3.05 Inches/77.47mm, Height 3.85 Inches/97.76mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground ConeFrequently Asked Questions
What conduit size does the 5342SST6 fit?
The 5342SST6 is designed for 1/2" flexible metallic conduit.
What is the temperature range for this fitting?
The fitting operates reliably from 0°C to 105°C.
Is the 5342SST6 corrosion-resistant?
Yes, it is constructed from type 316 stainless steel for superior corrosion resistance.
What NEMA ratings does this fitting have?
The fitting meets NEMA ratings 3, 3R, 4, and 4X for environmental protection.
Does the fitting include a grounding feature?
Yes, it features a Duraplated ground cone for reliable grounding.
What certifications does the 5342SST6 have?
The fitting is UL and CSA Listed for safety and compliance.
What are the dimensions of the 5342SST6?
The fitting measures 2.37" (60.20mm) in length, 1.33" (33.78mm) in width, and 1.76" (44.70mm) in height.
Is the fitting UV-resistant?
Yes, it has high UV resistance for outdoor durability.
What type of conduit is compatible with this fitting?
The fitting is designed for flexible metallic conduit systems.
How to Install a 5342SST6 Liquid-Tight Flexible Metallic Conduit Fitting
This guide provides step-by-step instructions for properly cutting flexible metallic conduit and assembling the 5342SST6 stainless steel liquid-tight fitting for secure and reliable installations in knockout applications.
Estimated time: 15m
Tools needed:
Hacksaw (32 Tooth/In. blade), Metal jig (optional), Power band saw (optional, 24-32 Tooth/In. blade), Standard screwdriver, Hammer
Supplies needed:
5342SST6 Stainless Steel Liquid-Tight Fitting, Liquid-tight flexible metal conduit, LNSS/050 Locknut (purchase separately), 5262 Seal Gasket (purchase separately)
- Cut the Flexible Metallic Conduit
Ensure a clean, square cut on the end of the flexible metallic conduit. Use a metal jig or a sharp hacksaw with a 32 Tooth/In. blade. For high-volume production, a power band saw with a 24-32 Tooth/In. blade, operating at no more than 400 feet per minute, is recommended. Do not use an abrasive wheel for cutting.
- Assemble the Fitting Components onto the Conduit
Slide the stainless steel gland nut onto the prepared end of the flexible conduit. Next, slide the nylon sealing ring onto the conduit, ensuring its correct orientation. Finally, thread the SAFE-EDGE® ground cone into the conduit end.
- Install the Fitting into the Enclosure Box Wall
For knockout applications, insert the fitting body through the box wall. Place the 5262 seal gasket onto the fitting body against the exterior of the box wall. From the interior of the box, thread the LNSS/050 locknut onto the fitting body. Hand-tighten the locknut, then further tighten it by 1/4 turn using a hammer and a standard screwdriver or an equivalent method, as per UL, CSA, and NEMA recommendations.
- Secure the Gland Nut
Tighten the stainless steel gland nut to the recommended UL value of 300 lb-in (33.9 N-m) for the 1/2 inch NPT fitting. This ensures a liquid-tight and dust-tight installation, providing high performance and reliability.
