Overview

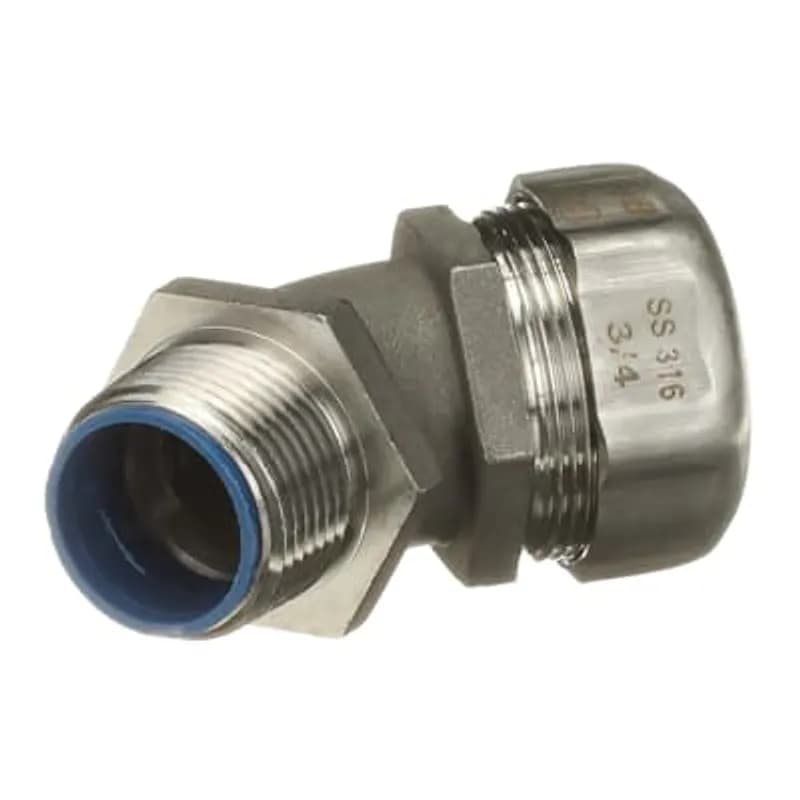

- 3/4 Inch Liquidtight Fitting for Flexible Metallic Conduit
- Constructed from 316 Stainless Steel with Duraplated Ground Cone
- High UV Resistance and Superior Corrosion Resistance
- NEMA Ratings: 3, 3R, 4, 4X for robust environmental protection
- Temperature Range: 0 to 105 Degrees Celsius; UL/CSA Listed
Specifications
Application | Connects Flexible Metallic Liquidtight Conduit to a Box or Enclosure |
Color | Metallic |
Declaration of Conformity - CE | 9AKK107492A9904 |
Finish | None |
Insulation | True |
Material | 316 Stainless Steel with Duraplated Ground Cone |
NEMA Rating | 3;3R;4;4X |
Size | 3/4 Inch |
Special Features | Stronger and More UV-resistant than Nonmetallic Fittings |
Standard | UL E23018, CSA |
Temperature Rating, Maximum | 221 F |
Temperature Rating, Maximum | 105 C |
Temperature Rating, Minimum | 221 F |
Temperature Rating, Minimum | 105 C |
Type | 45 Degree Fitting for Flexible Metallic Conduit |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.3500 L |
Package Weight (Metric) | 0.1590 kg |
9355SST6-6
Liguid-tight 90 Degree Fitting, Trade Size 1-1/4 Inch, M40 Thread, 316 Stainless Steel Body and Ground Cone
5345SST6
1-1/4 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 3.90 Inches/99.06mm, Width 2.25 Inches/57.15mm, Height 2.86 Inches/72.64mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5344SST6
1 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 3.32 Inches/84.33mm, Width 1.87 Inches/47.50mm, Height 2.40 Inches/60.96mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5341SST6HT
3/8 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.18 Inches/55.37mm, Width 1.14 Inches/28.96mm, Height 1.43 Inches/36.32mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5346SST6
1-1/2 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 4.34 Inches/110.24mm, Width 2.56 Inches/65.02mm, Height 3.21 Inches/81.53mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5342SST6HT
1/2 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.37 Inches/60.20mm, Width 1.33 Inches/33.78mm, Height 1.76 Inches/44.70mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5347SST6
2 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 5.00 Inches/127.00mm, Width 3.05 Inches/77.47mm, Height 3.85 Inches/97.76mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5343SST6HT
3/4 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.70 Inches/68.58mm, Width 1.64 Inches/41.66mm, Height 2.10 Inches/53.34mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground ConeFrequently Asked Questions
What material is the ABB 5343SST6 fitting made from?
The ABB 5343SST6 fitting is constructed from 316 stainless steel with a Duraplated ground cone.
What is the operating temperature range for this liquidtight fitting?
The ABB 5343SST6 fitting has an operating temperature range of 0 to 105 degrees Celsius.
What NEMA ratings does the 5343SST6 fitting meet?
The ABB 5343SST6 fitting meets NEMA ratings of 3, 3R, 4, and 4X.
Is this ABB fitting suitable for corrosive environments?
Yes, the 5343SST6 is made of 316 stainless steel, offering high resistance to corrosion.
What is the conduit size for the 5343SST6 fitting?
The ABB 5343SST6 is a 3/4 inch liquidtight fitting for flexible metallic conduit.
Does the 5343SST6 fitting offer UV resistance?
Yes, the ABB 5343SST6 fitting is designed with high UV resistance.
How to Install the 5343SST6 Stainless Steel Liquid-Tight Conduit Fitting
This guide provides step-by-step instructions for assembling and installing the 5343SST6 stainless steel liquid-tight fitting with flexible metallic conduit, ensuring a secure and sealed connection for optimal performance.
Estimated time: 15m
Tools needed:
Hacksaw, Metal jig (optional), Wrench, Hammer, Standard screwdriver
Supplies needed:
5343SST6 Stainless Steel Liquid-Tight Fitting, Liquid-tight Flexible Metallic Conduit, LNSS/075 Locknut, 5263 Seal Gasket
- Prepare Conduit
Cut the end of the flexible conduit with a clean, square cut. Use a metal jig if available for precision. Employ a sharp hacksaw with a 32 Tooth/In. blade, or for high production, a power band saw with a 24-32 Tooth/In. blade operating at no more than 400 feet per minute. DO NOT USE AN ABRASIVE WHEEL, as it can damage the conduit.
- Assemble Fitting
First, slide the gland nut (part of the 5343SST6 fitting) onto the cut end of the flexible conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the SAFE-EDGE® ground cone into the conduit end until it is securely seated.
- Mount Fitting to Enclosure
For knockout applications, insert the main body of the 5343SST6 fitting through the prepared hole in the box wall. Place the Series 5263 seal gasket against the box wall on the outside, ensuring a liquid-tight seal. Then, secure the fitting from the inside with the LNSS/075 locknut. Hand-tighten the locknut, then further tighten it 1/4 turn with a hammer and a standard screwdriver or an equivalent method, as per UL, CSA, and NEMA recommendations. The recommended torque for the locknut is 110 lb-in (12.4 N-m).
- Secure Conduit to Fitting
Tighten the gland nut onto the fitting body, compressing the nylon sealing ring and securing the conduit. Tighten to the UL recommended value of 500 lb-in (56.5 N-m) for the 3/4" NPT fitting. Ensure the connection is firm and provides a liquid-tight and dust-tight seal.
