UPC: 786210052748
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview

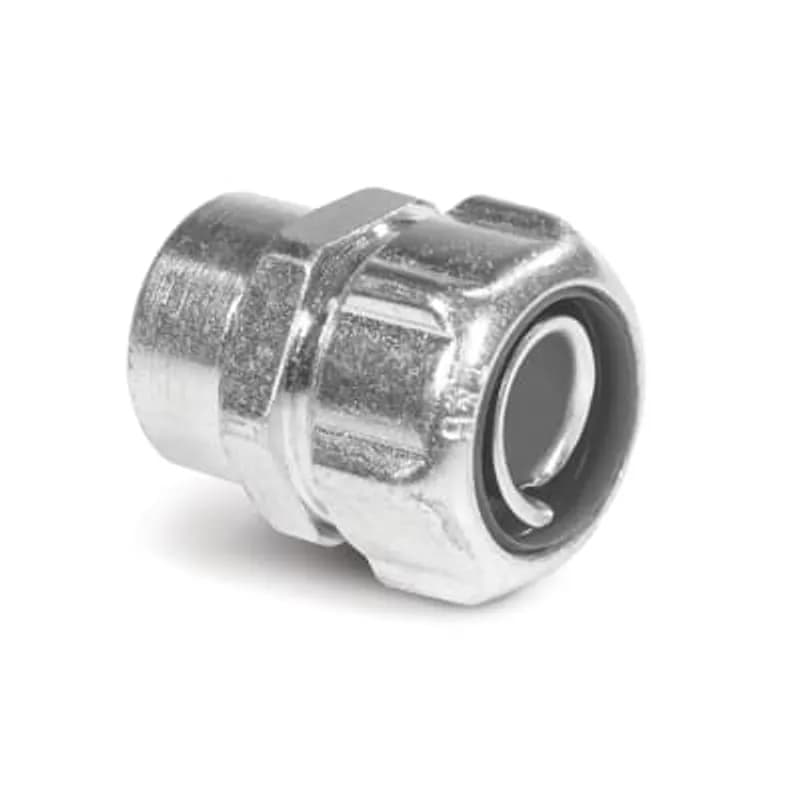

- 1 Inch nominal size for standard LFMC systems
- Steel construction for superior impact resistance and corrosion protection
- Female threaded hub for direct connection to male-threaded conduit or fittings
- Suitable for hazardous locations: Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2
- Ensures grounding continuity when used with bonded conduit systems
Specifications
Finish | Electro Zinc Plated/Chromate Coating |
Material | Steel |
Size | 1 Inch |
Standard | UL E23018, CSA |
Type | Connectors-Straight |
Package Dimensions (L x W x H) | 6 IN x 4 IN x 4 IN |
Package Dimensions (L x W x H) | 15.24 cm x 10.16 cm x 10.16 cm |
Package Weight (Imperial) | 0.3900 L |
Package Weight (Metric) | 0.1770 kg |
5347-8PT
2 Inch Liquidtight Flexible Metal Conduit Connector, 45 Degree Angle, Insulated, UL Listed Liquidtight, In Wet Locations Use 5267 Sealing Ring Between Box and Fitting for Knockout Applications, 1 Piece5353GRX
3/4 Inch External Bonding Liquidtight, Flexible Metal Conduit Connector, 90 Degree Angle, Insulated, With Copper Lug for #14 to #4 Ground Wire, for Use In Wer Locations, Pack of 10
7355
1 Inch 90 Degree Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 29
035-72775-14
1 Inch Straight Die Cast Zinc Liquidtight Strain Relief Cord Connector, Cord Range 0.375 to 0.500Frequently Asked Questions
What are the available trade sizes for these fittings?
The fittings are available in trade sizes from 3/8 in to 6 in (12mm to 153mm).
Can these fittings be used in wet or outdoor conditions?
Yes, they are used where liquid-tight flexible metallic raceway is installed in outdoor or indoor locations exposed to continuous or intermittent moisture.
What standards do these fittings conform to?
They conform to UL 514B, CSA C22.2 No. 18.3, IEC/EN 61386-1, -23, RoHS, NEMA FB-1, JIC EGP1, JIC EMP1, Federal Specification A-A 50552, and H-28.
Do these fittings require special gaskets for ingress protection?
Yes, ingress ratings require the use of Series 5260 Seal Gaskets.
Are the seal rings and insulators halogen free?
Yes, the seal rings, insulators, and seal gaskets are halogen free.
What types of fitting bodies are available?
Straight, 45°, and 90° fitting bodies are available, all with NPT threads.
Are these fittings suitable for hazardous locations?
Yes, they are suitable for Class I Division 2, Class II Division 1 & 2, and Class III Hazardous locations per NEC® and CE Code.
What ingress protection ratings do these fittings have?
The fittings have UL Type 3, 3R, 4, 6, 12, 13 ratings, CSA Type 3, 3R, 4, 12, 13, NEMA Type 3, 3R, 4, 6, 12, 13, and IEC IP66, IP67, IP68, IP69 ratings.
What materials are used for the fittings?
Trade sizes 3/8 in to 1 1/4 in are steel, and 1 1/2 in to 6 in are malleable iron, both with Zinc Chromate finish.
What is the operating temperature range for the fittings?
The general operating temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.
How to Install T&B Liquidtight Flexible Metallic Conduit Connectors
This guide provides step-by-step instructions for the proper installation of T&B liquidtight connectors with flexible metallic conduit, ensuring high performance and reliability.
Estimated time: 15m
Tools needed:
Hacksaw (32 Tooth/ln. no. set, sharp), Metal jig, Power band saw (24-32 Tooth/ln. wavy set), Smooth jaw wrench, Torque wrench, Hand protection (gloves), Eye protection (safety glasses)
Supplies needed:
Liquidtight flexible metallic conduit, T&B liquidtight connector (e.g., 5000, 7000, 9000, or 3300 series), T&B 140 series locknut, T&B 5260 series sealing gasket, PVC cement
- Prepare and Cut Flexible Conduit
Before starting, disconnect power to prevent risk of shock. Wear hand and eye protection. Cut the flexible conduit with a clean, square end. Use a metal jig or a sharp hacksaw with 32 teeth/inch. For high production, use a power band saw with 24-32 teeth/inch, not exceeding 400 feet/minute. Do not use an abrasive wheel.
- Assemble Connector Components
For 5000, 7000, 9000 series, and PVC coated 3300 series connectors, slide the gland nut onto the conduit, followed by the nylon sealing ring. Then, thread in the Safe Edge™ Cone. For PVC coated connectors, tighten with a smooth jaw wrench. If gouging occurs exposing metal, apply PVC cement.
- Install Connector into Box and Secure
Insert the connector body into the knockout box. For knockout applications, use T&B 140 series locknuts and 5260 series sealing gaskets (purchase separately). For 7000 and 9000 series, order the locknut separately. Tighten the gland nut to the specified torque (e.g., 200 lb-in for 3/8", 300 lb-in for 1/2", 500 lb-in for 3/4", 700 lb-in for 1", 1000 lb-in for 1 1/4", 1200 lb-in for 1 1/2", 1600 lb-in for 2" to 4"). Ensure the 'Box side' of the connector is correctly positioned on the outside of the box. For 'Space Saver' Chase® connector assemblies, lock-up by tightening the Chase® Nipple to the body or by turning the body onto the Chase® Nipple.
