UPC: 786210838281
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Overview

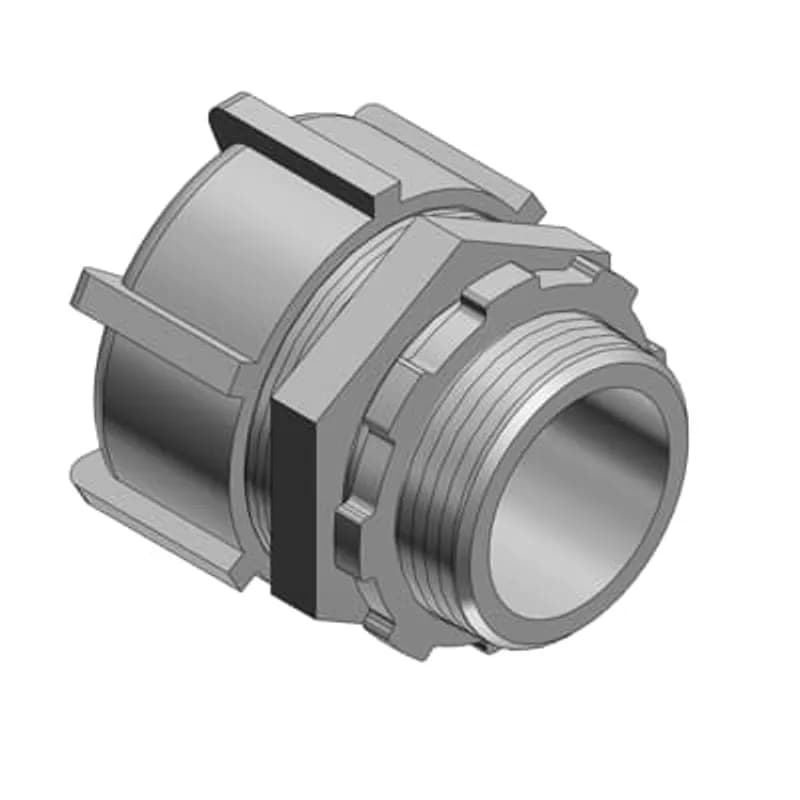

- Straight design for direct routing of liquidtight conduit
- Non-insulated aluminum construction for maximum conductivity
- 2-1/2 inch size for common conduit diameters
- Symmetrical shape ensures fool-proof assembly and reuse
- Compatible with liquidtight flexible metal conduit (LFMC) and liquidtight flexible nonmetallic conduit (LNFC)
Specifications
Application | High-quality, corrosion-resistant, liquidtight termination for LTA flexible aluminum conduit |
Declaration of Conformity - CE | 9AKK107492A9903 |
Finish | Zinc Plating/Clear Chromate |
Material | Aluminum |
Size | 2-1/2 Inch |
Standard | UL E23018, CSA |
Type | Connectors-Straight |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.5000 L |
Package Weight (Metric) | 0.6800 kg |
ST11/4SA-G
PVC Coated Liquitight Conduit Connector, Straight, Pipe Size 1-1/4 Inch/35 Metric, Minimum .040 Inch (40 mil) PVC Coating on Exterior, Aluminum Fitting, Dark Gray
5347-8PT
2 Inch Liquidtight Flexible Metal Conduit Connector, 45 Degree Angle, Insulated, UL Listed Liquidtight, In Wet Locations Use 5267 Sealing Ring Between Box and Fitting for Knockout Applications, 1 Piece5353GRX
3/4 Inch External Bonding Liquidtight, Flexible Metal Conduit Connector, 90 Degree Angle, Insulated, With Copper Lug for #14 to #4 Ground Wire, for Use In Wer Locations, Pack of 10
7355
1 Inch 90 Degree Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 29
Frequently Asked Questions
What conduits are compatible with this fitting?
The 5238AL fitting is ideal for use with LTAE and LTLE aluminum LT Flexible Metallic Conduits.
Is the 5238AL fitting halogen free?
Yes, the 5238AL fitting features halogen-free seal rings.
What certifications does the 5238AL fitting have?
The 5238AL fitting meets UL 514B, CSA C22.2 No. 18.3, and IEC 61386-1, -23 requirements, and is CE Certified. It also conforms to RoHS.
What is the maximum voltage for this fitting?
The 5238AL fitting is suitable for use in electrical circuits up to 1,000 V.
What is the operating temperature range for the fitting?
The working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA and -25 to +105°C (-13 to +221°F) for IEC/CE.
What material is the 5238AL fitting made from?
The 5238AL fitting is made from copper-free aluminum, with zinc-plated steel ground cones and thermoplastic nylon sealing rings.
What are the ingress protection ratings for this fitting?
The fitting has UL/CSA/NEMA Type 3, 3R, 4, 12, 13 ratings and IEC IP66, IP67 ingress protection ratings.
Can this fitting be used in hazardous locations?
Yes, it is suitable for use in Class 1 Division 2, Class 2 Division 1 & 2 Hazardous Locations per NEC® Section 500.
Which seal gasket is required for the 5238AL fitting?
The 5238AL fitting requires the use of Seal Gasket 5268 for proper ingress ratings.
What thread type does the 5238AL fitting use?
The 5238AL fitting uses NPT threads.
How to Install T&B Liquidtight Connectors for Flexible Metallic Conduit
This guide provides step-by-step instructions for properly installing T&B liquidtight connectors with flexible metallic conduit, ensuring high performance and reliability in accordance with electrical codes.
Estimated time: 30m
Tools needed:
Hacksaw or power band saw, Metal jig (for conduit cutting), Smooth jaw wrench, Torque wrench, Safety glasses, Work gloves
Supplies needed:
T&B liquidtight connector, Liquidtight flexible metallic conduit, Locknuts (if not included or for knockout applications), Sealing gaskets (for knockout applications), PVC cement (optional)
- Review Safety Information and Disconnect Power
Before beginning installation, read and understand all instructions and safety information. Disconnect all power to the electrical system to prevent risk of shock. Ensure the installation is performed by a qualified electrician in accordance with national and local electrical codes. Wear appropriate hand and eye protection.
- Prepare the Flexible Conduit
Cut the flexible metallic conduit with a clean, square end cut. For best results, use a metal jig, a sharp hacksaw with 32 teeth per inch, or a power band saw with 24-32 teeth per inch at no more than 400 feet per minute. Do not use an abrasive wheel for cutting.
- Assemble the Liquidtight Connector Components
For 5000, 7000, 9000 series, and PVC coated 3300 series connectors, first slide the gland nut onto the conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the Safe Edge™ Cone into the connector body. For PVC coated connectors, tighten with a smooth jaw wrench; if gouging occurs exposing metal, apply PVC cement.
- Install Connector to Electrical Box or Enclosure
Insert the connector body through the knockout hole in the electrical box or enclosure. For knockout applications, use T&B® 140 series locknuts and 5260 series sealing gaskets (purchase separately). Secure the connector by tightening the locknut onto the connector body from inside the box. Refer to the torque table for recommended tightening torque values (e.g., 200 lb-in for 3/8" fitting, up to 1600 lb-in for 2-4" fittings) to ensure a liquidtight seal.
