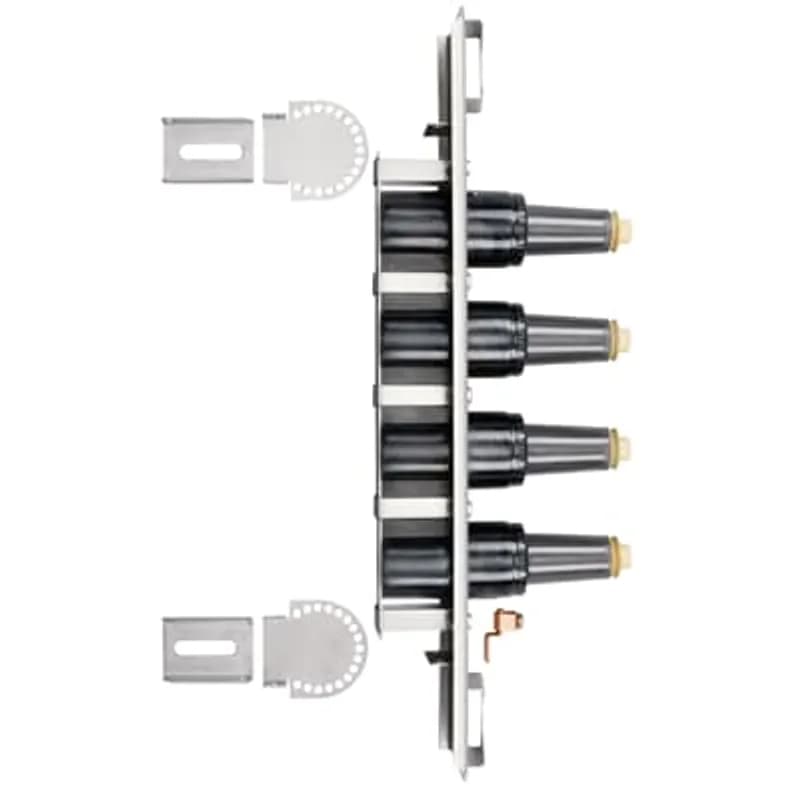

ABB Installation Products 373J4 35kV 200 Amp, Loadbreak 4-Point Junction with Stainless Steel Bracket
UPC: 783786641055
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35kV voltage class with 200 Amp continuous and loadbreak rating
- Fully shielded, fully submersible molded rubber housing with conductive EPDM materials
- 4-way junction for sectionalizing, looping, tapping, and equipment bypass
- Stainless steel bracket for secure mounting on flat or curved surfaces (0°–90° tilt)
- Meets ANSI/IEEE Standard 386 with 150kV BIL impulse withstand rating
Specifications
Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass |
Current Rating | 200 A |
Material | EPDM-Rubber with Stainless Steel Bracket |
Size | 4.00 inch (101.6 mm) Center to Center, 9.6 inch (243.8 mm) High, 3.60 inch (91.4 mm) wide |
Special Features | 35kV, 200 Amp Loadbreak 4-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions. Rated for 3 Phase switching. Includes black vent ring |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 4-Point Junction |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 21.5100 L |
Package Weight (Metric) | 9.7570 kg |
L1601PC-S2-CK3H
35kv, 200 Amp Loadbreak Bushing Clamp and Gasket Kit - 3 Holes, for use on Bushing Well without Bail Tabs. Equipped with Copper Conductor Rod. Molded Epoxy Flange for Gasketed Clamp Mounting. Includes Epoxy Bushing Well, Clamp, Gasket and Instruction Sheet.
373FT2-AB
35kV 200 Amp, Loadbreak Adjustable Bracket 2-Point Feed-Thru, with stainless steel bracket.
373FT3-AB
35kV 200 Amp, Loadbreak Adjustable Bracket 3-Point Feed-Thru, with stainless steel bracket.
373FT4-AB
35kV 200 Amp, Loadbreak Adjustable Bracket 4-Point Feed-Thru, with stainless steel bracket.
Frequently Asked Questions
What is the model number for this product?
The product model number is 373J4, which is a 35kV 200A Loadbreak 4-Way Junction.
Is the 373J4 junction submersible?
Yes, the 373J4 features a fully shielded, fully submersible molded rubber housing.
What is included in the 373J4 kit?
Each kit contains one basic molded junction 373J4, two protective shipping caps 2701-41, two tubes of lubricant 82-08, and one installation instruction IS-0078.
What is the DC 15-minute withstand voltage?
The DC 15-minute withstand voltage is 103kV.
What is the AC one-minute withstand voltage?
The AC one-minute withstand voltage is 50kV.
What is the impulse withstand rating (BIL)?
The impulse withstand (BIL) rating is 150kV (1.2 x 50 microsecond wave).
What other ELASTIMOLD products are compatible with the junction?
It mates with Elastimold® Elbow connectors, 375/376LR Elbow Connector, 370 Grounding Elbow, 370TR Test Rod, and 375DR/376DRG Insulated Cap.
What standards does the 373J4 junction meet?
The 373J4 junction meets ANSI/IEEE Standard 386, Latest Revision.
What is the continuous and loadbreak current rating?
The 373J4 is rated for 200 Amp continuous and loadbreak operation.
What is the maximum phase-to-phase voltage?
The maximum phase-to-phase voltage for the 373J4 is 36.6kV.
How to Install 373 J2, J3, J4 Loadbreak Junctions
Complete installation guide for universal mounting of two-, three-, and four-point loadbreak junctions on flat or curved surfaces, with adjustable mounting angles from 0 to 90 degrees. Ensure all apparatus is de-energized before beginning installation to prevent serious injury or death.
Estimated time: 1h
Tools needed:
Wrench or socket set, Wire strippers, Hotstick (for voltage test), Suitable voltage sensing device (for capacitance test points)
Supplies needed:
Lubricant (supplied with junction), Mounting bolts (17/32 inch / 13mm diameter, user-supplied), Grounding wire (No. 10 Solid to No. 1 Stranded), HV insulated cap(s) or connector(s) (for unused interfaces)
- Prepare for Installation and Safety Check
DANGER: All apparatus must be de-energized during installation or removal of parts. Inspect all components for damage, proper rating, and compatibility with mating parts. Check the package contents to ensure completeness and read all instructions before starting. Have all required tools at hand and maintain cleanliness throughout the procedure.
- Position and Mark Mounting Brackets
Loosely attach the universal mounting brackets to the junction back plate. Place the entire assembly against the desired mounting surface (flat or curved wall). Adjust the brackets for proper alignment and mark their exact location on the wall for later mounting.
- Mount Brackets to Wall
Detach the universal mounting brackets from the junction back plate. Mount the brackets securely on the wall according to the marks made in Step 2. Note that one or both brackets can be inverted to adjust the distance between bolt centers. Use user-supplied bolts that fit the 17/32 inch (13mm) diameter holes.
- Attach Junction Assembly to Brackets
With the universal mounting brackets securely fastened to the wall, attach the junction back plate (with the junction already attached) to the mounting brackets. Ensure that the parking stands are in the upright position during this process.
- Adjust Mounting Angle
Adjust the mounting angle of the junction to the desired position. The mounting angle is adjustable from 0 to 90 degrees, either above or below the horizontal, in 15-degree increments.
- Secure All Bolts
Tighten all bolts securely to ensure there is no movement of the junction assembly during operation. Verify that all connections are firm and stable.
- Ground the Back Plate
Ground the back plate of the junction. A grounding lug is provided for this purpose, which accommodates grounding wire sizes from No. 10 Solid to No. 1 Stranded. Ensure a proper and secure ground connection.
- Install Mating Products and Cap Unused Interfaces
Thoroughly wipe the bushing interface clean of any contaminants and lubricate it with the supplied lubricant. Install the mating products (e.g., elbow connectors) to the bushing insert following their specific installation instructions. WARNING: If all operating interfaces are not utilized, an Elastimold 375DR insulated cap or appropriate HV insulated connector MUST be installed on the unused interface(s) before energization. Do NOT use protective shipping covers for this function.
- Perform Voltage Test (Post-Installation)
If performing a voltage test, remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device; do not use conventional voltage measuring equipment. Use a suitable sensing device designed for capacitive test points and follow its manufacturer’s directions. Contamination or incorrect equipment can give a false 'no voltage' indication. Treat the elbow as energized until confirmed by other means. After testing, clean and lubricate the inside surface of the cap with silicone grease and replace it on the test point.
